Search › Model › CXM10

CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

4,816 items

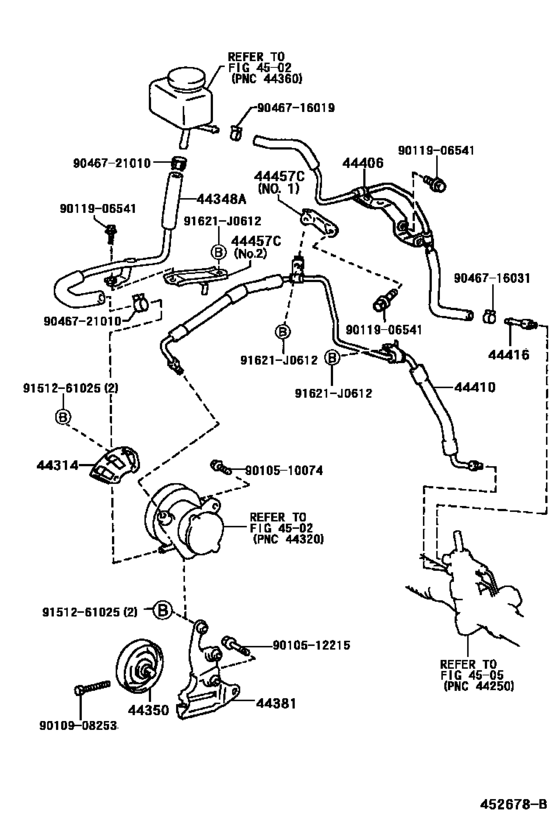

Power Steering Tube ([04.2001 - ] (0104- )CXM10) 22

#	OEM	Part name
44314	44314-44010	Cover, Pulley
44348	44348-44030	Hose, Oil Reservoir To Pump, No.1
44348	44348-44031	Hose, Oil Reservoir To Pump, No.1
44350	44350-20060	Pulley Assy, Power Steering Idle
44381	44381-20030	Bracket, Power Steering Idle Pulley
44406	44406-44060	Tube Sub-Assy, Return
44410	44410-44050	Tube Assy, Pressure Feed
44410	91621-J0612	BOLT W-WASHER
44410	44410-44051	Tube Assy, Pressure Feed
44410	44457-44011	Bracket, Power Steering Tube Support, No.1
44416	44416-20220	Tube, Return(For Steering Gear Outlet)
44457	44457-44010	Bracket, Power Steering Tube Support, No.1
44457	44457-44020	Bracket, Power Steering Tube Support, No.1
9010510074	90105-10074	Bolt(For Body Mounting No.1 Cushion)
9010512215	90105-12215	New Genuine Part
9010908253	90109-08253	Bolt, Idle Pulley
9011906541	90119-06541	New Genuine Part
9046716019	90467-16019	Clip(For Return No.1)
9046716031	90467-16031	CLIP
9046721010	90467-21010	Clip(For Ventilation Hose No.2)
9151261025	91512-61025	BOLT WASHER BASED H
9151261025	91512-G1025	BOLTFLANGE

OEM	Part name	Category
44314-44010	Cover, Pulley	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44348-44030	Hose, Oil Reservoir To Pump, No.1	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44348-44031	Hose, Oil Reservoir To Pump, No.1	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44350-20060	Pulley Assy, Power Steering Idle	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44381-20030	Bracket, Power Steering Idle Pulley	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44406-44060	Tube Sub-Assy, Return	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44410-44050	Tube Assy, Pressure Feed	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44410-44051	Tube Assy, Pressure Feed	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44416-20220	Tube, Return(For Steering Gear Outlet)	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44457-44010	Bracket, Power Steering Tube Support, No.1	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44457-44011	Bracket, Power Steering Tube Support, No.1	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
44457-44020	Bracket, Power Steering Tube Support, No.1	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
90105-10074	Bolt(For Body Mounting No.1 Cushion)	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
90105-12215	New Genuine Part	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
90109-08253	Bolt, Idle Pulley	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
90119-06541	New Genuine Part	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
90467-16019	Clip(For Return No.1)	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
90467-16031	CLIP	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
90467-21010	Clip(For Ventilation Hose No.2)	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
91512-61025	BOLT WASHER BASED H	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
91512-G1025	BOLTFLANGE	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
91621-J0612	BOLT W-WASHER	Power Steering Tube ([04.2001 - ] (0104- )CXM10)
