CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories
CXM10 ×

← Back to categories

4,816 items

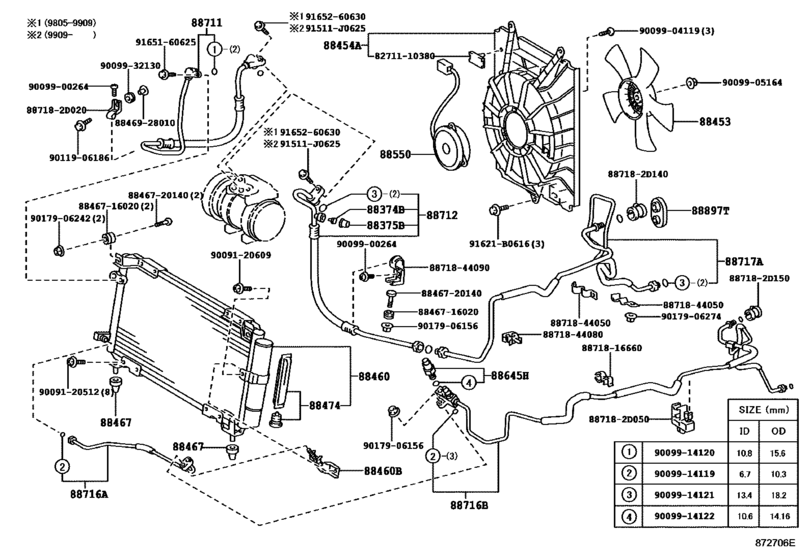

Heating & Air Conditioning - Cooler Piping ([05.1998 - 04.2001] ﾌﾛﾝﾄ (9805-0104)CXM10) 55
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88453 16361-64100 Fan, Cooling (For Condenser)
88454 16711-64470 Shroud, Fan
88460 88460-44320 Condenser Assy, Cooler
88460 88688-44110 Bracket, Cooler Condenser, No.1
88467 88467-20190 Cushion, Cooler Condenser, No.1
88467 88467-32060 Cushion, Cooler Condenser, No.1
88474 88474-22010 Dryer, Cooler
88474 88474-47010 Dryer, Cooler
88550 16363-64180 Motor Assy, Blower (For Condenser)
88550 16363-64210 Motor Assy, Blower (For Condenser)
88645 88645-36050 Switch, Pressure No.1
88711 88711-44150 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-44220 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-44160 Hose, Cooler Refrigerant Suction, No.1
88712 88712-44320 Hose, Cooler Refrigerant Suction, No.1
88712 88704-44220 Hose Sub-Assy, Suction
88716 88716-44210 Pipe, Cooler Refrigerant Liquid, A
88716 88716-44240 Pipe, Cooler Refrigerant Liquid, B
88717 88717-44100 Pipe, Cooler Refrigerant Suction, A
88717 88710-44250 Tube Assy, Air Conditioner
88897 88897-44010 Grommet, Cooler
91511 91511-J0625 Bolt(For Cylinder Head Cover)
91621 91621-B0616 Bolt
887182 88718-2D020 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2D050 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8271110380 82711-10380 Wire, Fuse To Fuse(for Combustion Heater)
8846716020 88467-16020 Cushion, Cooler Condenser, No.2
8846720140 88467-20140 Cushion, Cooler Condenser, No.1
8846928010 88469-28010 Collar, Condenser Bracket, No.1
8871816660 88718-16660 Pipe, Cooler Refrigerant Suction, No.2
8871844050 88718-44050 Pipe, Cooler Refrigerant Suction, No.2
8871844080 88718-44080 Pipe, Cooler Refrigerant Suction, No.2
8871844090 88718-44090 Pipe, Cooler Refrigerant Suction, No.2
9009120512 90091-20512 BOLT WWASHER
9009120609 90091-20609 BOLT
9009900264 90099-00264 SCREW
9009904119 90099-04119 BOLT WASHER HEAD
9009905164 90099-05164 Nut
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
9009932130 90099-32130 Grommet (For Power Take-Off Cable Bracket)
9011906186 90119-06186 BOLT
9011906186 90119-06420 BOLT WWASHER
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017906242 90179-06242 Direct
9017906242 90179-06274 Nut
9165160625 91651-60625 New Genuine Part
9165260630 91652-60630 New Genuine Part
