| 16361-64100 |
Fan, Cooling (For Condenser) |

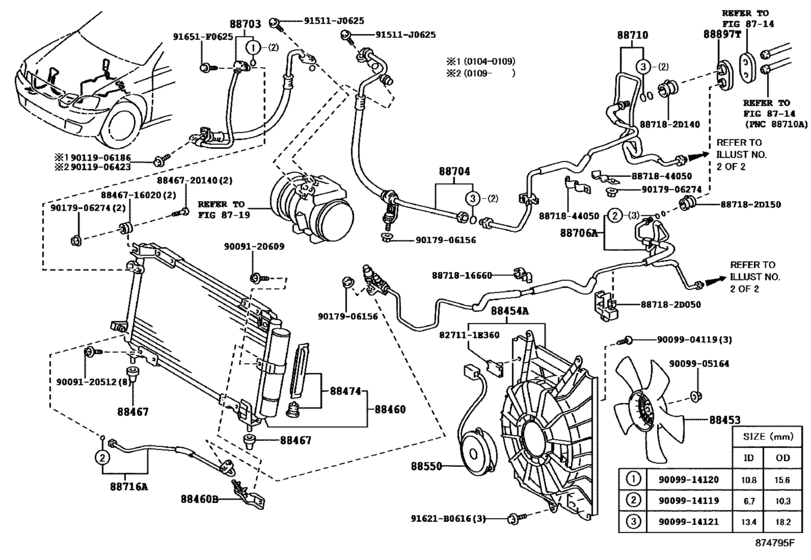

Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 16363-64180 |
Motor Assy, Blower (For Condenser) |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 16363-64210 |
Motor Assy, Blower (For Condenser) |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 16711-64470 |
Shroud, Fan |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 82711-1E360 |
Clamp, Wiring Harness |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88460-44320 |
Condenser Assy, Cooler |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88467-16020 |
Cushion, Cooler Condenser, No.2 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88467-20140 |
Cushion, Cooler Condenser, No.1 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88467-20190 |
Cushion, Cooler Condenser, No.1 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88467-32060 |
Cushion, Cooler Condenser, No.1 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88474-22010 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88474-47010 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88688-44110 |
Bracket, Cooler Condenser, No.1 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88703-44240 |
Hose Sub-Assy, Discharge |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88703-44350 |
Hose Sub-Assy, Discharge |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88704-44220 |
Hose Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88710-44250 |
Tube Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88710-44590 |
Tube Sub-Assy, Liquid, A |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88716-44210 |
Pipe, Cooler Refrigerant Liquid, A |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88718-16660 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88718-2D050 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88718-2D140 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88718-2D150 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88718-44050 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 88897-44010 |
Grommet, Cooler |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90091-20512 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90091-20609 |
BOLT |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90099-04119 |
BOLT WASHER HEAD |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90099-05164 |
Nut |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90119-06186 |
BOLT |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90119-06420 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90119-06423 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90179-06156 |
Nut (For Transmission Control Cable) |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 90179-06274 |
Nut |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 91511-J0625 |
Bolt(For Cylinder Head Cover) |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 91621-B0616 |
Bolt |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
| 91651-F0625 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Piping ([04.2001 - ] ﾌﾛﾝﾄ (0104- )CXM10) |
