Search › Model › CXM10

CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories
CXM10 ×

← Back to categories

4,816 items

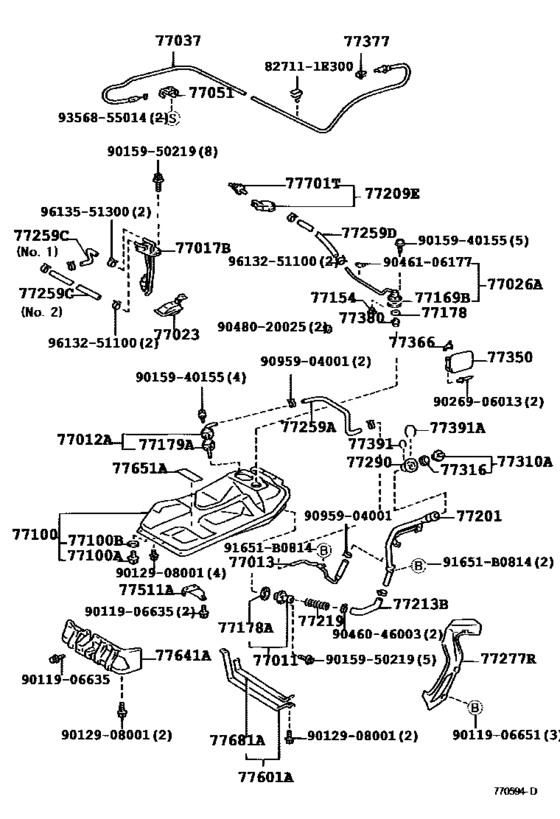

Fuel Tank & Tube ([05.1998 - ] (9805- )CXM10) 74
#OEMPart name
77011 77011-28010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-44020 Tube Sub-Assy, Fuel Tank Breather, No.1
77013 77013-44010 Tube Sub-Assy, Fuel Tank Breather, No.2
77017 77017-44010 Tube Sub-Assy, Fuel Tank Vent
77017 77017-44020 Tube Sub-Assy, Fuel Tank Vent
77023 77023-32040 Filter Sub-Assy, Fuel Suction Tube
77026 77026-44020 Tube Sub-Assy, Fuel Evaporation, No.1
77037 77037-44010 Lock Sub-Assy, Fuel Filler Opening Lid
77051 77051-44010-B1 Lever Sub-Assy, Fuel Lid Open
77051 77051-44010-B3 Lever Sub-Assy, Fuel Lid Open
77051 77051-44010-E0 Lever Sub-Assy, Fuel Lid Open
77100 77001-44020 Tank Assy, Fuel
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77154 77154-44010 Plate, Fuel Tank Evap/vent Tube Support
77169 77169-14020 Gasket, Fuel Tank Vent
77178 77178-44010 Gasket, Fuel Tank Vent
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-14030 Retainer, Fuel Tank Mounting, Front
77201 77201-44020 Pipe Sub-Assy, Fuel Tank Inlet
77209 77209-44020 Hose Sub-Assy, Fuel Emission
77213 77213-44010 Hose, Fuel Tank To Filler Pipe
77219 77219-44010 Cover, Fuel Tank Filler Pipe
77241 77259-44020 Hose, Fuel, No.1 (For Main Tube, No.1)
77251 77251-44040 Tube, Fuel Main
77255 77255-44040 Tube, Fuel Return
77259 77049-44010 Hose, Fuel(For Breather Tube)
77259 77259-44040 Hose, Fuel
77259 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77259 95337-06020 Hose, Differential Pressure Control
77259 95333-06060 Hose, Fuel
77277 77277-44010 Protector, Fuel Tank Filler Pipe
77285 77285-44090 Clamp, Fuel Tube, No.1
77285 77285-44120 Clamp, Fuel Tube, No.1
77285 77285-44130 Clamp, Fuel Tube, No.1
77285 77285-44140 Clamp, Fuel Tube, No.1
77285 77285-44150 Clamp, Fuel Tube, No.1
77289 77289-44010 Clamp, Fuel Tube, No.3
77290 77291-44011 Shield Assy, Fuel Tank Filler Pipe
77298 77298-44020 Clamp, Fuel Tube, No.4
77310 77310-12150 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-44020 Lid Assy, Fuel Filler Opening
77366 77360-44010 Spring, Fuel Filler Opening Lid Hinge
77366 77360-44020 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-44010 Ring, Fuel Inlet Box
77511 77511-44010 Bracket, Fuel Tank
77601 77601-44010 Band Sub-Assy, Fuel Tank, No.1
77641 77641-44010 Protector, Fuel Tank, No.1
77651 77651-44010 Packing, Fuel Tank Bracket
77681 77681-32060 Seat, Fuel Tank Band, Rh
77701 90917-10067 Valve, Check (For Main Fuel Tank)
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011906635 90119-06635 New Genuine Part
9011906651 90119-06651 BOLT WWASHER
9012908001 90129-08001 BOLT WWASHER
9015940155 90159-40155 SCREW WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9026906013 90269-06013 RIVET
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046106177 90461-06177 New Genuine Part
9048020025 90480-20025 New Genuine Part
9095904001 90959-04001 Clip, Fuel Hose
9356855014 93568-55014 Screw
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613551300 96135-51300 Clamp, Hose
9223372036854775807 82711-1E300 Clamp, Wiring Harness
