Search › Model › CXM10

CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

4,816 items

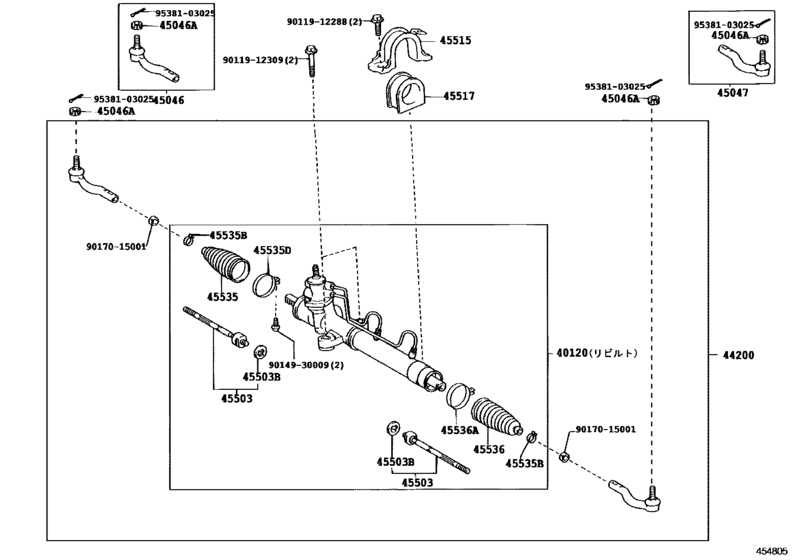

Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10) 22

#	OEM	Part name
40120	40120-44050	Gear Assy,power Steering,rebuilt
40120	40120-44240	Gear Assy,power Steering,rebuilt
44200	44200-44290	Link Assy, Power Steering
45046	45046-29335	End Sub-Assy, Tie Rod, Rh
45046	90171-12028	Nut, Castle(For Pitman Arm)
45047	45047-29105	End Sub-Assy, Tie Rod, Lh
45503	45503-29615	End Sub-Assy, Steering Rack
45503	90214-14002	Washer, Claw(For Power Steering Rack End)
45515	45515-20150	Bracket, Steering Rack Housing, No.2
45517	45517-44010	Grommet, Steering Rack Housing, No.2
45517	45517-44030	Grommet, Steering Rack Housing, No.2
45535	45535-20190	Boot, Steering Rack, No.1
45535	90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)
45535	90460-49002	Clamp(For Power Steering Rack Boot)
45535	90460-49004	Clamp(For Steering Rack Boot No.1)
45536	45535-20170	Boot, Steering Rack, No.2
45536	90460-52001	Clamp(For Power Steering Rack Boot)
9011912288	90119-12288	Bolt
9011912309	90119-12309	New Genuine Part
9014930009	90149-30009	Screw(For Steering Rack Boot Clamp)
9017015001	90170-15001	Nut, Rack End Lock
9538103025	95381-03025	PIN

OEM	Part name	Category
40120-44050	Gear Assy,power Steering,rebuilt	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
40120-44240	Gear Assy,power Steering,rebuilt	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
44200-44290	Link Assy, Power Steering	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
45046-29335	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
45047-29105	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
45503-29615	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
45515-20150	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
45517-44010	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
45517-44030	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
45535-20170	Boot, Steering Rack, No.2	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
45535-20190	Boot, Steering Rack, No.1	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90119-12288	Bolt	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90119-12309	New Genuine Part	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90149-30009	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90170-15001	Nut, Rack End Lock	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90460-49002	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90460-49004	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90460-52001	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)
95381-03025	PIN	Front Steering Gear & Link ([08.2003 - ] (0308- )ACM10,CXM10)

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 234
Collected: 2026-08-03
