CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

← Back to categories

4,816 items

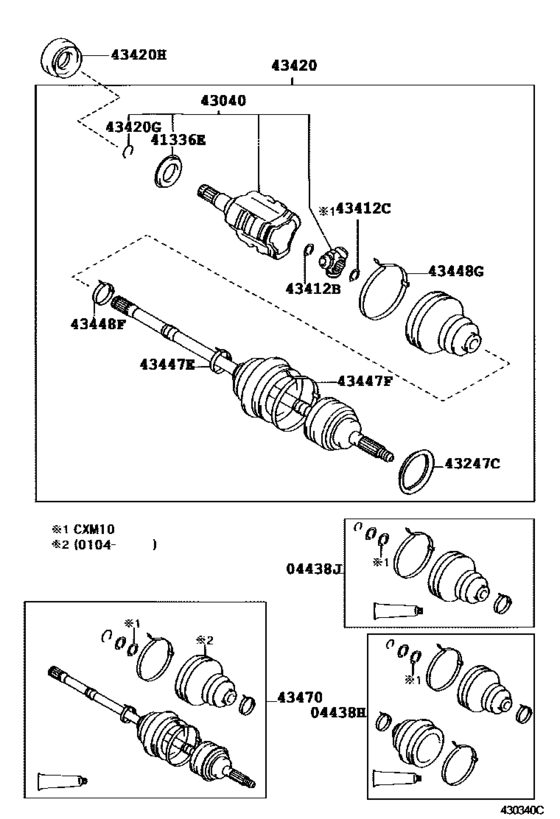

Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10) 17

#	OEM	Part name
4438	04438-44040	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04438-44030	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-32020	Cover, Dust(For Differential Side Gear Shaft)
43040	43040-44010	Joint Assy, Front Drive Inboard, Lh
43247	43247-12010	Deflector, Rear Wheel Bearing Dust, No.1
43412	90520-23056	Ring, Shaft Snap (For Power Take-Off Idler Shaft)
43412	90520-71002	Ring, Hole Snap (For Front Drive Inboard Joint Rh)
43420	43420-44021	Shaft Assy, Front Drive, Lh
43420	90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43420	90311-35020	Seal, Oil, No.2(For Transaxle Case)
43420	90311-35047	Oil Seal, Front Drive Shaft, Lh
43447	90949-01A65	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	90949-01937	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	90949-01108	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448	42346-22010	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43470	43470-49066	Shaft Assy, Front Drive Outboard Joint, Lh
43470	43470-49067	Shaft Assy, Front Drive Outboard Joint, Lh

OEM	Part name	Category
04438-44030	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
04438-44040	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
41336-32020	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
42346-22010	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
43040-44010	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
43247-12010	Deflector, Rear Wheel Bearing Dust, No.1	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
43420-44021	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
43470-49066	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
43470-49067	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
90311-35020	Seal, Oil, No.2(For Transaxle Case)	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
90311-35047	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
90520-23056	Ring, Shaft Snap (For Power Take-Off Idler Shaft)	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
90520-71002	Ring, Hole Snap (For Front Drive Inboard Joint Rh)	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
90949-01108	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
90949-01937	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
90949-01A65	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([05.1998 - ] LH (9805- )CXM10,SXM10)
