Search › Model › CXM10

CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

4,816 items

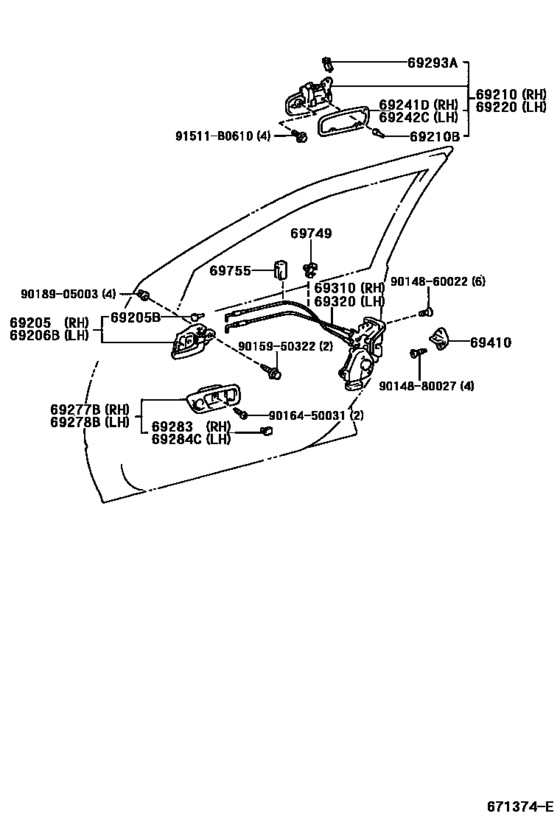

Front Door Lock & Handle ([05.1998 - ] (9805- )) 38

#	OEM	Part name
69205	69205-28090-A0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-44010-E0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04014	Cushion, Console Box
69206	69206-28060-A0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-44010-E0	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-44010	Handle Assy, Front Door, Outside Rh
69210	90541-04018	Cushion(For Front Door Inside Handle)
69220	69220-44010	Handle Assy, Front Door Outside, Lh
69241	69241-12100	Pad, Front Door Outside Handle, Rh
69242	69242-12050	Pad, Front Door Outside Handle, Lh
69277	69277-22090-A1	Bezel, Front Door Inside Handle, Rh
69277	69277-30150-E2	Bezel, Front Door Inside Handle, Rh
69277	69277-44010-E0	Bezel, Front Door Inside Handle, Rh
69277	69277-44090-A0	Bezel, Front Door Inside Handle, Rh
69278	69278-22050-A1	Bezel, Front Door Inside Handle, Lh
69278	69278-30080-E2	Bezel, Front Door Inside Handle, Lh
69278	69278-44010-E0	Bezel, Front Door Inside Handle, Lh
69278	69278-44090-A0	Bezel, Front Door Inside Handle, Lh
69283	69283-30040-A1	Plug, Front Door Inside Handle Bezel, Rh
69283	69283-30040-E2	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-30040-A1	Plug, Front Door Inside Handle Bezel, Lh
69284	69284-30040-E2	Plug, Front Door Inside Handle Bezel, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69310	69030-44040	Lock Assy, Front Door, Rh
69310	69030-44120	Lock Assy, Front Door, Rh
69320	69040-44040	Lock Assy, Front Door, Lh
69320	69040-44110	Lock Assy, Front Door, Lh
69410	69410-20110	Plate Assy, Front Door Lock Striker
69749	69749-30050	Clamp, Front Door Lock Link
69755	69759-44030	Silencer, Front Door Lock Link
91511	91511-B0610	BOLT FLANGE
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880027	90148-80027	Screw Hex Lobular
9015950322	90159-50322	SCREW WWASHER
9016450031	90164-50031	SCREW BINDING
9018905003	90189-05003	CLIP

OEM	Part name	Category
69030-44040	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69030-44120	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69040-44040	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69040-44110	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69205-28090-A0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69205-44010-E0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69206-28060-A0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69206-44010-E0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69210-44010	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69220-44010	Handle Assy, Front Door Outside, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69241-12100	Pad, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69242-12050	Pad, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69277-22090-A1	Bezel, Front Door Inside Handle, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69277-30150-E2	Bezel, Front Door Inside Handle, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69277-44010-E0	Bezel, Front Door Inside Handle, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69277-44090-A0	Bezel, Front Door Inside Handle, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69278-22050-A1	Bezel, Front Door Inside Handle, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69278-30080-E2	Bezel, Front Door Inside Handle, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69278-44010-E0	Bezel, Front Door Inside Handle, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69278-44090-A0	Bezel, Front Door Inside Handle, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69283-30040-A1	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69283-30040-E2	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69284-30040-A1	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69284-30040-E2	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69410-20110	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69749-30050	Clamp, Front Door Lock Link	Front Door Lock & Handle ([05.1998 - ] (9805- ))
69759-44030	Silencer, Front Door Lock Link	Front Door Lock & Handle ([05.1998 - ] (9805- ))
90148-60022	BOLT	Front Door Lock & Handle ([05.1998 - ] (9805- ))
90148-80027	Screw Hex Lobular	Front Door Lock & Handle ([05.1998 - ] (9805- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([05.1998 - ] (9805- ))
90159-50322	SCREW WWASHER	Front Door Lock & Handle ([05.1998 - ] (9805- ))
90164-50031	SCREW BINDING	Front Door Lock & Handle ([05.1998 - ] (9805- ))
90189-05003	CLIP	Front Door Lock & Handle ([05.1998 - ] (9805- ))
90541-04014	Cushion, Console Box	Front Door Lock & Handle ([05.1998 - ] (9805- ))
90541-04018	Cushion(For Front Door Inside Handle)	Front Door Lock & Handle ([05.1998 - ] (9805- ))
91511-B0610	BOLT FLANGE	Front Door Lock & Handle ([05.1998 - ] (9805- ))
