Search › Model › CXM10

CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

4,816 items

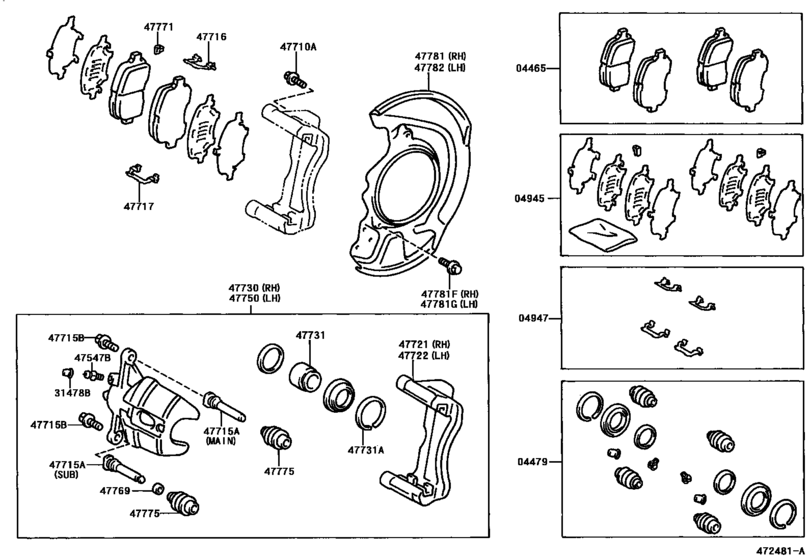

Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- )) 53

#	OEM	Part name
4465	04465-33120	Pad Kit, Disc Brake, Front
4465	04465-33121	Pad Kit, Disc Brake, Front
4465	04465-44030	Pad Kit, Disc Brake, Front
4479	04479-44010	Cylinder Kit, Disc Brake, Front
4479	04479-44040	Cylinder Kit, Disc Brake, Front
4479	04479-44050	Cylinder Kit, Disc Brake, Front
4945	04945-33040	Shim Kit, Anti Squeal, Front
4945	04945-44010	Shim Kit, Anti Squeal, Front
4945	04945-44030	Shim Kit, Anti Squeal, Front
4947	04947-33040	Fitting Kit, Disc Brake, Front
4947	04947-33160	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47547	47547-27030	Plug, Bleeder(For Front Disc Brake)
47710	90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47714-48050	Pin, Front Disc Brake Cylinder Slide
47715	47715-22070	Pin, Front Disc Brake Cylinder Slide
47715	47715-22080	Pin, Front Disc Brake Cylinder Slide
47715	47715-48010	Pin, Front Disc Brake Cylinder Slide
47715	47815-48090	Pin, Rear Cylinder Slide, No.2(For Rear Disc Brake)
47715	47715-48020	Pin, Front Disc Brake Cylinder Slide
47715	47715-48050	Pin, Front Disc Brake Cylinder Slide
47715	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47715	90105-08346	Bolt(For Front Disc Brake Cylinder Slide)
47716	47716-33010	Plate, Pad Support, No.1(For Front Disc Brake)
47716	47716-33080	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47716-33020	Plate, Pad Support, No.2(For Front Disc Brake)
47717	47717-33070	Plate, Pad Support, No.2(For Front Disc Brake)
47721	47721-33080	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-33081	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-44010	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-44010	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-33120	Cylinder Assy, Front Disc Brake, Rh
47730	47730-33161	Cylinder Assy, Front Disc Brake, Rh
47730	47730-44010	Cylinder Assy, Front Disc Brake, Rh
47731	47731-33050	Piston, Front Disc Brake
47731	47731-44010	Piston, Front Disc Brake
47731	90522-66001	Ring, Set(For Front Disc Brake Piston)
47731	90522-67001	Ring, Set(For Front Disc Brake Piston)
47750	47750-33120	Cylinder Assy, Disc Brake, Lh
47750	47750-33161	Cylinder Assy, Disc Brake, Lh
47750	47750-44010	Cylinder Assy, Disc Brake, Lh
47769	47769-33020	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47769	47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-33010	Plate, Pad Wear Indicator, No.1
47775	47775-30070	Boot, Bush Dust(For Front Disc Brake)
47775	47775-50010	Boot, Bush Dust(For Front Disc Brake)
47775	47775-33020	Boot, Bush Dust(For Front Disc Brake)
47781	47781-33010	Cover, Disc Brake Dust, Front Rh
47781	47781-33020	Cover, Disc Brake Dust, Front Rh
47781	90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782	47782-33010	Cover, Disc Brake Dust, Front Lh
47782	47782-33020	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-33120	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04465-33121	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04465-44030	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04479-44010	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04479-44040	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04479-44050	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04945-33040	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04945-44010	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04945-44030	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04947-33040	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
04947-33160	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47547-27030	Plug, Bleeder(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47714-48050	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47715-22070	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47715-22080	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47715-48010	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47715-48020	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47715-48050	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47716-33010	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47716-33020	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47716-33080	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47717-33070	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47721-33080	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47721-33081	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47721-44010	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47722-44010	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47730-33120	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47730-33161	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47730-44010	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47731-33050	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47731-44010	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47750-33120	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47750-33161	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47750-44010	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47769-33020	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47771-33010	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47775-30070	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47775-33020	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47775-50010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47781-33010	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47781-33020	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47782-33010	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47782-33020	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
47815-48090	Pin, Rear Cylinder Slide, No.2(For Rear Disc Brake)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
90105-08346	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
90522-66001	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
90522-67001	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([04.2001 - ] (0104- ))
