Search › Model › CXM10

CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

4,816 items

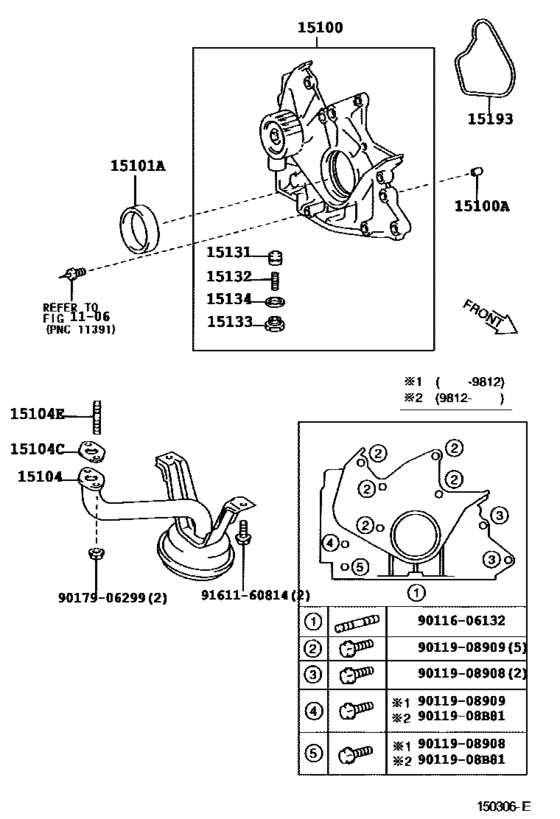

Engine Oil Pump ([05.1998 - ] (9805- )3CTE) 23

#	OEM	Part name
15100	15100-64040	Pump Assy, Oil
15100	15100-64042	Pump Assy, Oil
15100	90119-08B81	New Genuine Part
15100	15100-64041	Pump Assy, Oil
15100	90253-11021	Pin, Ring
15101	90311-42031	Seal, Oil
15104	15104-64080	Strainer Sub-Assy, Oil
15104	15149-64030	Gasket(For Oil Strainer)
15104	15149-64070	Gasket(For Oil Strainer)
15104	90116-06132	Bolt, Stud(For Oil Strainer)
15131	15131-64020	Valve, Oil Pump Relief
15131	15131-64041	Valve, Oil Pump Relief
15132	15132-17010	Spring, Oil Pump Relief Valve
15132	15132-64012	Spring, Oil Pump Relief Valve
15133	15133-20010	Plug, Oil Pump Relief Valve
15133	15133-64041	Plug, Oil Pump Relief Valve
15134	15134-20010	Gasket, Oil Pump Relief Valve
15134	15134-67020	Gasket, Oil Pump Relief Valve
15193	15193-64022	Gasket, Oil Pump
9011908908	90119-08908	BOLT WWASHER
9011908909	90119-08909	New Genuine Part
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9161160814	91611-60814	Bolt

OEM	Part name	Category
15100-64040	Pump Assy, Oil	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15100-64041	Pump Assy, Oil	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15100-64042	Pump Assy, Oil	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15104-64080	Strainer Sub-Assy, Oil	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15131-64020	Valve, Oil Pump Relief	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15131-64041	Valve, Oil Pump Relief	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15132-17010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15132-64012	Spring, Oil Pump Relief Valve	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15133-20010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15133-64041	Plug, Oil Pump Relief Valve	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15134-20010	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15134-67020	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15149-64030	Gasket(For Oil Strainer)	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15149-64070	Gasket(For Oil Strainer)	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
15193-64022	Gasket, Oil Pump	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
90116-06132	Bolt, Stud(For Oil Strainer)	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
90119-08908	BOLT WWASHER	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
90119-08909	New Genuine Part	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
90119-08B81	New Genuine Part	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
90179-06299	Nut, Wire Adjusting, No.1	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
90253-11021	Pin, Ring	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
90311-42031	Seal, Oil	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
91611-60814	Bolt	Engine Oil Pump ([05.1998 - ] (9805- )3CTE)
