CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

4,816 items

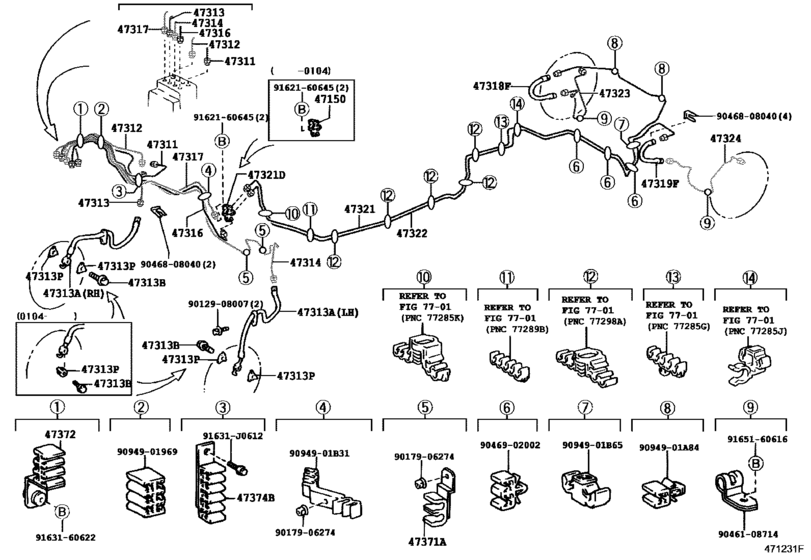

Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10) 45

#	OEM	Part name
47150	47150-44020	Valve Assy, Proportioning
47311	47311-44050	Tube, Front Brake, No.1
47311	47311-44150	Tube, Front Brake, No.1
47312	47312-44030	Tube, Front Brake, No.2
47312	47312-44110	Tube, Front Brake, No.2
47313	47313-44010	Tube, Front Brake, No.3
47313	47313-44060	Tube, Front Brake, No.3
47313	90947-02887	Hose, Flexible, No.1(For Front)
47313	90947-02888	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-44010	Tube, Front Brake, No.4
47314	47314-44080	Tube, Front Brake, No.4
47316	47316-44030	Tube, Front Brake, No.6
47316	47316-44040	Tube, Front Brake, No.6
47316	47316-44060	Tube, Front Brake, No.6
47317	47317-44030	Tube, Front Brake, No.7
47317	47317-44040	Tube, Front Brake, No.7
47317	47317-44070	Tube, Front Brake, No.7
47318	90947-02874	Hose, Flexible(For Rear Rh)
47318	90947-02C39	Hose, Flexible(For Rear Rh)
47321	47321-44030	Tube, Rear Brake, No.1
47321	90412-10140	Valve Assy, Proportioning
47322	47322-44030	Tube, Rear Brake, No.2
47323	47323-44010	Tube, Rear Brake, No.3
47324	47324-44010	Tube, Rear Brake, No.4
47371	47371-16030	Clamp, Brake Tube, No.1
47372	47371-44040	Clamp, Brake Tube, No.2
47374	47371-44030	Clamp, Brake Tube, No.4
91631	91631-J0612	BRACKET
9094901	90949-01A84	Clamp, Height Control Tube, No.3
9094901	90949-01B31	New Genuine Part
9094901	90949-01B65	Clamp, Front Drive Vacuum Tube, No.2
9012908007	90129-08007	New Genuine Part
9017906274	90179-06274	Nut
9046108714	90461-08714	New Genuine Part
9046808040	90468-08040	CLIP
9046902002	90469-02002	Clamp, Brake Tube, No.2
9094901969	90949-01969	Clamp, Brake Tube, No.6
9094901969	90080-46365	Clamp, Brake Tube, No.5
9162160645	91621-60645	New Genuine Part
9163160622	91631-60622	Screw
9165160616	91651-60616	BOLT

OEM	Part name	Category
47150-44020	Valve Assy, Proportioning	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47311-44050	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47311-44150	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47312-44030	Tube, Front Brake, No.2	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47312-44110	Tube, Front Brake, No.2	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47313-44010	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47313-44060	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47314-44010	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47314-44080	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47316-44030	Tube, Front Brake, No.6	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47316-44040	Tube, Front Brake, No.6	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47316-44060	Tube, Front Brake, No.6	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47317-44030	Tube, Front Brake, No.7	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47317-44040	Tube, Front Brake, No.7	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47317-44070	Tube, Front Brake, No.7	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47321-44030	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47322-44030	Tube, Rear Brake, No.2	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47323-44010	Tube, Rear Brake, No.3	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47324-44010	Tube, Rear Brake, No.4	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47371-16030	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47371-44030	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47371-44040	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90129-08007	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90179-06274	Nut	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90412-10140	Valve Assy, Proportioning	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90461-08714	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90468-08040	CLIP	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90469-02002	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90947-02874	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90947-02887	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90947-02888	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90947-02C39	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90949-01A84	Clamp, Height Control Tube, No.3	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90949-01B31	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
90949-01B65	Clamp, Front Drive Vacuum Tube, No.2	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
91621-60645	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
91631-60622	Screw	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
91631-J0612	BRACKET	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
91651-60616	BOLT	Brake Tube & Clamp ([05.1998 - ] (9805- )CXM10)
