CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

← Back to categories

4,816 items

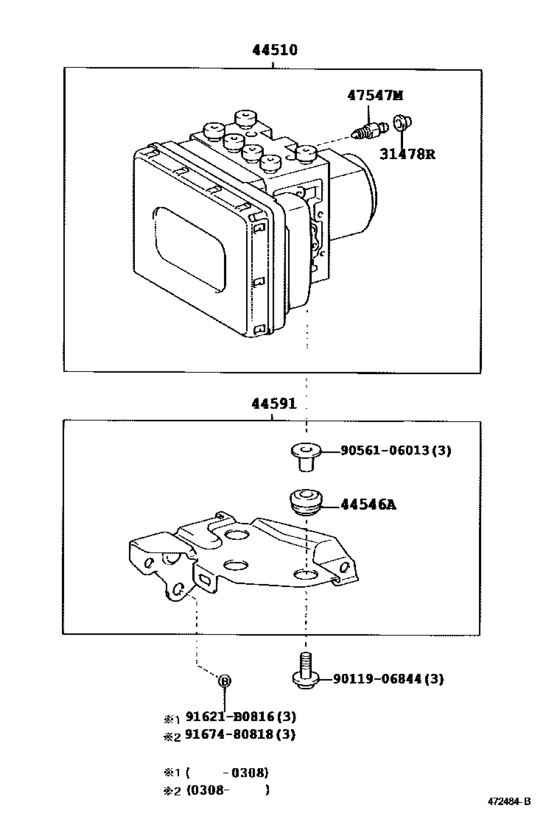

Brake Tube & Clamp ([04.2001 - ] (0104- )) 12

#	OEM	Part name
31478	31478-30010	Bleeder Plug Cap
44510	44050-44010	Actuator Assy, Brake
44510	44050-44140	Actuator Assy, Brake
44510	44050-44141	Actuator Assy, Brake
44546	44546-44010	Cushion, Brake Actuator Bolt
44591	44590-44010	Bracket, Brake Actuator, No.1
44591	44590-44030	Bracket, Brake Actuator, No.1
47547	47547-22020	Plug, Bleeder(For Rear Disc Brake)
91621	91621-B0816	BOLT WWASHER
9011906844	90119-06844	Bolt, Brake Actuator Cushion
9056106013	90561-06013	Spacer(For Height Control Compressor Bracket)
9167480818	91674-80818	BOLT FLANGE

OEM	Part name	Category
31478-30010	Bleeder Plug Cap	Brake Tube & Clamp ([04.2001 - ] (0104- ))
44050-44010	Actuator Assy, Brake	Brake Tube & Clamp ([04.2001 - ] (0104- ))
44050-44140	Actuator Assy, Brake	Brake Tube & Clamp ([04.2001 - ] (0104- ))
44050-44141	Actuator Assy, Brake	Brake Tube & Clamp ([04.2001 - ] (0104- ))
44546-44010	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([04.2001 - ] (0104- ))
44590-44010	Bracket, Brake Actuator, No.1	Brake Tube & Clamp ([04.2001 - ] (0104- ))
44590-44030	Bracket, Brake Actuator, No.1	Brake Tube & Clamp ([04.2001 - ] (0104- ))
47547-22020	Plug, Bleeder(For Rear Disc Brake)	Brake Tube & Clamp ([04.2001 - ] (0104- ))
90119-06844	Bolt, Brake Actuator Cushion	Brake Tube & Clamp ([04.2001 - ] (0104- ))
90561-06013	Spacer(For Height Control Compressor Bracket)	Brake Tube & Clamp ([04.2001 - ] (0104- ))
91621-B0816	BOLT WWASHER	Brake Tube & Clamp ([04.2001 - ] (0104- ))
91674-80818	BOLT FLANGE	Brake Tube & Clamp ([04.2001 - ] (0104- ))
