Search › Model › CXM10

CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

4,816 items

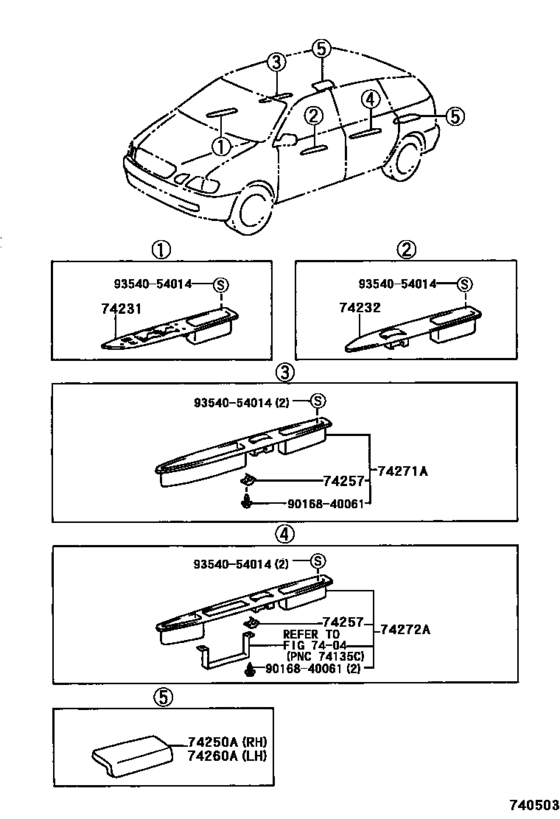

Armrest & Visor ([05.1998 - ] (9805- )) 42

#	OEM	Part name
74231	74231-44040	Panel, Front Armrest Base, Upper Rh
74231	74231-44050	Panel, Front Armrest Base, Upper Rh
74231	74231-44140	Panel, Front Armrest Base, Upper Rh
74231	74231-44150	Panel, Front Armrest Base, Upper Rh
74232	74232-44040	Panel, Front Armrest Base, Upper Lh
74232	74232-44090	Panel, Front Armrest Base, Upper Lh
74250	74250-44080-A0	Armrest Assy, Quarter, Rh
74250	74250-44090-A0	Armrest Assy, Quarter, Rh
74250	74250-44090-A1	Armrest Assy, Quarter, Rh
74250	74250-44240-A0	Armrest Assy, Quarter, Rh
74250	74250-44250-A0	Armrest Assy, Quarter, Rh
74257	74257-44010	Spring, Armrest, No.1
74260	74260-44050-A0	Armrest Assy, Quarter, Lh
74260	74260-44060-A0	Armrest Assy, Quarter, Lh
74260	74260-44060-A1	Armrest Assy, Quarter, Lh
74260	74260-44190-A0	Armrest Assy, Quarter, Lh
74260	74260-44200-A0	Armrest Assy, Quarter, Lh
74271	74271-44040	Panel, Rear Door Armrest Base, Upper Rh
74271	74271-44120	Panel, Rear Door Armrest Base, Upper Rh
74272	74272-44030	Panel, Rear Door Armrest Base, Upper Lh
74272	74272-44110	Panel, Rear Door Armrest Base, Upper Lh
74310	74310-44040-A0	Visor Assy, Rh
74310	74310-44140-B0	Visor Assy, Rh
74310	74310-44140-A0	Visor Assy, Rh
74320	74320-44040-A0	Visor Assy, Lh
74320	74320-44130-B0	Visor Assy, Lh
74320	74320-44130-A0	Visor Assy, Lh
74348	74348-26020-A1	Holder, Visor, Rh
74348	74348-26020-B3	Holder, Visor
74610	74611-20030-A0	Grip Sub-Assy, Assist
74610	74611-20030-A1	Grip Sub-Assy, Assist
74610	74603-44020-A0	Grip Assy, Assist
74610	74603-44020-B6	Grip Sub-Assy, Assist
74613	74617-44010-A0	Plug, Assist Grip
74613	74617-44010-A1	Plug, Assist Grip
74617	74617-44020-A0	Plug, Assist Grip
74617	74617-44020-B5	Plug, Assist Grip
9015960273	90159-60273	New Genuine Part
9015960367	90159-60367	Screw
9016250019	90162-50019	New Genuine Part
9016840061	90168-40061	SCREW
9354054014	93540-54014	SCREW

OEM	Part name	Category
74231-44040	Panel, Front Armrest Base, Upper Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74231-44050	Panel, Front Armrest Base, Upper Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74231-44140	Panel, Front Armrest Base, Upper Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74231-44150	Panel, Front Armrest Base, Upper Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74232-44040	Panel, Front Armrest Base, Upper Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74232-44090	Panel, Front Armrest Base, Upper Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74250-44080-A0	Armrest Assy, Quarter, Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74250-44090-A0	Armrest Assy, Quarter, Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74250-44090-A1	Armrest Assy, Quarter, Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74250-44240-A0	Armrest Assy, Quarter, Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74250-44250-A0	Armrest Assy, Quarter, Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74257-44010	Spring, Armrest, No.1	Armrest & Visor ([05.1998 - ] (9805- ))
74260-44050-A0	Armrest Assy, Quarter, Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74260-44060-A0	Armrest Assy, Quarter, Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74260-44060-A1	Armrest Assy, Quarter, Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74260-44190-A0	Armrest Assy, Quarter, Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74260-44200-A0	Armrest Assy, Quarter, Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74271-44040	Panel, Rear Door Armrest Base, Upper Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74271-44120	Panel, Rear Door Armrest Base, Upper Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74272-44030	Panel, Rear Door Armrest Base, Upper Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74272-44110	Panel, Rear Door Armrest Base, Upper Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74310-44040-A0	Visor Assy, Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74310-44140-A0	Visor Assy, Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74310-44140-B0	Visor Assy, Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74320-44040-A0	Visor Assy, Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74320-44130-A0	Visor Assy, Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74320-44130-B0	Visor Assy, Lh	Armrest & Visor ([05.1998 - ] (9805- ))
74348-26020-A1	Holder, Visor, Rh	Armrest & Visor ([05.1998 - ] (9805- ))
74348-26020-B3	Holder, Visor	Armrest & Visor ([05.1998 - ] (9805- ))
74603-44020-A0	Grip Assy, Assist	Armrest & Visor ([05.1998 - ] (9805- ))
74603-44020-B6	Grip Sub-Assy, Assist	Armrest & Visor ([05.1998 - ] (9805- ))
74611-20030-A0	Grip Sub-Assy, Assist	Armrest & Visor ([05.1998 - ] (9805- ))
74611-20030-A1	Grip Sub-Assy, Assist	Armrest & Visor ([05.1998 - ] (9805- ))
74617-44010-A0	Plug, Assist Grip	Armrest & Visor ([05.1998 - ] (9805- ))
74617-44010-A1	Plug, Assist Grip	Armrest & Visor ([05.1998 - ] (9805- ))
74617-44020-A0	Plug, Assist Grip	Armrest & Visor ([05.1998 - ] (9805- ))
74617-44020-B5	Plug, Assist Grip	Armrest & Visor ([05.1998 - ] (9805- ))
90159-60273	New Genuine Part	Armrest & Visor ([05.1998 - ] (9805- ))
90159-60367	Screw	Armrest & Visor ([05.1998 - ] (9805- ))
90162-50019	New Genuine Part	Armrest & Visor ([05.1998 - ] (9805- ))
90168-40061	SCREW	Armrest & Visor ([05.1998 - ] (9805- ))
93540-54014	SCREW	Armrest & Visor ([05.1998 - ] (9805- ))

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 234
Collected: 2026-08-03
