Search › Model › CXM10
CXM10

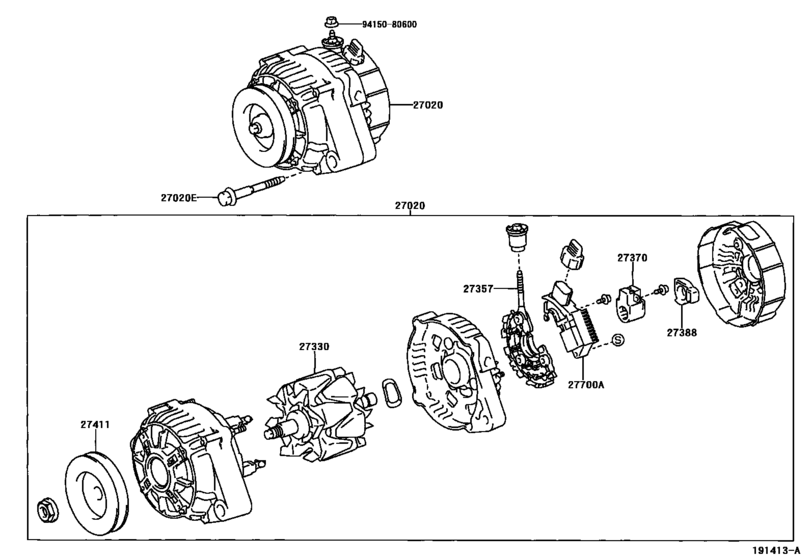

Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) 10
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-64340 | Alternator Assy |
| 27020 | 90901-05004 | Bolt(For Alternator) |
| 27330 | 27330-20070 | Rotor Assy, Alternator |
| 27330 | 27330-64520 | Rotor Assy, Alternator |
| 27357 | 27357-20060 | Holder, Alternator, W/rectifier |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush |
| 27388 | 27388-46220 | Cover, Alternator Brush |
| 27411 | 27411-64490 | Pulley, Alternator |
| 27700 | 27700-62010 | Regulator Assy, Generator |
| 9415080600 | 94150-80600 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 27060-64340 | Alternator Assy | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
| 27330-20070 | Rotor Assy, Alternator | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
| 27330-64520 | Rotor Assy, Alternator | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
| 27357-20060 | Holder, Alternator, W/rectifier | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
| 27370-75060 | Holder Assy, Alternator Brush | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
| 27388-46220 | Cover, Alternator Brush | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
| 27411-64490 | Pulley, Alternator | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
| 27700-62010 | Regulator Assy, Generator | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
| 90901-05004 | Bolt(For Alternator) | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
| 94150-80600 | NUT FLANGE | Alternator ([04.2001 - ] 12V 100A (0104- )3CTE) |
