CXC10

Toyota DELIBOY · 1991 · 3,862 parts · 159 categories

3,862 items

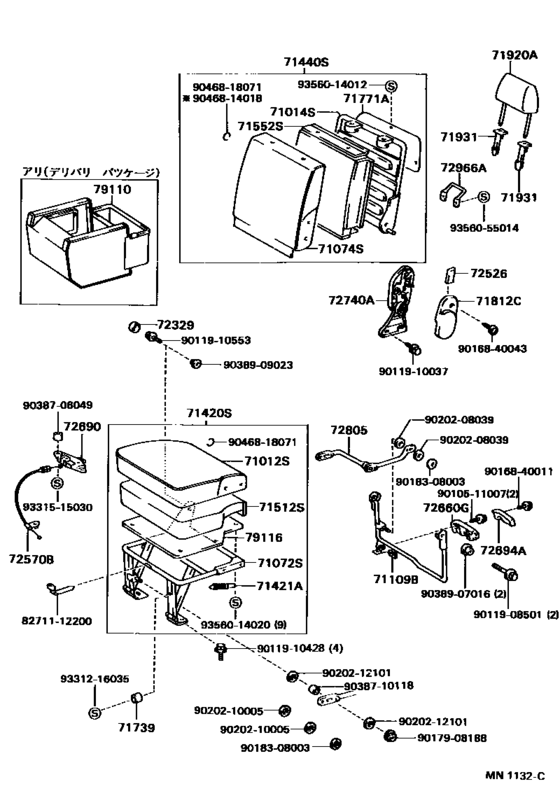

Seat & Seat Track ([05.1991 - ] (9105- )DX) 59

#	OEM	Part name
71012	71012-38020	Frame Sub-Assy, Front Seat Cushion, Lh
71014	71014-38030	Frame Sub-Assy, Front Seat Back, Lh
71072	71072-38090-03	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	71074-38120-03	Cover, Front Seat Back, Lh(For Separate Type)
71109	71109-90P82	Leg Sub-Assy, Front Seat, Lh
71420	71420-38090-03	Cushion Assy, Front Seat, Lh (For Separate Type)
71421	71421-90P81	Spring, Front Seat Cushion
71440	71440-38120-03	Back Assy, Front Seat, Lh(For Separate Type)
71512	71512-38060	Pad, Front Seat Cushion, Lh (For Separate Type)
71552	71552-38070	Pad, Front Seat Back, Lh(For Separate Type)
71739	71396-90P80	Cushion, No.2 Seat Support, Rear
71771	71771-90P80	Board, Front Seat Back
71812	71834-60010-03	Cover, Reclining Adjuster, Lh
71812	71834-60010-B0	Cover, Rear Seat Reclining, No.1 Lh
71920	71920-90P80-03	Headrest Assy, Front Seat, Lh
71931	71930-10060-47	Support, Front Seat Headrest
71931	71930-10060-B1	Support, Front Seat Headrest
71931	71930-22040-B0	Support, Front Seat Headrest
71931	71931-10010-47	Support, Front Seat Headrest
71931	71931-10010-B1	Support, Front Seat Headrest
71931	71931-22010-B1	Support, Front Seat Headrest
72329	72329-90P50	Cover, Seat Adjuster Bolt
72526	72525-95700-03	Handle, Reclining Adjuster Release
72526	72525-60030-B0	Handle, Reclining Adjuster Release
72570	72570-90P80	Cable Assy, Reclining Adjusting, Rh
72660	72660-38010	Support Assy, Front Seat Cushion
72690	72690-38010-03	Lever Assy, Seat Cushion Lock Release
72694	72694-90K00	Cover, Rear Seat Cushion Lock
72740	72740-38010-03	Adjuster Assy, Rear Seat Reclining, Lh
72805	72805-90P82	Link Sub-Assy, Front Seat Center Armrest, Rh
72966	72966-90P80	Bracket, Rear Seat Turn Lock
79110	79110-38020	Leg Assy, No.1 Seat
79116	79116-90P80	Board, No.1 Seat Cushion
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
9010511007	90105-11007	BOLT
9011908501	90119-08501	New Genuine Part
9011908501	90119-08653	New Genuine Part
9011910037	90119-10037	BOLT
9011910428	90119-10428	New Genuine Part
9011910553	90119-10553	New Genuine Part
9016840011	90168-40011	SCREW
9016840043	90168-40043	SCREW
9017908188	90179-08188	New Genuine Part
9018308003	90183-08003	NUT
9020208039	90202-08039	WASHER
9020210005	90202-10005	New Genuine Part
9020212101	90202-12101	New Genuine Part
9038706049	90387-06049	New Genuine Part
9038710118	90387-10118	New Genuine Part
9038907016	90389-07016	New Genuine Part
9038909023	90389-09023	New Genuine Part
9046814018	90468-14018	New Genuine Part
9046818071	90468-18071	Clip (For Front Seat Cushion Cover)
9046818071	90468-16019	Clip (For Rear Seat Back)
9331216035	93312-16035	New Genuine Part
9331515030	93315-15030	New Genuine Part
9356014012	93560-14012	SCREW
9356014020	93560-14020	New Genuine Part
9356055014	93560-55014	SCREW

OEM	Part name	Category
71012-38020	Frame Sub-Assy, Front Seat Cushion, Lh	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71014-38030	Frame Sub-Assy, Front Seat Back, Lh	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71072-38090-03	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71074-38120-03	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71109-90P82	Leg Sub-Assy, Front Seat, Lh	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71396-90P80	Cushion, No.2 Seat Support, Rear	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71420-38090-03	Cushion Assy, Front Seat, Lh (For Separate Type)	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71421-90P81	Spring, Front Seat Cushion	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71440-38120-03	Back Assy, Front Seat, Lh(For Separate Type)	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71512-38060	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71552-38070	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71771-90P80	Board, Front Seat Back	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71834-60010-03	Cover, Reclining Adjuster, Lh	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71834-60010-B0	Cover, Rear Seat Reclining, No.1 Lh	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71920-90P80-03	Headrest Assy, Front Seat, Lh	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71930-10060-47	Support, Front Seat Headrest	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71930-10060-B1	Support, Front Seat Headrest	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71930-22040-B0	Support, Front Seat Headrest	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71931-10010-47	Support, Front Seat Headrest	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71931-10010-B1	Support, Front Seat Headrest	Seat & Seat Track ([05.1991 - ] (9105- )DX)
71931-22010-B1	Support, Front Seat Headrest	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72329-90P50	Cover, Seat Adjuster Bolt	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72525-60030-B0	Handle, Reclining Adjuster Release	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72525-95700-03	Handle, Reclining Adjuster Release	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72570-90P80	Cable Assy, Reclining Adjusting, Rh	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72660-38010	Support Assy, Front Seat Cushion	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72690-38010-03	Lever Assy, Seat Cushion Lock Release	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72694-90K00	Cover, Rear Seat Cushion Lock	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72740-38010-03	Adjuster Assy, Rear Seat Reclining, Lh	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72805-90P82	Link Sub-Assy, Front Seat Center Armrest, Rh	Seat & Seat Track ([05.1991 - ] (9105- )DX)
72966-90P80	Bracket, Rear Seat Turn Lock	Seat & Seat Track ([05.1991 - ] (9105- )DX)
79110-38020	Leg Assy, No.1 Seat	Seat & Seat Track ([05.1991 - ] (9105- )DX)
79116-90P80	Board, No.1 Seat Cushion	Seat & Seat Track ([05.1991 - ] (9105- )DX)
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90105-11007	BOLT	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90119-08501	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90119-08653	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90119-10037	BOLT	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90119-10428	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90119-10553	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90168-40011	SCREW	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90168-40043	SCREW	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90179-08188	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90183-08003	NUT	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90202-08039	WASHER	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90202-10005	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90202-12101	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90387-06049	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90387-10118	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90389-07016	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90389-09023	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90468-14018	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90468-16019	Clip (For Rear Seat Back)	Seat & Seat Track ([05.1991 - ] (9105- )DX)
90468-18071	Clip (For Front Seat Cushion Cover)	Seat & Seat Track ([05.1991 - ] (9105- )DX)
93312-16035	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
93315-15030	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
93560-14012	SCREW	Seat & Seat Track ([05.1991 - ] (9105- )DX)
93560-14020	New Genuine Part	Seat & Seat Track ([05.1991 - ] (9105- )DX)
93560-55014	SCREW	Seat & Seat Track ([05.1991 - ] (9105- )DX)
