Search › Model › CXC10

CXC10

Toyota DELIBOY · 1991 · 3,862 parts · 159 categories
CXC10 ×

← Back to categories

3,862 items

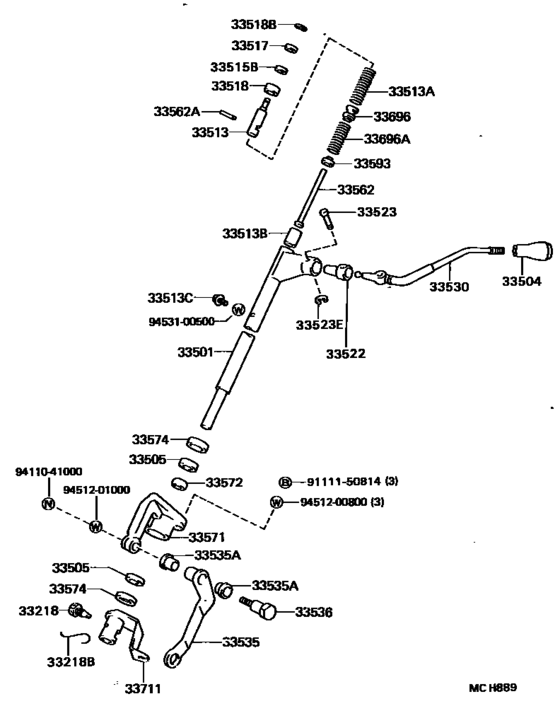

Control Shaft & Crossshaft ([07.1989 - ] (8907- )5H) 64
#OEMPart name
33218 33218-35010 Bolt, Shift Lever Lock
33218 90580-14002 Wire(For Shift Lever Lock Bolt)
33501 33501-27170 Shaft Sub-Assy, Control (For Column Shift)
33504 33504-30110 Knob Sub-Assy, Shift Lever (For Column Shift)
33505 90303-17005 Seal Sub-Assy, Control Shaft Dust (For Column Shift)
33513 33513-26020 Shaft, Control Shaft Bracket, Upper
33513 90501-14395 Spring, Compression (For Bracket Upper Shaft)
33513 90560-11015 Spacer (For Control Shaft Bracket Upper Shaft)
33513 90109-05012 Bolt (For Control Shaft Bracket Upper Shaft)
33515 33515-30010 Seat, Control Shaft Upper
33517 33517-30010 Retainer, Control Shaft Upper Spring
33518 33518-35010 Bush, Upper Control Shaft Piece
33518 33518-36010 Bush, Upper Control Shaft Piece
33518 90523-06019 Ring, E (For Upper Control Shaft Piece Bush)
33522 33522-36010 Seat, Shift Lever Plate (For Column Shift)
33523 90249-07001 Pin, Shift Lever (For Column Shift)
33523 96160-00500 Ring, E(For Over Center Lever)
33530 33541-27320 Lever Assy, Shift (For Column Shift)
33535 33535-26020 Lever, Control Select (For Column Shift)
33535 90386-13007 Bush(For Clutch Pedal)
33536 33536-25010 Shaft, Control Select Lever (For Column Shift)
33562 33562-26010 Stopper, Control Shaft Upper Bracket Shaft
33562 90254-03006 Pin(For Reverse Shift Head)
33571 33571-26012 Bracket, Control Shaft, Lower (For Column Shift)
33572 33572-36010 Bush, Control Shaft Lower (For Column Shift)
33574 33574-25010 Retainer, Dust Seal (For Column Shift Control Shaft)
33593 33593-26030 Holder, Spring (For Select Lever)
33696 33696-26020 Seat, Select Spring
33696 90501-18049 Spring, Compression
33705 33705-27050 Support Sub-Assy, Cross Shaft, No.1 (For Column Shift)
33706 33706-27120 Support Sub-Assy, Cross Shaft, No.2 (For Column Shift)
33709 33709-27040 Shaft Sub-Assy, Cross, No.1 (For Column Shift)
33710 33710-27120 Rod Assy, Gear Shifting, No.1 (For Column Shift)
33711 33527-26050 Lever, Control Shaft (For Column Shift)
33720 33720-27140 Rod Assy, Gear Selecting, No.1 (For Column Shift)
33723 33723-10020 Swivel, Connecting Rod (For Column Shift)
33723 90389-08005 Bushing(For Gear Selecting Rod)
33723 90480-17177 Grommet (For Transmission Control Rod)
33740 33740-36080 End Assy, Connecting Rod, No.1(For Column Shift)
33742 33730-27070 Rod, Gear Shifting, No.2(For Column Shift)
33750 33750-27010 End, Connecting Rod, No.2 (For Column Shift)
33767 33767-27010 Insulator, Connecting Rod Heat (For Column Shift)
33772 33772-26010 Bush (For Cross Shaft)
33773 96151-01600 Ring, Snap
33775 33775-20020 Cover, Cross Shaft Dust (For Column Shift)
33775 33775-20040 Cover, Cross Shaft Dust (For Column Shift)
9017008052 90170-08052 Nut, Hexagon (For Column Shift Selecting Or Shifting Rod)
9017908141 90179-08141 Nut (For Transmission Control Cable)
9017908141 90179-08038 Nut
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046814004 90468-14004 Union, Auxiliary Fuel Band
9111150814 91111-50814 Bolt (for Transmission Control Cable Bracket)
9111150814 91611-B0816 Bolt
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9411041000 94110-41000 Nut(For Steering Damper)
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9453100500 94531-00500 WASHER,WAVE
9461310800 94613-10800 Spacer (For Control Select Lever Support)
Source
Public OEM parts-catalog data
Variants
2 / 4
Category
159
Collected
2026-08-03
