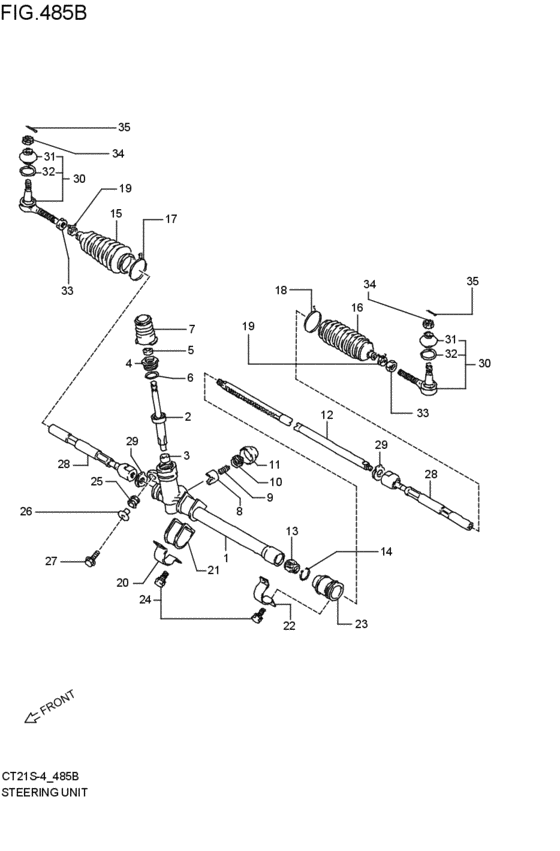

| 01570-08253-000 |
Bolt, upper |
steering unit (1997-04-01~1998-10-01) |
| 01570-0825A-000 |
Bolt |
steering unit (1997-04-01~1998-10-01) |
| 01570-0825B-000 |
Bolt |
steering unit (1997-04-01~1998-10-01) |
| 04111-30208-000 |
Cotter pin - Cotter pin, knuckle end |
steering unit (1997-04-01~1998-10-01) |
| 04111-3020A-000 |
PIN |
steering unit (1997-04-01~1998-10-01) |
| 08314-40123-000 |
Nut - Nut, knuckle end |
steering unit (1997-04-01~1998-10-01) |
| 08314-4012A-000 |
NUT |
steering unit (1997-04-01~1998-10-01) |
| 09116-08105-000 |
Bolt (8x28) |
steering unit (1997-04-01~1998-10-01) |
| 09116-08120-000 |
BOLT(8X28) |
steering unit (1997-04-01~1998-10-01) |
| 09140-12030-000 |
NUT - Nut, tie rod (rh thread) |
steering unit (1997-04-01~1998-10-01) |
| 09180-08174-000 |
SPACER(8.6X12X16.1) |
steering unit (1997-04-01~1998-10-01) |
| 09280-34003-000 |
O RING(D:2,ID:34.1) |
steering unit (1997-04-01~1998-10-01) |
| 09283-15002-000 |
SEAL,OIL(15X25X5) |
steering unit (1997-04-01~1998-10-01) |
| 09320-12028-000 |
CUSHION |
steering unit (1997-04-01~1998-10-01) |
| 09381-33002-000 |
RING, SNAP |
steering unit (1997-04-01~1998-10-01) |
| 09401-15407-000 |
CLIP - Bolt, 2nd air hose |
steering unit (1997-04-01~1998-10-01) |
| 09401-23402-000 |
CLIP |
steering unit (1997-04-01~1998-10-01) |
| 09440-19011-000 |
SPRING |
steering unit (1997-04-01~1998-10-01) |
| 09460-01023-000 |
WIRE |
steering unit (1997-04-01~1998-10-01) |
| 48451-74F00-000 |
PACKING,STEERING GEAR CASE |
steering unit (1997-04-01~1998-10-01) |
| 48510-74F01-000 |
CASE,STRG GEAR,R |
steering unit (1997-04-01~1998-10-01) |
| 48521-82000-000 |
BRACKET,STEERING PINION SIDE |
steering unit (1997-04-01~1998-10-01) |
| 48522-82000-000 |
BRACKET,STEERING RACK SIDE |
steering unit (1997-04-01~1998-10-01) |
| 48525-60F00-000 |
MOUNT,STRG PINION SIDE |
steering unit (1997-04-01~1998-10-01) |
| 48526-82000-000 |
MOUNT,STRG RACK SIDE |
steering unit (1997-04-01~1998-10-01) |
| 48531-74F01-000 |
RACK,STEERING,R |
steering unit (1997-04-01~1998-10-01) |
| 48534-50E00-000 |
プランジャ,ステアリングラック |
steering unit (1997-04-01~1998-10-01) |
| 48534-60J00-000 |
PLUNGER,STEERING RACK |
steering unit (1997-04-01~1998-10-01) |
| 48535-82000-000 |
SCREW,RACK DAMPER |
steering unit (1997-04-01~1998-10-01) |
| 48536-58000-000 |
CAP,RACK DAMPER SCREW |
steering unit (1997-04-01~1998-10-01) |
| 48541-53B02-000 |
Bushing, steering rack |
steering unit (1997-04-01~1998-10-01) |
| 48541-82H10-000 |
BUSHING,STEERING RACK |
steering unit (1997-04-01~1998-10-01) |
| 48550-74F00-000 |
PINION,STEERING,R |
steering unit (1997-04-01~1998-10-01) |
| 48555-74F00-000 |
BEARING,STEERING PINION NDL |
steering unit (1997-04-01~1998-10-01) |
| 48562-82000-000 |
Plug, pinion bearing |
steering unit (1997-04-01~1998-10-01) |
| 48562-82K00-000 |
PLUG,PINION BEARING |
steering unit (1997-04-01~1998-10-01) |
| 48571-82000-000 |
BOOT,STEERING PINION SIDE |
steering unit (1997-04-01~1998-10-01) |
| 48572-60B10-000 |
BOOT,STEERING RACK SIDE |
steering unit (1997-04-01~1998-10-01) |
| 48800-60810-000 |
Boot Set |
steering unit (1997-04-01~1998-10-01) |
| 48810-84001-000 |
END,STEERING TIE-ROD |
steering unit (1997-04-01~1998-10-01) |
| 48819-60B00-000 |
BOOT SET |
steering unit (1997-04-01~1998-10-01) |
| 48819-60B01-000 |
Boot Set |
steering unit (1997-04-01~1998-10-01) |
| 48830-70B00-000 |
TIE-ROD,STEERING |
steering unit (1997-04-01~1998-10-01) |
| 48841-82001-000 |
WASHER,STEERING TIE ROD LOCK |
steering unit (1997-04-01~1998-10-01) |
