CV43

Toyota CAMRY-VISTA-AURION · 1995 · 5,425 parts · 208 categories
CV43 ×

← Back to categories

5,425 items

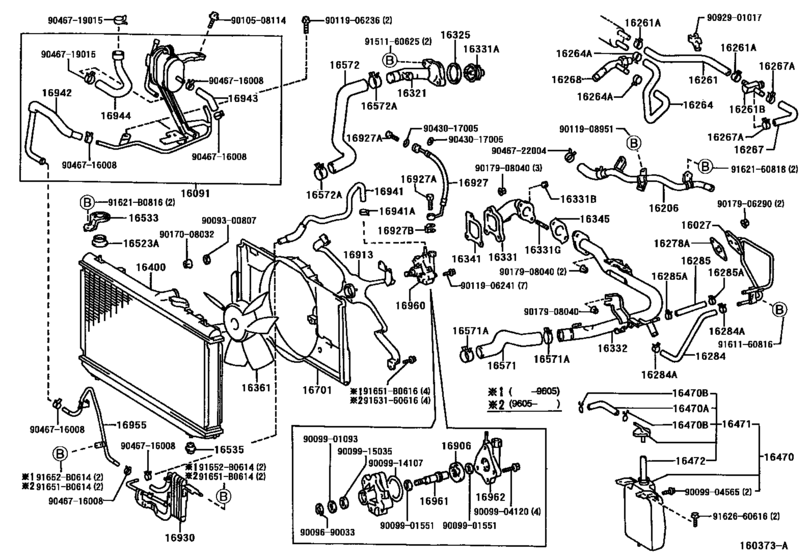

Radiator & Water Outlet ([06.1994 - ] (9406- )3CT) 120
#OEMPart name
16027 16027-64060 Pipe Sub-Assy, Turbo Water, No.1
16091 16091-64020 Filter Sub-Assy, Hydraulic Moter Oil
16206 16206-64040 Pipe Sub-Assy, Water By-Pass
16261 16261-64060 Hose, Water By-Pass
16261 16261-64110 Hose, Water By-Pass
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16261 90404-53050 Union(For Water By-Pass Hose)
16264 16264-64090 Hose, Water By-Pass, No.2
16264 16264-64110 Hose, Water By-Pass, No.2
16267 16267-64010 Hose, Water By-Pass, No.3
16267 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
16267 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
16268 16268-64061 Pipe, Water By-Pass, No.1
16278 16347-42020 Gasket, Water By-Pass
16284 99556-10300 Hose, Turbo Water, No.1
16284 90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)
16285 99556-10200 Hose, Turbo Water, No.2
16321 16321-64020 Inlet, Water
16321 16321-64050 Inlet, Water
16325 16325-63011 Gasket, Water Inlet Housing, No.1
16331 16331-64030 Outlet, Water
16331 90916-03046 Thermostat
16331 90345-53030 Cock Sub-Assy, Water Drain(For Cylinder Block)
16331 92122-60816 Bolt, Stud(For Water Pump Set)
16332 16306-64041 Pipe, Water Outlet, No.1
16332 16306-64042 Pipe, Water Outlet, No.1
16332 16306-64050 Pipe, Water Outlet, No.1
16341 16341-64021 Gasket, Water Outlet
16345 16345-64041 Gasket, Water Outlet Pipe
16361 16911-64010 Fan
16400 16400-64770 Radiator Assy
16400 16400-6A110 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16401 16401-72090 Cap Sub-Assy, Radiator
16401 16401-20353 Cap Sub-Assy, Radiator
16401 16401-36030 Cap Sub-Assy, Radiator
16403 16403-62080 Core Sub-Assy, Radiator
16403 16403-62081 Core Sub-Assy, Radiator
16406 16406-62060 Support(For Oil Cooler)
16442 16462-74670 Ring, O(For Radiator Upper Tank)
16451 16452-74680 Plate, Radiator Core, Upper
16470 16470-64210 Tank Assy, Radiator Reserve
16470 16477-64210 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16471 16405-64100 Cap Sub-Assy, Reserve Tank
16472 90445-12078 Hose(For Radiator Breather)
16491 16491-64770 Cooler, Oil(For Atm)
16491 16492-62060 Ring, O(For Atm Oil Cooler)
16491 16493-62060 Washer, Plate(For Atm Oil Cooler)
16523 16523-74010 Cushion, Sub-Radiator Support
16533 16533-74280 Support, Radiator, Upper
16535 16535-64070 Support, Radiator, Lower
16571 16571-64240 Hose, Radiator, Inlet
16571 90467-34003 Clip(For Oil Return Hose)
16571 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16572 16572-64260 Hose, Radiator, Outlet
16572 90467-37002 Clip(For Water Inlet Hose)
16572 90467-37005 Clip(For Water Inlet Hose)
16701 16912-64030 Shroud Sub-Assy, Fan
16906 16906-50010 Gear Set, Hydraulic
16906 16906-50020 Gear Set, Hydraulic
16906 16906-50030 Gear Set, Hydraulic
16913 16913-64010 Stay, Hydraulic Motor Fan Shroud
16913 16913-64011 Stay, Hydraulic Motor Fan Shroud
16927 16927-64020 Hose, Hydraulic Motor Pressure
16927 90401-16015 Bolt, Union(For Pressure Hose)
16927 90401-17003 Bolt, Union(For Pressure Hose)
16927 44327-12010 Gasket(For Pressure Hose)
16930 16930-64010 Cooler Assy, Hydraulic Motor Oil
16941 16941-64030 Hose, Hydraulic Motor Return, No.1
16941 90467-16008 Clip(For Oil Return Hose)
16941 90467-16019 Clip(For Return No.1)
16942 16942-64020 Hose, Hydraulic Motor Return, No.2
16943 44412-32080 Hose, Hydraulic Motor Return, No.3
16944 16944-64010 Hose, Hydralic Moter Return, No.4
16955 16955-64010 Pipe, Hydraulic Motor Return
16955 16955-64020 Pipe, Hydraulic Motor Return
16960 16960-62010 Motor Assy, Hydraulic Gear
16961 16961-50010 Shaft, Hydraulic Gear Motor
16962 16962-62010 Cover, Hydraulic Gear Motor
91621 91621-B0816 BOLT WWASHER
91651 91651-B0614 BOLT WWASHER
91651 91651-B0616 BOLT WWASHER
91652 91652-B0614 New Genuine Part
9009300807 90093-00807 New Genuine Part
9009690033 90096-90033 New Genuine Part
9009901093 90099-01093 Washer, Oil Filter Cartridge Guide
9009901551 90099-01551 New Genuine Part
9009904120 90099-04120 New Genuine Part
9009904565 90099-04565 New Genuine Part
9009914107 90099-14107 RING
9009915035 90099-15035 OIL SEAL
9010508114 90105-08114 Bolt (For Rear Differential Lock Cylinder Set)
9010508114 90105-08328 Bolt
9011906236 90119-06236 New Genuine Part
9011906241 90119-06241 New Genuine Part
9011906241 90119-06482 New Genuine Part
9011908951 90119-08951 Bolt (For Transmission Control Cable Bracket)
9011908951 91621-J0814 Bolt (For Transmission Control Cable Bracket)
9017008032 90170-08032 New Genuine Part
9017906290 90179-06290 Nut, Cap(For Cylinder Head Cover)
9017906290 90179-06299 Nut, Wire Adjusting, No.1
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9043017005 90430-17005 Gasket(For Return Tube)
9046719015 90467-19015 Clip Or Clamp(For Ventilation Hose)
9046719015 96134-41900 Clip Or Clamp(For Ventilation Hose)
9046722004 90467-22004 Clip(For Ventilation Hose No.2)
9046722004 90467-21010 Clip(For Ventilation Hose No.2)
9092901017 90929-01017 New Genuine Part
9151160625 91511-60625 Bolt(For Cylinder Head Cover)
9151160625 91511-J0625 Bolt(For Cylinder Head Cover)
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9162160818 91621-60818 Bolt(For Automatic Transmission Case Protector)
9162160818 91651-B0820 Bolt, Radiator Side Support Plate
9162660616 91626-60616 New Genuine Part
9162660616 91621-J0612 BOLT W-WASHER
9163160616 91631-60616 BOLT WWASHER
9163160616 91631-B0616 BOLT WWASHER
