CUR10

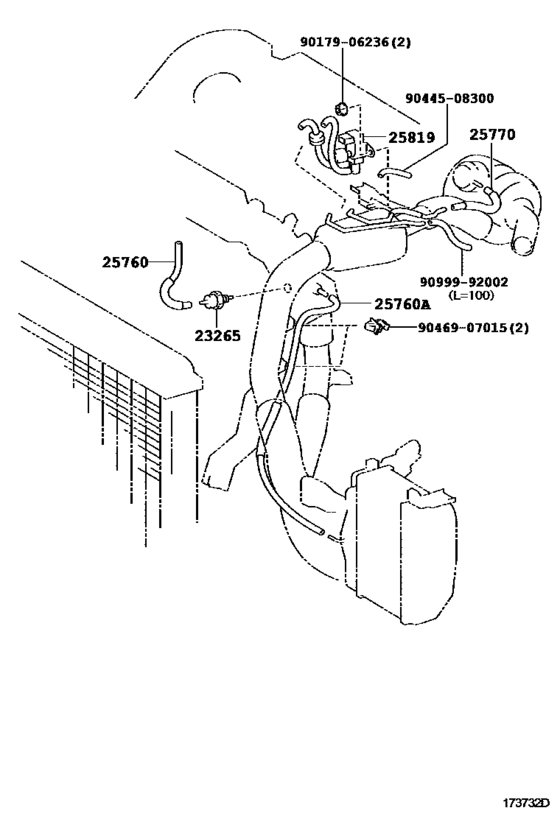

Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) 9
| # | OEM | Part name |
|---|---|---|
| 23265 | 90917-11037 | Filter, Gas, No.1 |
| 25760 | 25760-27090 | Hose Assy, Vacuum Transmitting |
| 25760 | 25760-27100 | Hose Assy, Vacuum Transmitting |
| 25770 | 25770-27050 | Hose Assy, Vacuum Transmitting, No.2 |
| 25819 | 25819-27050 | Valve Assy, Vacuum Regulating |
| 9017906236 | 90179-06236 | NUT |
| 9044508300 | 90445-08300 | Hose, Fuel, No.1(For Charcoal Canister) |
| 9046907015 | 90469-07015 | Clamp, No.2(For Air Tube, No.2) |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| OEM | Part name | Category |
|---|---|---|
| 25760-27090 | Hose Assy, Vacuum Transmitting | Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) |
| 25760-27100 | Hose Assy, Vacuum Transmitting | Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) |
| 25770-27050 | Hose Assy, Vacuum Transmitting, No.2 | Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) |
| 25819-27050 | Valve Assy, Vacuum Regulating | Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) |
| 90179-06236 | NUT | Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) |
| 90445-08300 | Hose, Fuel, No.1(For Charcoal Canister) | Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) |
| 90469-07015 | Clamp, No.2(For Air Tube, No.2) | Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) |
| 90917-11037 | Filter, Gas, No.1 | Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([02.2004 - ] (0402- )1CDFTV) |
