Search › Model › CUR10

CUR10

Toyota COROLLA-VERSO · 2004 · 3,190 parts · 172 categories

3,190 items

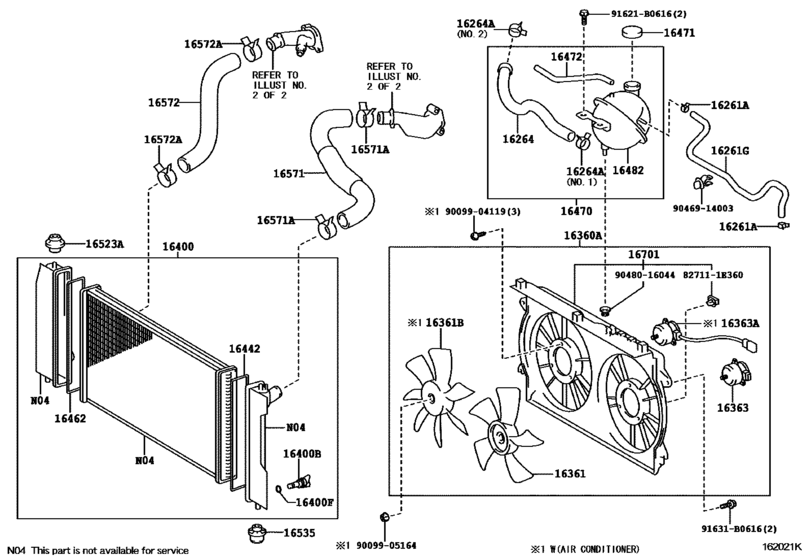

Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV) 67

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16027	16027-27020	Pipe Sub-Assy, Turbo Water, No.1
16261	90466-W0003	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	96135-51300	Clamp, Hose
16261	16261-27080	Hose, Water By-Pass, No.1
16264	16264-0G010	Hose, Water By-Pass, No.2
16264	90466-W0010	Clamp Or Clip(For Water By-Pass Hose No.2)
16264	90467-21010	Clip(For Ventilation Hose No.2)
16267	16267-0G020	Hose, Water By-Pass, No.3
16267	90467-15022	Clip Or Clamp(For Ventilation Hose)
16268	16268-27060	Pipe, Water By-Pass, No.1
16268	90404-53055	Union, Vacuum Hose
16278	16278-27060	Pipe, Water By-Pass, No.2
16278	16347-0G010	Gasket, Water By-Pass
16278	16347-27020	Gasket, Water By-Pass
16281	16281-0G010	Hose, Water By-Pass, No.4
16281	16281-27020	Hose, Water By-Pass, No.4
16281	90467-13073	Clamp Or Clip, Hose(For Water By-Pass Hose)
16281	90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)
16282	16282-0G010	Hose, Water By-Pass, No.5
16282	16282-27020	Hose, Water By-Pass, No.5
16284	16284-27040	Hose, Turbo Water, No.1
16285	16285-0G010	Hose, Turbo Water, No.2
16285	16285-27040	Hose, Turbo Water, No.2
16304	16304-27030	Outlet Sub-Assy, Water
16321	16321-27040	Inlet, Water
16325	16325-27010	Gasket, Water Inlet Housing, No.1
16331	90916-03123	Thermostat
16341	16341-27010	Gasket, Water Outlet
16360	16360-0G070	Fan Assy, W/motor
16360	16360-0G080	Fan Assy, W/motor
16361	16361-0G010	Fan
16361	16361-0G020	Fan, No.2
16363	16363-0G050	Motor, Cooling Fan
16363	16363-0G051	Motor, Cooling Fan
16363	16363-0G060	Motor, Cooling Fan, No.2
16400	16400-0G030	Radiator Assy
16400	16400-0G031	Radiator Assy
16400	90080-34010	Plug, Radiator Drain Cock
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16442	16462-6A300	Ring, O(For Radiator Upper Tank)
16470	16480-0G020	Tank Assy, Radiator Reserve
16471	16401-53010	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-51010	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16472	16472-0G020	Hose, Breather
16482	16482-0G020	Tank Sub-Assy, Radiator Reserve
16523	16523-0D020	Cushion, Radiator Support
16535	16535-27010	Support, Radiator, Lower
16571	16571-0G011	Hose, Radiator, Inlet
16571	90466-41008	Clamp, Hose(For Radiator Hose)
16572	16572-0G010	Hose, Radiator, Outlet
16701	16711-0G030	Shroud Sub-Assy, Fan
16701	16711-0G060	Shroud Sub-Assy, Fan
90178	90178-W0008	New Genuine Part
91511	91511-J0625	Bolt(For Cylinder Head Cover)
91621	91621-B0616	Bolt
91631	91631-B0616	BOLT WWASHER
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9010508233	90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)
9010508233	90080-10187	Bolt (For Transaxle Housing & Transaxle Case Setting)
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9046914003	90469-14003	CLAMP
9048016044	90480-16044	Grommet
9211260840	92112-60840	New Genuine Part

OEM	Part name	Category
16027-27020	Pipe Sub-Assy, Turbo Water, No.1	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16261-27080	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16264-0G010	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16267-0G020	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16268-27060	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16278-27060	Pipe, Water By-Pass, No.2	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16281-0G010	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16281-27020	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16282-0G010	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16282-27020	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16284-27040	Hose, Turbo Water, No.1	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16285-0G010	Hose, Turbo Water, No.2	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16285-27040	Hose, Turbo Water, No.2	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16304-27030	Outlet Sub-Assy, Water	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16321-27040	Inlet, Water	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16325-27010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16341-27010	Gasket, Water Outlet	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16347-0G010	Gasket, Water By-Pass	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16347-27020	Gasket, Water By-Pass	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16360-0G070	Fan Assy, W/motor	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16360-0G080	Fan Assy, W/motor	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16361-0G010	Fan	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16361-0G020	Fan, No.2	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16363-0G050	Motor, Cooling Fan	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16363-0G051	Motor, Cooling Fan	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16363-0G060	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16400-0G030	Radiator Assy	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16400-0G031	Radiator Assy	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16401-53010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16462-6A300	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16472-0G020	Hose, Breather	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16475-51010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16480-0G020	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16482-0G020	Tank Sub-Assy, Radiator Reserve	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16523-0D020	Cushion, Radiator Support	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16535-27010	Support, Radiator, Lower	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16571-0G011	Hose, Radiator, Inlet	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16572-0G010	Hose, Radiator, Outlet	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16711-0G030	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
16711-0G060	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90080-10187	Bolt (For Transaxle Housing & Transaxle Case Setting)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90080-34010	Plug, Radiator Drain Cock	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90099-05164	Nut	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90178-W0008	New Genuine Part	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90179-06299	Nut, Wire Adjusting, No.1	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90404-53055	Union, Vacuum Hose	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90466-41008	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90466-W0003	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90466-W0010	Clamp Or Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90467-13073	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90467-21010	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90469-14003	CLAMP	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90480-16044	Grommet	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
90916-03123	Thermostat	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
91511-J0625	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
91621-B0616	Bolt	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
91631-B0616	BOLT WWASHER	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
92112-60840	New Genuine Part	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([02.2004 - 08.2005] (0402-0508)1CDFTV)
