Search › Model › CUR10

CUR10

Toyota COROLLA-VERSO · 2004 · 3,190 parts · 172 categories

3,190 items

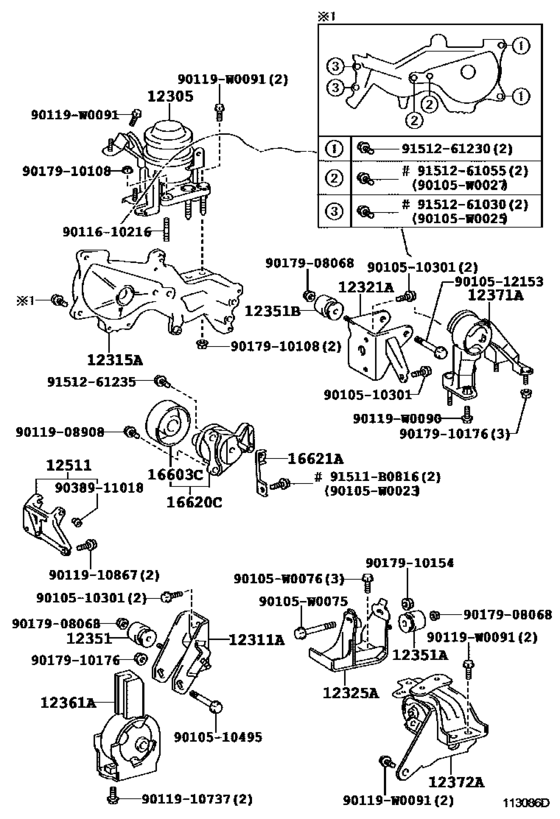

Mounting ([02.2004 - ] (0402- )1CDFTV) 44

#	OEM	Part name
12305	12305-27060	Insulator Sub-Assy, Engine Mounting, Rh
12311	12311-0G010	Bracket, Engine Mounting, Front(For Transverse Engine)
12315	12315-0G010	Bracket, Engine Mounting, Rh(For Transverse Engine)
12321	12321-0G020	Bracket, Engine Mounting, Rear(For Transverse Engine)
12321	12321-0G021	Bracket, Engine Mounting, Rear(For Transverse Engine)
12325	12325-0G010	Bracket, Engine Mounting, Lh(For Transverse Engine)
12351	12351-0D020	Damper, Engine Mounting
12351	12351-0D030	Damper, Engine Mounting(For Insulator)
12361	12361-0G020	Insulator, Engine Mounting, Front(For Transverse Engine)
12371	12371-0G010	Insulator, Engine Mounting, Rear - ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12372	12372-0G010	Insulator, Engine Mounting, Lh(For Transverse Engine)
12511	12511-0G010	Bracket, Alternator, No.1
12511	12511-27010	Bracket, Alternator, No.1
16603	16603-27010	Pulley Sub-Assy, Idler
16603	16603-27011	Pulley Sub-Assy, Idler
16620	16620-27020	Tensioner Assy, V-Ribbed Belt
16620	16620-27021	Tensioner Assy, V-Ribbed Belt
16621	16621-0G010	Bracket, V-Ribbed Belt Tensioner
16621	16621-27010	Bracket, V-Ribbed Belt Tensioner
90105	90105-W0023	New Genuine Part
90105	90105-W0025	New Genuine Part
90105	90105-W0027	New Genuine Part
90105	90105-W0075	New Genuine Part
90105	90105-W0076	New Genuine Part
90119	90119-W0090	New Genuine Part
90119	90119-W0091	New Genuine Part
91511	91511-B0816	BOLT
91511	90080-10159	New Genuine Part
9010510301	90105-10301	BOLT WASHER BASED
9010510495	90105-10495	BOLT FLANGE
9010512153	90105-12153	BOLT
9011610216	90116-10216	New Genuine Part
9011908908	90119-08908	BOLT WWASHER
9011910737	90119-10737	New Genuine Part
9011910867	90119-10867	BOLT WWASHER
9017908068	90179-08068	NUT
9017910108	90179-10108	NUT
9017910154	90179-10154	NUT
9017910176	90179-10176	NUT
9038911018	90389-11018	New Genuine Part
9151261030	91512-61030	Bolt (For Transaxle Case Upper Cover)
9151261055	91512-61055	BOLT, FLANGE
9151261230	91512-61230	BOLTFLANGE
9151261235	91512-61235	BOLT FLANGE

OEM	Part name	Category
12305-27060	Insulator Sub-Assy, Engine Mounting, Rh	Mounting ([02.2004 - ] (0402- )1CDFTV)
12311-0G010	Bracket, Engine Mounting, Front(For Transverse Engine)	Mounting ([02.2004 - ] (0402- )1CDFTV)
12315-0G010	Bracket, Engine Mounting, Rh(For Transverse Engine)	Mounting ([02.2004 - ] (0402- )1CDFTV)
12321-0G020	Bracket, Engine Mounting, Rear(For Transverse Engine)	Mounting ([02.2004 - ] (0402- )1CDFTV)
12321-0G021	Bracket, Engine Mounting, Rear(For Transverse Engine)	Mounting ([02.2004 - ] (0402- )1CDFTV)
12325-0G010	Bracket, Engine Mounting, Lh(For Transverse Engine)	Mounting ([02.2004 - ] (0402- )1CDFTV)
12351-0D020	Damper, Engine Mounting	Mounting ([02.2004 - ] (0402- )1CDFTV)
12351-0D030	Damper, Engine Mounting(For Insulator)	Mounting ([02.2004 - ] (0402- )1CDFTV)
12361-0G020	Insulator, Engine Mounting, Front(For Transverse Engine)	Mounting ([02.2004 - ] (0402- )1CDFTV)
12371-0G010	Insulator, Engine Mounting, Rear - ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)	Mounting ([02.2004 - ] (0402- )1CDFTV)
12372-0G010	Insulator, Engine Mounting, Lh(For Transverse Engine)	Mounting ([02.2004 - ] (0402- )1CDFTV)
12511-0G010	Bracket, Alternator, No.1	Mounting ([02.2004 - ] (0402- )1CDFTV)
12511-27010	Bracket, Alternator, No.1	Mounting ([02.2004 - ] (0402- )1CDFTV)
16603-27010	Pulley Sub-Assy, Idler	Mounting ([02.2004 - ] (0402- )1CDFTV)
16603-27011	Pulley Sub-Assy, Idler	Mounting ([02.2004 - ] (0402- )1CDFTV)
16620-27020	Tensioner Assy, V-Ribbed Belt	Mounting ([02.2004 - ] (0402- )1CDFTV)
16620-27021	Tensioner Assy, V-Ribbed Belt	Mounting ([02.2004 - ] (0402- )1CDFTV)
16621-0G010	Bracket, V-Ribbed Belt Tensioner	Mounting ([02.2004 - ] (0402- )1CDFTV)
16621-27010	Bracket, V-Ribbed Belt Tensioner	Mounting ([02.2004 - ] (0402- )1CDFTV)
90080-10159	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90105-10301	BOLT WASHER BASED	Mounting ([02.2004 - ] (0402- )1CDFTV)
90105-10495	BOLT FLANGE	Mounting ([02.2004 - ] (0402- )1CDFTV)
90105-12153	BOLT	Mounting ([02.2004 - ] (0402- )1CDFTV)
90105-W0023	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90105-W0025	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90105-W0027	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90105-W0075	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90105-W0076	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90116-10216	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90119-08908	BOLT WWASHER	Mounting ([02.2004 - ] (0402- )1CDFTV)
90119-10737	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90119-10867	BOLT WWASHER	Mounting ([02.2004 - ] (0402- )1CDFTV)
90119-W0090	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90119-W0091	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
90179-08068	NUT	Mounting ([02.2004 - ] (0402- )1CDFTV)
90179-10108	NUT	Mounting ([02.2004 - ] (0402- )1CDFTV)
90179-10154	NUT	Mounting ([02.2004 - ] (0402- )1CDFTV)
90179-10176	NUT	Mounting ([02.2004 - ] (0402- )1CDFTV)
90389-11018	New Genuine Part	Mounting ([02.2004 - ] (0402- )1CDFTV)
91511-B0816	BOLT	Mounting ([02.2004 - ] (0402- )1CDFTV)
91512-61030	Bolt (For Transaxle Case Upper Cover)	Mounting ([02.2004 - ] (0402- )1CDFTV)
91512-61055	BOLT, FLANGE	Mounting ([02.2004 - ] (0402- )1CDFTV)
91512-61230	BOLTFLANGE	Mounting ([02.2004 - ] (0402- )1CDFTV)
91512-61235	BOLT FLANGE	Mounting ([02.2004 - ] (0402- )1CDFTV)
