CUR10

Toyota COROLLA-VERSO · 2004 · 3,190 parts · 172 categories

← Back to categories

3,190 items

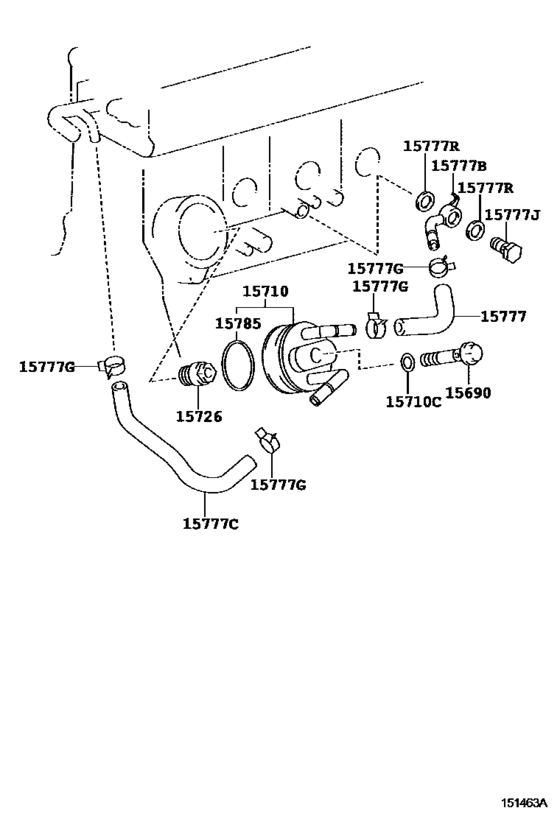

Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV) 13

#	OEM	Part name
15690	90401-19009	Valve Assy, Oil Cooler Relief
15710	15710-27030	Cooler Assy, Oil
15710	90301-24017	Gasket(For Oil Cooler)
15726	15726-27010	Connector, Oil Cooler Union Bolt
15777	15777-0G010	Hose, Oil Cooler
15777	15777-27020	Hose, Oil Cooler
15777	15768-27020	Pipe, Oil Cooler
15777	15778-0G010	Hose, Oil Cooler
15777	15778-27040	Hose, Oil Cooler
15777	96134-41900	Clip Or Clamp(For Ventilation Hose)
15777	90401-20004	Bolt, Union(For Oil Cooler Pipe)
15777	90430-20014	Gasket(For Oil Filter Bracket Union)
15785	15785-27010	Gasket, Oil Cooler

OEM	Part name	Category
15710-27030	Cooler Assy, Oil	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
15726-27010	Connector, Oil Cooler Union Bolt	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
15768-27020	Pipe, Oil Cooler	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
15777-0G010	Hose, Oil Cooler	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
15777-27020	Hose, Oil Cooler	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
15778-0G010	Hose, Oil Cooler	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
15778-27040	Hose, Oil Cooler	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
15785-27010	Gasket, Oil Cooler	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
90301-24017	Gasket(For Oil Cooler)	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
90401-19009	Valve Assy, Oil Cooler Relief	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
90401-20004	Bolt, Union(For Oil Cooler Pipe)	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
90430-20014	Gasket(For Oil Filter Bracket Union)	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Engine Oil Cooler ([02.2004 - ] (0402- )1CDFTV)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 172
Collected: 2026-08-02
