CUR10

Toyota COROLLA-VERSO · 2004 · 3,190 parts · 172 categories

← Back to categories

3,190 items

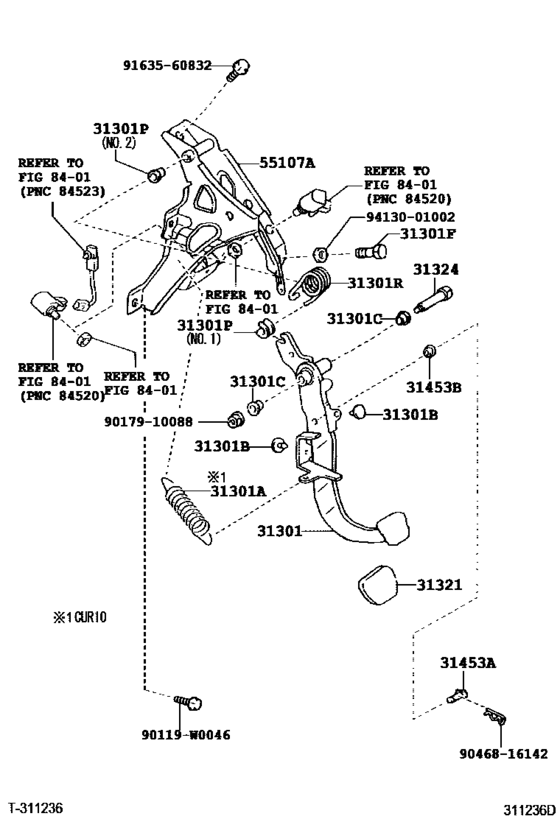

Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD) 19

#	OEM	Part name
31301	31301-0F040	Pedal Sub-Assy, Clutch
31301	90507-19005	Spring(For Clutch Pedal)
31301	90541-06036	Cushion, No.1(For Clutch Pedal)
31301	90386-13015	Bush(For Clutch Pedal)
31301	90101-10369	Bolt(For Clutch Pedal Stopper)
31301	90386-05017	Bush(For Clutch Pedal Turnover)
31301	90389-05019	Bush(For Clutch Pedal Turnover)
31301	90949-03122	Spring, Compression(For Turn Over Spring Seat)
31301	90949-03143	Spring, Compression(For Turn Over Spring Seat)
31321	31321-52010	Pad, Brake Pedal
31324	90109-10167	Shaft, Clutch Pedal
31453	90249-08143	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31453	90386-08002	Bush(For Clutch Pedal Over Center Spring Pin)
55107	55107-0F050	Support Sub-Assy, Clutch Pedal
90119	90119-W0046	New Genuine Part
9017910088	90179-10088	Nut
9046816142	90468-16142	Clip(For Push Rod Clevis Pin)
9163560832	91635-60832	New Genuine Part
9413001002	94130-01002	Nut, Booster Sleeve Cylinder

OEM	Part name	Category
31301-0F040	Pedal Sub-Assy, Clutch	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
31321-52010	Pad, Brake Pedal	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
55107-0F050	Support Sub-Assy, Clutch Pedal	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90101-10369	Bolt(For Clutch Pedal Stopper)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90109-10167	Shaft, Clutch Pedal	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90119-W0046	New Genuine Part	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90179-10088	Nut	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90249-08143	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90386-05017	Bush(For Clutch Pedal Turnover)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90386-08002	Bush(For Clutch Pedal Over Center Spring Pin)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90386-13015	Bush(For Clutch Pedal)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90389-05019	Bush(For Clutch Pedal Turnover)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90468-16142	Clip(For Push Rod Clevis Pin)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90507-19005	Spring(For Clutch Pedal)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90541-06036	Cushion, No.1(For Clutch Pedal)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90949-03122	Spring, Compression(For Turn Over Spring Seat)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
90949-03143	Spring, Compression(For Turn Over Spring Seat)	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
91635-60832	New Genuine Part	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
94130-01002	Nut, Booster Sleeve Cylinder	Clutch Pedal & Flexible Hose ([02.2004 - ] (0402- )AUR10,CUR10..RHD)
