Search › Model › CUR10
CUR10

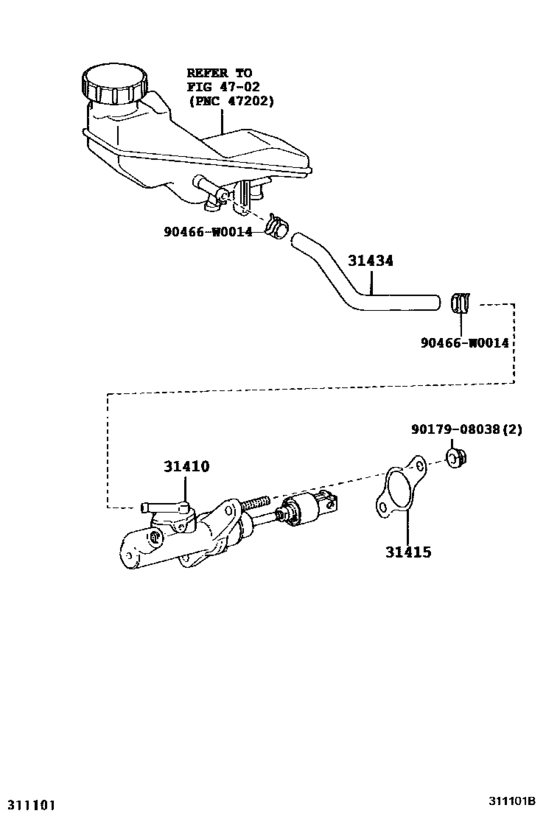

Clutch Master Cylinder ([02.2004 - ] (0402- )RHD..5F,6F) 6
| # | OEM | Part name |
|---|---|---|
| 31410 | 31420-05010 | Cylinder Assy, Clutch Master |
| 31410 | 31420-05011 | Cylinder Assy, Clutch Master |
| 31415 | 31415-10010 | Gasket, Clutch Master Cylinder |
| 31434 | 31434-0F010 | Tube, Clutch Reservoir |
| 90466 | 90466-W0014 | New Genuine Part |
| 9017908038 | 90179-08038 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 31415-10010 | Gasket, Clutch Master Cylinder | Clutch Master Cylinder ([02.2004 - ] (0402- )RHD..5F,6F) |
| 31420-05010 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([02.2004 - ] (0402- )RHD..5F,6F) |
| 31420-05011 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([02.2004 - ] (0402- )RHD..5F,6F) |
| 31434-0F010 | Tube, Clutch Reservoir | Clutch Master Cylinder ([02.2004 - ] (0402- )RHD..5F,6F) |
| 90179-08038 | Nut | Clutch Master Cylinder ([02.2004 - ] (0402- )RHD..5F,6F) |
| 90466-W0014 | New Genuine Part | Clutch Master Cylinder ([02.2004 - ] (0402- )RHD..5F,6F) |
