CUR10

Toyota COROLLA-VERSO · 2004 · 3,190 parts · 172 categories

← Back to categories

3,190 items

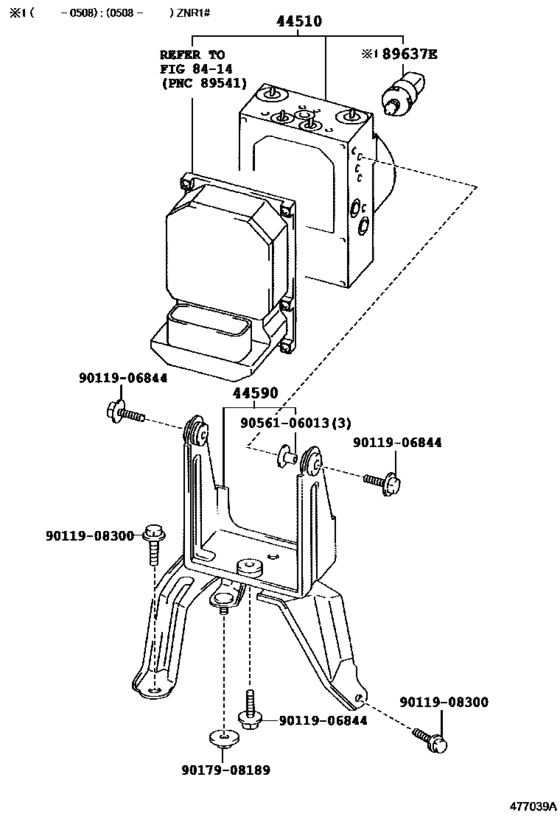

Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#) 10

#	OEM	Part name
44510	44050-0F010	Actuator Assy, Brake
44510	44050-0F020	Actuator Assy, Brake
44510	44050-0F021	Actuator Assy, Brake
44590	44590-05020	Bracket Assy, Brake Actuator
44590	44590-05030	Bracket Assy, Brake Actuator
89637	89637-07010	Sensor, Oil Pressure
9011906844	90119-06844	Bolt, Brake Actuator Cushion
9011908300	90119-08300	New Genuine Part
9017908189	90179-08189	NUT
9056106013	90561-06013	Spacer(For Height Control Compressor Bracket)

OEM	Part name	Category
44050-0F010	Actuator Assy, Brake	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)
44050-0F020	Actuator Assy, Brake	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)
44050-0F021	Actuator Assy, Brake	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)
44590-05020	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)
44590-05030	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)
89637-07010	Sensor, Oil Pressure	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)
90119-06844	Bolt, Brake Actuator Cushion	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)
90119-08300	New Genuine Part	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)
90179-08189	NUT	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)
90561-06013	Spacer(For Height Control Compressor Bracket)	Brake Tube & Clamp ([02.2004 - ] W(VSC) (0402- )CUR10,ZNR1#)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 172
Collected: 2026-08-02
