Search › Model › CU2W
CU2W

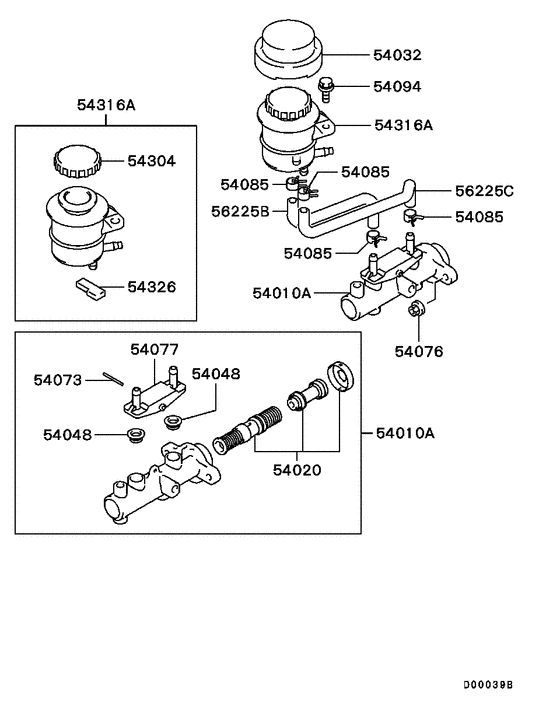

Brake master cylinder 13
| # | OEM | Part name |
|---|---|---|
| 54010 | MR289188 | CYLINDER ASSY, BRAKE MASTER |
| 54020 | MR407150 | CYLINDER KIT, BRAKE MASTER - 1; |
| 54048 | MR244929 | SEAL, CLUTCH M/CYL |
| 54073 | MR334065 | PIN, BRAKE M/CYL - Spring |
| 54076 | MR129264 | NUT, BRAKE M/CYL - Washer assembled,8 |
| 54077 | MR493148 | NIPPLE, BRAKE M/CYL INR |
| 54085 | MB058362 | CLIP, FUEL VAPOR CONTROL LINE - 13.2 |
| 54094 | MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 |
| 54304 | MR475354 | CAP, BRAKE FLUID RESERVOIR |
| 54316 | MR370276 | RESERVOIR ASSY, BRAKE FLUID |
| 54326 | MR334064 | SWITCH, BRAKE FLUID LEVEL INDICATOR |
| 56225 | MR493371 | HOSE, BRAKE M/CYL FLUID RESERVOIR |
| 56225 | MR493372 | HOSE, BRAKE M/CYL FLUID RESERVOIR |
| OEM | Part name | Category |
|---|---|---|
| MB058362 | CLIP, FUEL VAPOR CONTROL LINE - 13.2 | Brake master cylinder |
| MR129264 | NUT, BRAKE M/CYL - Washer assembled,8 | Brake master cylinder |
| MR244929 | SEAL, CLUTCH M/CYL | Brake master cylinder |
| MR289188 | CYLINDER ASSY, BRAKE MASTER | Brake master cylinder |
| MR334064 | SWITCH, BRAKE FLUID LEVEL INDICATOR | Brake master cylinder |
| MR334065 | PIN, BRAKE M/CYL - Spring | Brake master cylinder |
| MR370276 | RESERVOIR ASSY, BRAKE FLUID | Brake master cylinder |
| MR407150 | CYLINDER KIT, BRAKE MASTER - 1; | Brake master cylinder |
| MR475354 | CAP, BRAKE FLUID RESERVOIR | Brake master cylinder |
| MR493148 | NIPPLE, BRAKE M/CYL INR | Brake master cylinder |
| MR493371 | HOSE, BRAKE M/CYL FLUID RESERVOIR | Brake master cylinder |
| MR493372 | HOSE, BRAKE M/CYL FLUID RESERVOIR | Brake master cylinder |
| MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 | Brake master cylinder |
