CT220

Toyota AVENSIS · 1997 · 4,255 parts · 195 categories
CT220 ×

← Back to categories

4,255 items

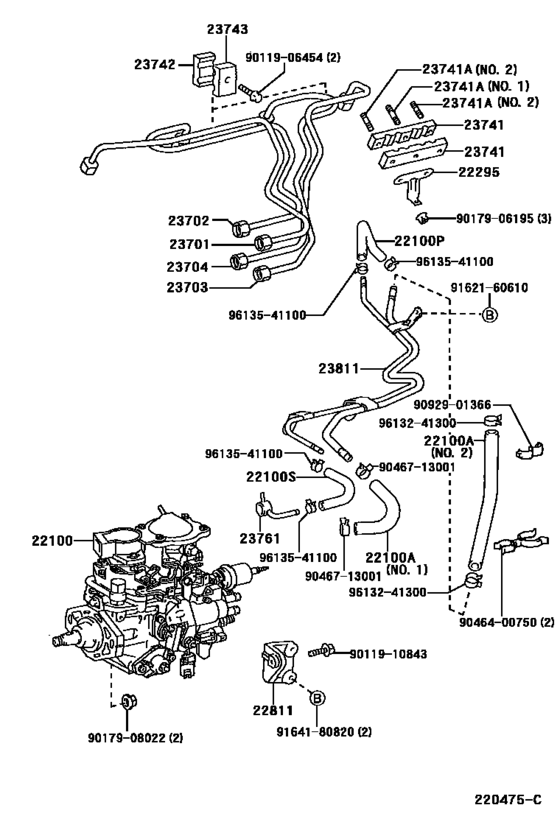

Injection Pump Assembly ([10.1997 - 07.2000] (9710-0007)2CT#) 35
#OEMPart name
22100 22100-6E140 Pump Assy, Injection Or Supply
22100 23273-64030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 23273-64110 Hose, Fuel(For Fuel Pipe To Fuel Tube)
22100 23274-64020 Hose, Fuel(For Injection Pump To Fuel Pipe)
22811 22811-64020 Stay, Injection Pump, No.1
23701 23701-64110 Pipe Sub-Assy, Injection, No.1
23702 23702-64110 Pipe Sub-Assy, Injection, No.2
23703 23703-64090 Pipe Sub-Assy, Injection, No.3
23704 23704-64110 Pipe Sub-Assy, Injection, No.4
23741 23741-64010 Clamp, Injection Pipe, No.1
23741 23741-64011 Clamp, Injection Pipe, No.1
23741 90116-06275 Bolt, Stud(For Injection Pipe Clamp)
23741 90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)
23741 92122-60622 Bolt, Stud(For Injection Pipe Clamp)
23742 23741-54010 Clamp, Injection Pipe, No.1
23743 23742-54010 Clamp, Injection Pipe, No.2
23761 23764-64110 Pipe, Nozzle Leakage, No.1
23811 23811-64110 Pipe, Fuel(For Fuel Filter To Injection Pump)
9011906454 90119-06454 Bolt
9011910843 90119-10843 BOLT WWASHER
9017906195 90179-06195 New Genuine Part
9017908022 90179-08022 NUT
9046400750 90464-00750 New Genuine Part
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9092901366 90929-01366 New Genuine Part
9162160610 91621-60610 New Genuine Part
9162160610 91651-B0612 Bolt
9164180820 91641-80820 Bolt(For Transaxle & Engine Setting)
9164180820 91641-H0820 Bolt
9613241300 96132-41300 Clip, No.4(For Idle-Up Hose)
9613241300 96132-51300 Clip(For Ventilation Hose No.2)
9613541100 96135-41100 Clamp Or Clip, Hose(For Water By-Pass Pipe)
9613541100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
