CT220

Toyota AVENSIS · 1997 · 4,255 parts · 195 categories
CT220 ×

← Back to categories

4,255 items

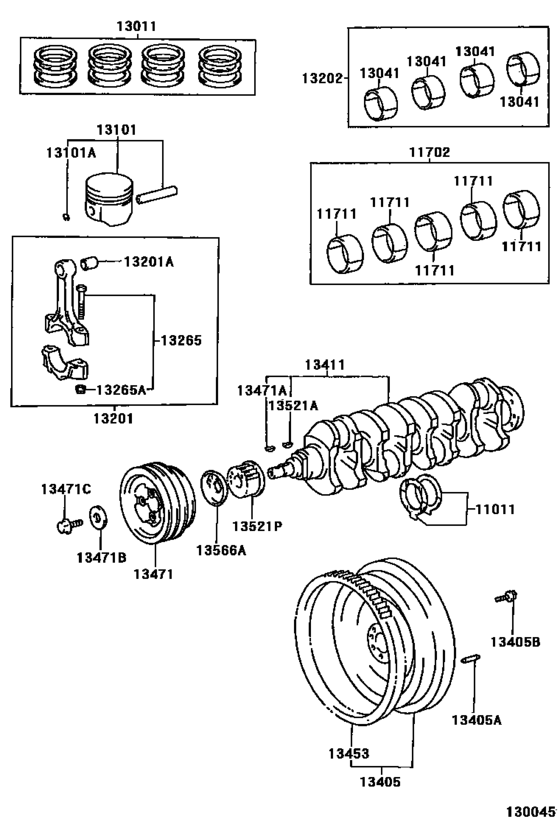

Crankshaft & Piston ([10.1997 - 07.2000] (9710-0007)2CT#) 69
#OEMPart name
11011 11011-64010 Washer Set, Crankshaft Thrust
11011 11012-64010 Washer Set, Crankshaft Thrust
11011 11013-64010 Washer Set, Crankshaft Thrust
11702 11704-27021 Bearing Set, Crankshaft
11702 11704-27023 Bearing Set, Crankshaft
11702 11704-64071 Bearing Set, Crankshaft
11711 11701-27011-01 Bearing, Crankshaft
11711 11701-27013-01 Bearing, Crankshaft
11711 11701-27011-02 Bearing, Crankshaft
11711 11701-27013-02 Bearing, Crankshaft
11711 11701-27011-03 Bearing, Crankshaft
11711 11701-27013-03 Bearing, Crankshaft
11711 11701-27011-04 Bearing, Crankshaft
11711 11701-27013-04 Bearing, Crankshaft
11711 11701-27011-05 Bearing, Crankshaft
11711 11701-27013-05 Bearing, Crankshaft
11711 11701-64071-01 Bearing, Crankshaft
11711 11701-64071-02 Bearing, Crankshaft
11711 11701-64071-03 Bearing, Crankshaft
11711 11701-64071-04 Bearing, Crankshaft
11711 11701-64071-05 Bearing, Crankshaft
13011 13011-64212 Ring Set, Piston
13011 13011-64213 Ring Set, Piston
13011 13013-64212 Ring Set, Piston
13011 13013-64213 Ring Set, Piston
13041 13041-64072-01 Bearing, Connecting Rod
13041 13041-64073-01 Bearing, Connecting Rod
13041 13041-64072-02 Bearing, Connecting Rod
13041 13041-64073-02 Bearing, Connecting Rod
13041 13041-64072-03 Bearing, Connecting Rod
13041 13041-64073-03 Bearing, Connecting Rod
13041 13041-64072-04 Bearing, Connecting Rod
13041 13041-64073-04 Bearing, Connecting Rod
13041 13041-64072-05 Bearing, Connecting Rod
13041 13041-64073-05 Bearing, Connecting Rod
13101 13101-64180-01 Piston Sub-Assy, W/pin
13101 13101-64181-01 Piston Sub-Assy, W/pin
13101 13101-64180-02 Piston Sub-Assy, W/pin
13101 13101-64181-02 Piston Sub-Assy, W/pin
13101 13101-64180-03 Piston Sub-Assy, W/pin
13101 13101-64181-03 Piston Sub-Assy, W/pin
13101 13103-64180 Piston Sub-Assy, W/pin
13101 13103-64181 Piston Sub-Assy, W/pin
13101 90521-29003 Ring, Hole Snap(For Piston Pin)
13201 13201-64032 Rod Sub-Assy, Connecting
13201 90999-73138 Bush(For Connecting Rod Small End)
13202 13204-64072 Bearing Set, Connecting Rod
13202 13204-64073 Bearing Set, Connecting Rod
13265 13265-49045 Bolt, Connecting Rod
13265 90179-10042 Nut, Hexagon(For Connecting Rod Bolt)
13405 13405-64060 Flywheel Sub-Assy
13405 90250-08054 Pin, Straight
13405 90105-10071 Bolt, Flywheel Setting
13411 13411-64908 Crankshaft
13411 13401-64010 Crankshaft
13411 90105-16079 Bolt(For Crankshaft Pulley Set)
13411 90560-16025 Washer, Plate(For Crankshaft Pulley Set)
13411 13411-64910 Crankshaft
13453 13453-64011 Gear, Flywheel Ring
13471 13408-64130 Pulley, Crankshaft
13471 90280-05007 Key, Crankshaft(For Crankshaft Pulley Set)
13471 95161-30516 Key(For Oil Pump Drive Spline)
13471 90201-14030 Washer, Plate(For Crankshaft Pulley Set)
13471 90105-14089 Bolt(For Crankshaft Pulley Set)
13471 90105-16064 Bolt(For Crankshaft Pulley Set)
13521 90280-06001 Key(For Crankshaft Timing Gear)
13521 95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)
13521 13521-64011 Pulley, Crankshaft Timing
13566 13566-64011 Guide, Timing Belt
