Search › Model › CT216

CT216

Toyota CALDINA · 1997 · 5,095 parts · 192 categories

← Back to categories

5,095 items

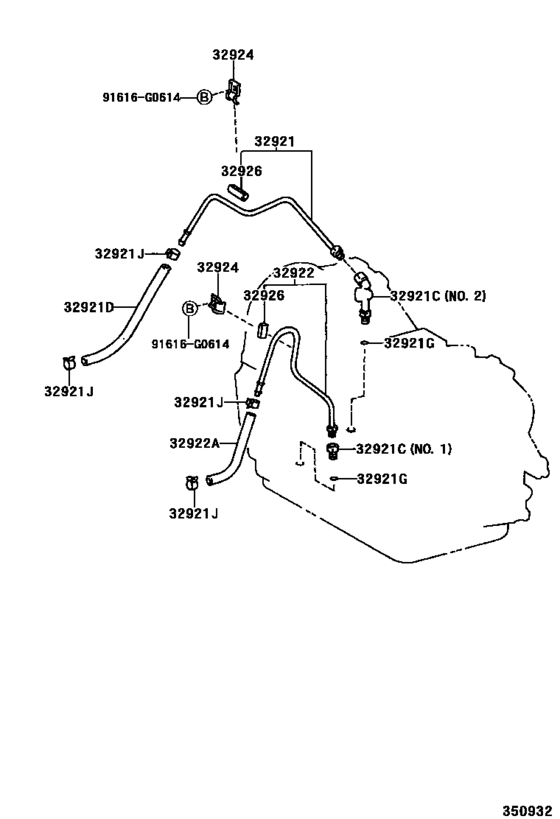

Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216) 15

#	OEM	Part name
32921	32921-21060	Tube, Oil Cooler Inlet, No.1
32921	32921-21090	Tube, Oil Cooler Inlet, No.1
32921	32901-21020	Union(For Oil Cooler Tube)
32921	90404-14007	Union(For Oil Cooler Tube)
32921	90407-16032	Union(For Oil Cooler Tube)
32921	90445-15052	Hose(For Oil Cooler Inlet)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	90467-13039	Clamp, Hose
32921	96135-51300	Clamp, Hose
32922	32922-21070	Tube, Oil Cooler Outlet, No.1
32922	90445-15042	Hose(For Oil Cooler Inlet)
32924	90462-10082	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-22010	Cushion, Oil Cooler Tube(Atm)
91616	91616-G0614	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
91616	91611-G0612	Bolt

OEM	Part name	Category
32901-21020	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
32921-21060	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
32921-21090	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
32922-21070	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
32926-22010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
90404-14007	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
90407-16032	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
90445-15042	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
90445-15052	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
90462-10082	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
90467-13039	Clamp, Hose	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
91616-G0614	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)
96135-51300	Clamp, Hose	Oil Cooler & Tube (Atm) ([08.1997 - ] A241F (9708- )CT216)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 192
Collected: 2026-08-02
