CT216

Toyota CALDINA · 1997 · 5,095 parts · 192 categories
CT216 ×

← Back to categories

5,095 items

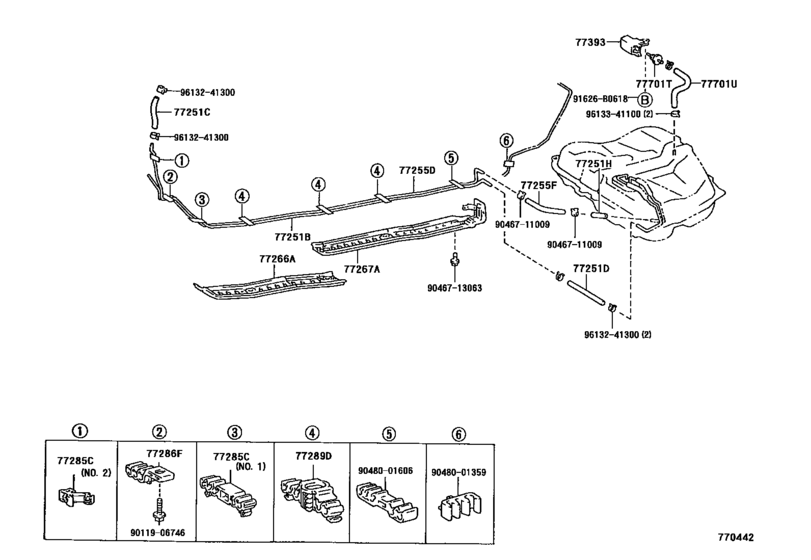

Fuel Tank & Tube ([08.1997 - ] (9708- )CT216) 30
#OEMPart name
77251 77251-20790 Tube, Fuel Main
77251 95333-08020 Hose, Lpg Injector
77251 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77251 32926-22020 Cushion, Oil Cooler Tube(Atm)
77255 77255-20660 Tube, Fuel Return
77255 77259-32070 Hose, Fuel, No.2 (For Fuel Return Tube)
77266 77266-20120 Protector, Fuel Tube, No.1
77267 77267-20110 Protector, Fuel Tube, No.2
77285 77285-12020 Clamp, Fuel Tube W/grommet, No.1
77285 77285-20120 Clamp, Fuel Tube W/grommet, No.1
77286 77286-20090 Clamp, Fuel Tube, No.1
77289 77298-12030 Clamp, Fuel Tube, No.1
77289 77298-20040 Clamp, Fuel Tube, No.1
77393 77393-20010 Protector, Check Valve
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
77701 95333-06030 Hose, Fuel
77701 95338-06030 HOSE, FUEL
91626 91626-B0618 BOLTWWASHER
91626 91621-J0614 BOLT W-WASHER
9011906746 90119-06746 New Genuine Part
9011906746 91631-J0612 BRACKET
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713063 90467-13063 New Genuine Part
9048001359 90480-01359 New Genuine Part
9048001606 90480-01606 GROMMET
9613241300 96132-41300 Clip, No.4(For Idle-Up Hose)
9613241300 96132-51300 Clip(For Ventilation Hose No.2)
9613341100 96133-41100 Clip(For Actuator Hose)
9613341100 96132-51100 Clip (For Hose)
