CT215

Toyota CARINA · 1996 · 4,223 parts · 173 categories

4,223 items

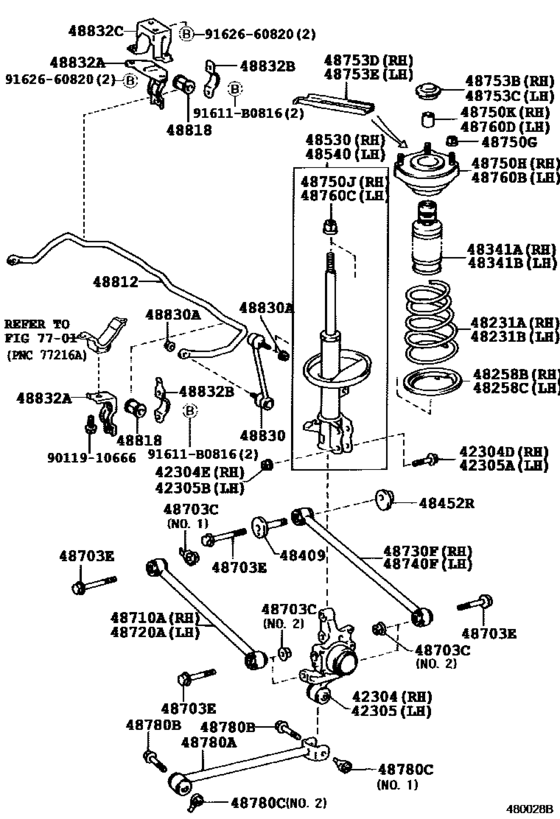

Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215) 48

#	OEM	Part name
42304	42304-20210	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42305-20210	Carrier Sub-Assy, Rear Axle, Lh
48231	48231-2D610	Spring, Coil, Rear Rh
48258	48258-32010	Insulator, Rear Coil Spring, Lower
48341	48341-20280	Bumper, Rear Spring, No.1 Rh
48409	48409-32030	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-32030	Plate, Rear Suspension Toe Adjust, No.2
48530	48530-29535	Absorber Assy, Shock, Rear Rh
48530	48530-29525	Absorber Assy, Shock, Rear Rh
48540	48540-29205	Absorber Assy, Shock, Rear Lh
48703	90179-12100	Nut(For Rear Suspension Arm)
48703	90179-14019	Nut
48703	90119-12126	Bolt(For Rear Suspension Arm)
48703	90901-19002	Bolt(For Rear Suspension Arm)
48703	90901-19003	Bolt(For Rear Suspension Arm)
48703	90901-19046	Bolt(For Rear Suspension Arm)
48703	90119-12438	Bolt(For Rear Suspension Arm)
48710	48710-20270	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-20230	Arm Assy, Rear Suspension, No.2 Rh
48730	48730-21020	Arm Assy, Rear Suspension, No.2 Rh
48750	90179-08122	Nut(For Rear Suspension Support)
48750	48750-20150	Support Assy, Rear Suspension, Rh
48750	94184-61400	Nut(For Idler Arm Support)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48753	48753-20040	Cover, Rear Suspension Supoport, No.1 Rh
48753	48753-20070	Cover, Rear Suspension Supoport, No.2 Rh
48780	48780-32060	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90179-12091	Nut(For Front Suspension Lower Arm)
48780	90179-12114	Nut(For Strut Rod)
48812	48805-20140	Bar, Stabilizer, Rear
48812	48812-20800	Bar, Stabilizer, Rear
48812	48818-21020	Bush, Stabilizer, Rear
48812	48832-32050	Bracket, Rear Stabilizer Bar, Lh
48812	48832-32060	Bracket, Rear Stabilizer Bar, Lh
48812	48832-32070	Bracket, Rear Stabilizer Bar, No.1
48812	48832-32080	Bracket, Rear Stabilizer Bar, Rh
48812	91611-B0816	Bolt
48818	48818-32080	Bush, Stabilizer, Rear
48830	48830-32040	Link Assy, Rear Stabilizer
48830	90179-10183	Nut(For Front Stabilizer Link)
48832	48832-32090	Bracket, Rear Stabilizer Bar, No.3
9011910666	90119-10666	New Genuine Part
9162660820	91626-60820	BOLT WWASHER
9162660820	91621-B0816	BOLT WWASHER

OEM	Part name	Category
42304-20210	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
42305-20210	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48231-2D610	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48258-32010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48341-20280	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48409-32030	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48452-32030	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48530-29525	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48530-29535	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48540-29205	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48710-20270	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48730-20230	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48730-21020	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48750-20150	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48753-20040	Cover, Rear Suspension Supoport, No.1 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48753-20070	Cover, Rear Suspension Supoport, No.2 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48780-32060	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48805-20140	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48812-20800	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48818-21020	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48818-32080	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48830-32040	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48832-32050	Bracket, Rear Stabilizer Bar, Lh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48832-32060	Bracket, Rear Stabilizer Bar, Lh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48832-32070	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48832-32080	Bracket, Rear Stabilizer Bar, Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
48832-32090	Bracket, Rear Stabilizer Bar, No.3	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90119-10666	New Genuine Part	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90119-12126	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90119-12438	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90179-12100	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90179-12114	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90179-14019	Nut	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90901-19002	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90901-19003	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
90901-19046	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
91621-B0816	BOLT WWASHER	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
91626-60820	BOLT WWASHER	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
94184-61400	Nut(For Idler Arm Support)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )CT215,216,ST215)
