CT215

Toyota CARINA · 1996 · 4,223 parts · 173 categories
CT215 ×

← Back to categories

4,223 items

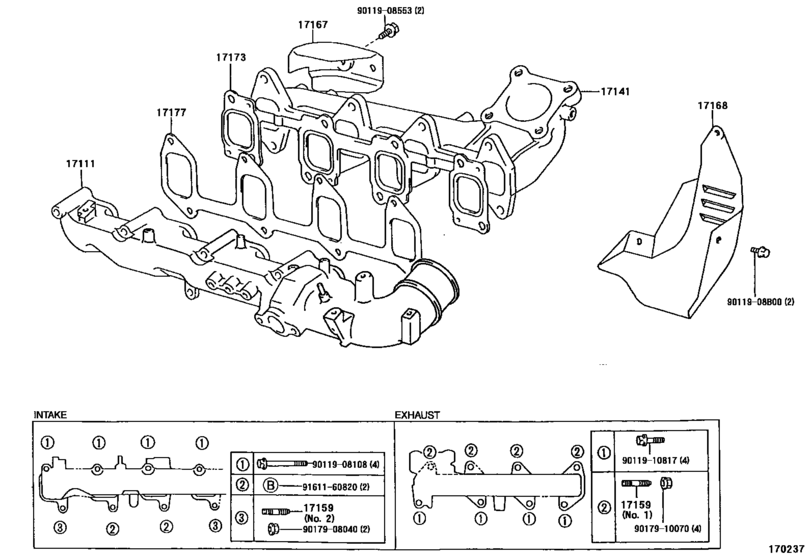

Manifold ([08.1996 - 08.1998] (9608-9808)2CT) 86
#OEMPart name
4175 04175-64050 Gasket Kit, Turbocharger
4175 04175-64051 Gasket Kit, Turbocharger
4176 04176-54040 Seal Kit, Turbocharger
15407 15407-64060 Pipe Sub-Assy, Turbo Oil Inlet
15407 15407-64061 Pipe Sub-Assy, Turbo Oil Inlet
15407 90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe)
15407 90430-10027 Gasket, W/head Straight Screw Plug
15471 15471-64010 Gasket, Turbo Oil Inlet
15474 15476-64010 Pipe, Turbo Oil Outlet
15474 15491-64020 Hose, Turbo Oil Outlet
15474 90467-23003 Clip(For Ventilation Hose)
15474 96134-42300 Clip Or Clamp(For Ventilation Hose)
16347 16347-42020 Gasket, Water By-Pass
17021 17021-54060 Housing Sub-Assy, Bearing
17021 90116-06048 Bolt, Stud(For Oil Pan)
17021 90116-08158 Bolt, Stud(For Bearing Housing)
17021 90521-99007 Ring, Hole Snap(For Bearing Housing)
17025 90116-08384 Bolt, Stud(For Turbine Housing)
17111 17101-64140 Manifold, Intake
17118 17118-64050 Stay, Manifold
17141 17141-64161 Manifold, Exhaust
17141 90116-10148 Bolt, Stud(For Turbocharger)
17159 90126-10017 Bolt, Stud(For Exhaust Manifold, Rh)
17159 92122-60820 Bolt, Stud(For Water Outlet)
17167 17167-64031 Insulator, Exhaust Manifold Heat, No.1
17168 17168-64070 Insulator, Exhaust Manifold Heat, No.2
17168 17168-64071 Insulator, Exhaust Manifold Heat, No.2
17173 17173-64051 Gasket, Exhaust Manifold To Head
17177 17177-64020 Gasket, Intake Manifold To Head, No.1
17201 17201-64110 Turbocharger Sub-Assy
17224 17024-64080 Housing, Compressor
17229 17229-67010 Band, V
17230 17230-69075 Repair Actuaor Assy, W/bracket
17230 90201-08081 Washer, Plate(For Repair Actuator Set)
17230 90201-08082 Washer, Plate(For Repair Actuator Set)
17230 90201-08086 Washer, Plate(For Repair Actuator Set)
17230 90201-08087 Washer, Plate(For Repair Actuator Set)
17230 91621-60822 Bolt, W/washer(For Repair Actuator Set)
17271 17271-64071 Insulator, Turbo, No.1
17272 17272-64041 Insulator, Turbo, No.2
17278 17278-64030 Gasket, Turbo To Exhaust Manifold
17278 17278-64031 Gasket, Turbo To Exhaust Manifold
17279 17279-55011 Gasket, Turbine Outlet Elbow
17279 17279-64020 Gasket, Turbine Outlet Elbow
17288 17288-64010 Insulator, Turbo, No.3
17288 17288-64011 Insulator, Turbo, No.3
17288 17288-64012 Insulator, Turbo, No.3
17291 17291-64090 Elbow, Turbine Outlet
17291 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
17291 17291-64091 Elbow, Turbine Outlet
17293 17293-64060 Stay, Turbocharger
17294 17294-17010 Hose, Actuator
17294 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
17294 96132-51100 Clip (For Hose)
17296 17296-28010 Plate, Bearing Housing, Side
17341 17341-64080 Hose, Air
17341 90460-57002 Clamp Or Clip(For Air Hose, No.1)
17341 90460-65004 Clamp Or Clip(For Air Hose, No.1)
17341 90460-65002 Clamp Or Clip(For Air Hose, No.1)
17341 90467-53002 Clamp, Hose
9011908 90119-08B00 New Genuine Part
9011206003 90112-06003 New Genuine Part
9011608056 90116-08056 Bolt, Stud(For Manifold Stay)
9011608068 90116-08068 Bolt, Stud
9011908108 90119-08108 Bolt(For Clutch Master Cylinder Setting)
9011908374 90119-08374 Bolt
9011908553 90119-08553 New Genuine Part
9011910817 90119-10817 New Genuine Part
9017906018 90179-06018 New Genuine Part
9017908012 90179-08012 NUT
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017908266 90179-08266 New Genuine Part
9017910070 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
9017910070 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
9017910094 90179-10094 NUT
9025403013 90254-03013 New Genuine Part
9052304002 90523-04002 RING
9151160820 91511-60820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9161160820 91611-G0820 Bolt
9162160818 91621-60818 Bolt(For Automatic Transmission Case Protector)
9162160818 91651-B0820 Bolt, Radiator Side Support Plate
9163560618 91635-60618 New Genuine Part
9163560618 91631-B0614 BOLT WWASHER
9164281020 91642-81020 New Genuine Part
9164281020 91642-K1020 BOLT WWASHER
