Search › Model › CT215

CT215

Toyota CARINA · 1996 · 4,223 parts · 173 categories

4,223 items

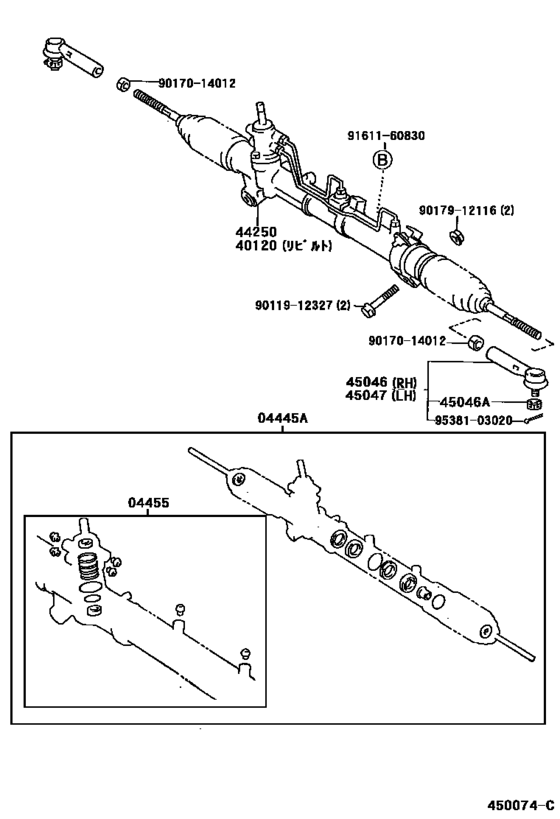

Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215) 56

#	OEM	Part name
4445	04445-20161	Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455	04455-20120	Gasket Kit, Power Steering Control Valve Overhole
40120	40120-20732	Gear Assy,power Steering,rebuilt
44015	44015-22020	Nut Sub-Assy, Bearing Guide
44015	90301-43002	Ring, O(For Bearing Guide Nut)
44015	90310-25004	Seal, Oil(For Bearing Guide Nut)
44020	90119-10739	Bolt(For Power Steering Pressure Control Valve)
44201	44201-20401	Valve Sub-Assy, Power Steering Control
44201	90562-33007	Ring(For Power Steering Control Valve)
44201	90311-19002	Seal, Oil(For Adjuster Plug)
44201	90363-19003	Bearing(For Rear Steering Control Valve Housing)
44203	44203-20350	Housing Sub-Assy, Power Steering Rack
44204	44204-20290	Rack Sub-Assy, Power Steering
44204	90301-36005	Ring(For Rack Steering Piston)
44204	90562-39001	Ring(For Rack Steering Piston)
44206	90310-25017	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206	90310-25035	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206	90560-26013	Spacer, No.1(For Power Steering Cylinder Tube)
44210	44210-20481	Valve Assy, Power Steering Control
44210	90410-06005	Seat, Union(Pressure Control Valve Assy)
44210	90301-51001	Ring, O(For Adjuster Plug)
44211	44211-44010	Housing, Control Valve
44250	44250-20732	Gear Assy, Power Steering(For Rack & Pinion)
44253	90364-13003	Bearing(For Power Steering Control Valve Lower)
44275	44275-20110	Stopper, Cylinder End
44275	90386-25004	Bush(For Cylinder End Stopper)
44275	90301-38003	Ring, O(For Rack End Guide)
44277	44277-20050	Seat, Rack Guide
44418	44418-20260	Tube, Steering Right Turn Pressure
44418	90410-04002	Seat, Union(For Power Steering Rack Housing)
44419	44419-20340	Tube, Steering Left Turn Pressure
45046	45046-29265	End Sub-Assy, Tie Rod, Rh
45046	45046-19175	End Sub-Assy, Tie Rod
45046	90171-12028	Nut, Castle(For Pitman Arm)
45222	45222-32010	Cover, Dust(For Power Steering Gear)
45503	45503-29625	End Sub-Assy, Steering Rack
45503	90214-14002	Washer, Claw(For Power Steering Rack End)
45515	45515-20280	Bracket, Steering Rack Housing, No.2
45517	45517-20130	Grommet, Steering Rack Housing, No.2
45523	45523-20050	Guide, Rack(For Steering Gear)
45523	90501-23007	Spring(For Power Steering Rack Guide)
45523	90501-26063	Spring(For Power Steering Rack Guide)
45524	45524-20040	Cap, Rack Guide Spring(For Power Steering)
45524	90179-36002	Nut(For Power Steering Pinion Cap)
45535	45535-20290	Boot, Steering Rack, No.1
45535	90467-19012	Clip
45535	90467-19019	Clip
45535	90460-49004	Clamp(For Steering Rack Boot No.1)
9011912327	90119-12327	New Genuine Part
9017014012	90170-14012	Nut, Rack End Lock
9017912116	90179-12116	New Genuine Part
9020822002	90208-22002	LEXWASHERCONE SPRG
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)
9161160830	91611-60830	Bolt(For Clutch Release Cylinder Setting)
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
04445-20161	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
04455-20120	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
40120-20732	Gear Assy,power Steering,rebuilt	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44015-22020	Nut Sub-Assy, Bearing Guide	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44201-20401	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44203-20350	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44204-20290	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44210-20481	Valve Assy, Power Steering Control	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44211-44010	Housing, Control Valve	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44250-20732	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44275-20110	Stopper, Cylinder End	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44277-20050	Seat, Rack Guide	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44418-20260	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
44419-20340	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
45046-19175	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
45046-29265	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
45222-32010	Cover, Dust(For Power Steering Gear)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
45503-29625	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
45515-20280	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
45517-20130	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
45523-20050	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
45524-20040	Cap, Rack Guide Spring(For Power Steering)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
45535-20290	Boot, Steering Rack, No.1	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90119-10739	Bolt(For Power Steering Pressure Control Valve)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90119-12327	New Genuine Part	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90170-14012	Nut, Rack End Lock	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90179-12116	New Genuine Part	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90208-22002	LEXWASHERCONE SPRG	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90301-36005	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90301-38003	Ring, O(For Rack End Guide)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90301-43002	Ring, O(For Bearing Guide Nut)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90301-51001	Ring, O(For Adjuster Plug)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90310-25004	Seal, Oil(For Bearing Guide Nut)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90310-25017	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90310-25035	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90311-19002	Seal, Oil(For Adjuster Plug)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90363-19003	Bearing(For Rear Steering Control Valve Housing)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90364-13003	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90386-25004	Bush(For Cylinder End Stopper)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90410-04002	Seat, Union(For Power Steering Rack Housing)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90410-06005	Seat, Union(Pressure Control Valve Assy)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90460-49004	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90467-19012	Clip	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90467-19019	Clip	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90501-23007	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90501-26063	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90560-26013	Spacer, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90562-33007	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
90562-39001	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
91511-60825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([08.1996 - ] (9608- )CT215,216,ST215)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 173
Collected: 2026-08-02
