Search › Model › CT215

CT215

Toyota CARINA · 1996 · 4,223 parts · 173 categories
CT215 ×

← Back to categories

4,223 items

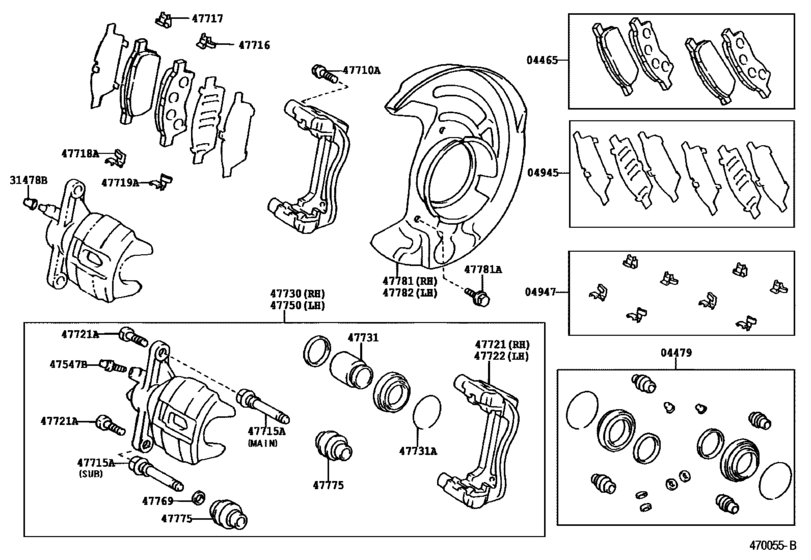

Front Disc Brake Caliper & Dust Cover ([08.1996 - 08.1998] (9608-9808) ; (9808- )AT211,212,CT21#,ST215) 29
#OEMPart name
4465 04465-20130 Pad Kit, Disc Brake, Front
4479 04479-20250 Cylinder Kit, Disc Brake, Front
4479 04479-20170 Cylinder Kit, Disc Brake, Front
4945 04945-32170 Shim Kit, Anti Squeal, Front
4945 04945-32171 Shim Kit, Anti Squeal, Front
4947 04947-33100 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-20010 Plug, Bleeder(For Release Cylinder)
47710 90105-12131 Bolt, Hexagon(For Front Disc Brake Caliper)
47710 90119-12040 Bolt, Hexagon(For Front Disc Brake Caliper)
47715 47715-50010 Pin, Disc Brake Cylinder Slide
47715 47715-50030 Pin, Disc Brake Cylinder Slide
47716 47716-33050 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47716-33060 Plate, Pad Support, No.2(For Front Disc Brake)
47718 47717-20150 Plate, Pad Support, No.2(For Front Disc Brake)
47719 47717-20160 Plate, Pad Support, No.1(For Front Disc Brake)
47721 47721-20371 Mounting, Front Disc Brake Cylinder, Rh
47721 90105-08164 Bolt(For Front Disc Brake Cylinder Slide)
47722 47722-20081 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-20481 Cylinder Assy, Front Disc Brake, Rh
47731 47731-20190 Piston, Front Disc Brake
47731 90522-66001 Ring, Set(For Front Disc Brake Piston)
47750 47750-20481 Cylinder Assy, Disc Brake, Lh
47769 47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-20080 Boot, Bush Dust(For Front Disc Brake)
47775 47775-50010 Boot, Bush Dust(For Front Disc Brake)
47781 47781-20280 Cover, Disc Brake Dust, Front Rh
47781 90109-06134 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782 47782-20280 Cover, Disc Brake Dust, Front Lh
