CT215

Toyota CARINA · 1996 · 4,223 parts · 173 categories
CT215 ×

← Back to categories

4,223 items

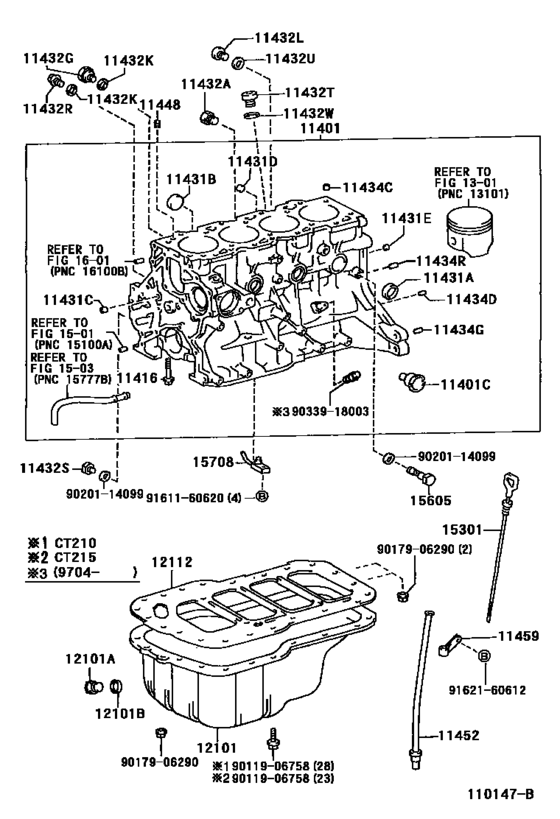

Cylinder Block ([08.1996 - 08.1998] (9608-9808)2CT) 51
#OEMPart name
11401 11401-69685 Block Sub-Assy, Cylinder
11401 11401-69688 Block Sub-assy, Cylinder
11401 11381-64020 Retainer, Engine Rear Oil Seal
11401 11701-27013-01 Bearing, Crankshaft
11401 11701-27013-02 Bearing, Crankshaft
11401 11701-27013-03 Bearing, Crankshaft
11401 11701-27013-04 Bearing, Crankshaft
11401 11701-27013-05 Bearing, Crankshaft
11401 15703-27010 Valve Sub-Assy, Oil Check
11401 11401-69686 Block Sub-Assy, Cylinder
11401 16353-64011 Flange(For Water By-Pass)
11416 90910-02061 Bolt(For Cylinder Head Set)
11431 96411-43500 Plug, Tight, No.1
11431 96411-63500 Plug, Tight
11431 96411-43000 Plug, Tight, No.1
11431 96411-63000 Plug, Tight
11431 96411-41800 Plug, Tight, No.1
11432 90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)
11432 90404-10030 Plug, W/head Straight Screw, No.5
11432 90430-10027 Gasket, W/head Straight Screw Plug
11432 90341-18006 Plug (No magnet)
11432 90341-10002 Plug, W/head Straight Screw, No.5
11432 90341-14032 Plug, W/head Taper Screw, No.1
11432 90341-22001 Plug, W/head Straight Screw, No.3(For Cylinder Block)
11432 90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)
11432 90430-22003 Gasket, Straight Screw Plug No.3(For Cylinder Block)
11434 90253-14002 Pin, Straight (For Cylinder Head Set)
11434 90253-14004 Pin, Straight (For Cylinder Head Set)
11434 90250-06068 Pin, Straight
11434 90250-10113 Pin, Straight(For Timing Gear Cover Set)
11448 11448-64020 Orifice, Cylinder Block Oil
11452 11452-64030 Guide, Oil Level Gage
11459 90929-01049 Support, Oil Level Gage Guide
12101 12101-64101 Pan Sub-Assy, Oil
12101 90341-12026 Plug, Drain
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
12112 12112-64060 Pan, Oil No.2
15301 15301-64090 Gage Sub-Assy, Oil Level
15605 15605-64020 Valve Sub-Assy, Oil Check
15708 15790-64021 Nozzle Sub-Assy, Oil, No.1
15708 15790-64030 Nozzle Sub-Assy, Oil, No.1
15708 90110-06034 New Genuine Part
9011906758 90119-06758 New Genuine Part
9017906290 90179-06290 Nut, Cap(For Cylinder Head Cover)
9017906290 90179-06299 Nut, Wire Adjusting, No.1
9020114099 90201-14099 Gasket(For Vacuum Pump Union)
9033918003 90339-18003 New Genuine Part
9161160620 91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock)
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
