Search › Model › CT215

CT215

Toyota CARINA · 1996 · 4,223 parts · 173 categories
CT215 ×

← Back to categories

4,223 items

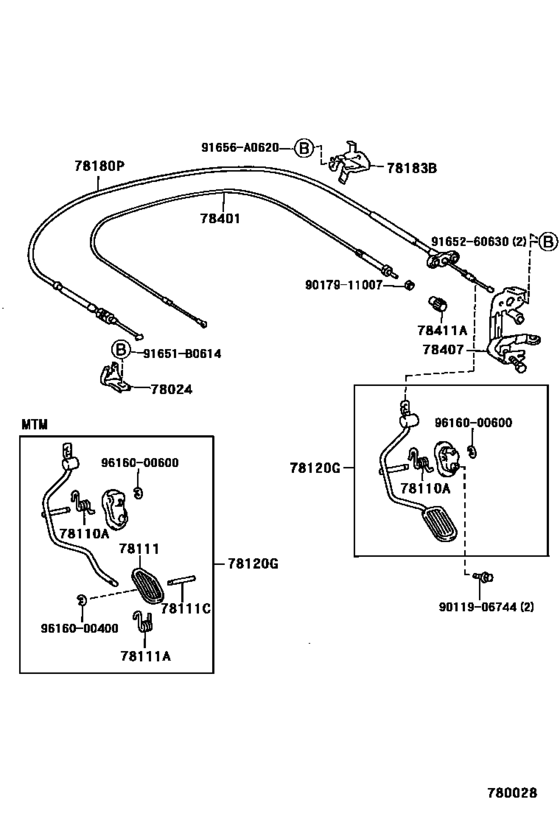

Accelerator Link ([08.1996 - 08.1998] (9608-9808)CT21#) 20
#OEMPart name
78024 78024-32140 Bracket Sub-Assy, Accelerator Control Cable
78110 90508-26054 Spring, Torsion (For Accelerator Link)
78111 78111-20050 Pedal, Accelerator
78111 90508-18050 Spring (For Accelerator Pedal Rod)
78111 90249-05001 Pin (For Accelerator Pedal)
78120 78120-20710 Rod Assy, Accelerator Pedal
78180 78180-2D550 Cable Assy, Accelerator Control
78180 78180-2D560 Cable Assy, Accelerator Control
78183 78183-20170 Clamp, Accelerator Control Cable
78401 78401-20050 Cable Sub-Assy, Throttle Control
78407 78407-20051 Arm Sub-Assy, Throttle Control
78411 78411-22010 Knob, Throttle Cable
91651 91651-B0614 BOLT WWASHER
91656 91656-A0620 New Genuine Part
91656 91653-A0620 New Genuine Part
9011906744 90119-06744 New Genuine Part
9017911007 90179-11007 Nut, Throttle
9165260630 91652-60630 New Genuine Part
9616000400 96160-00400 Ring, E(For Release Arm)
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
