CT211

Toyota CARINA · 1998 · 3,980 parts · 187 categories

3,980 items

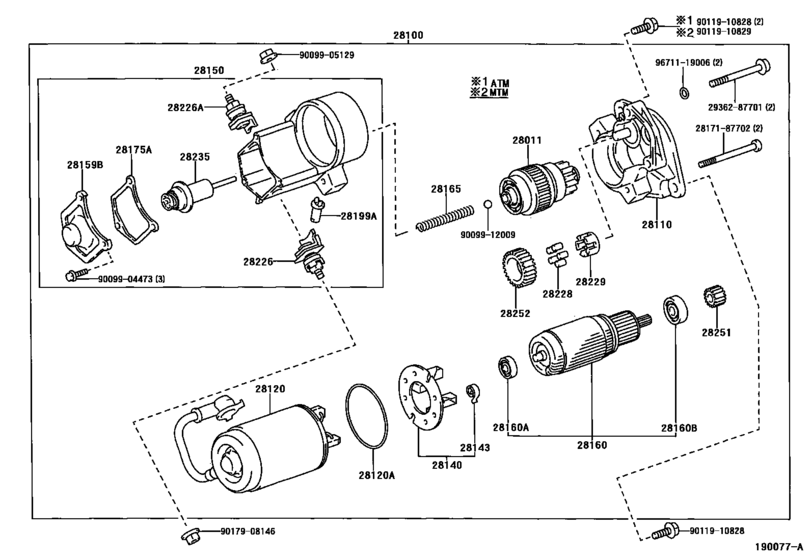

Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE) 58

#	OEM	Part name
28011	28011-64010	Clutch Sub-Assy, Starter
28011	28011-67030	Clutch Sub-Assy, Starter
28011	28011-64130	Clutch Sub-Assy, Starter
28100	28100-64300	Starter Assy
28100	28100-64310	Starter Assy
28110	28110-64170	Housing Assy, Starter Drive
28110	28115-64040	Housing Assy, Starter Drive
28120	28120-55050	Yoke Assy, Starter
28120	28120-64040	Yoke Assy, Starter
28120	90099-14064	Rubber(For Starter Yoke)
28120	90099-64040	Rubber(For Starter Yoke)
28140	28140-64040	Holder Assy, Starter Brush
28140	28140-64130	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28143	90099-17115	Spring, Starter Brush
28150	28150-64310	Switch Assy, Magnet Starter
28150	28150-64341	Switch Assy, Magnet Starter
28150	28150-64390	Switch Assy, Magnet Starter
28159	28159-10040	Cover, Magnet Switch
28159	28159-55050	Cover, Starter Protector
28160	28160-64041	Armature Assy, Starter
28160	28160-74070	Armature Assy, Starter
28160	28253-54070	Bearing, Starter Armature
28160	90099-10196	Bearing, Starter Armature
28160	90099-10143	Bearing, Starter Armature
28160	90099-10197	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28165	28165-76070	Spring, Starter Magnet Switch Return
28175	28175-10040	Gasket, Magnet Switch Cover
28175	28175-55050	Gasket, Magnet Switch Cover
28199	28199-46080	Cover, Starter End Frame
28199	28199-74110	Cover, Starter End Frame
28226	28226-54330	Starter Kit, Battery Terminal
28226	28226-55050	Starter Kit, Battery Terminal
28226	28226-64370	Starter Kit, Battery Terminal
28226	28226-76100	Starter Kit, Battery Terminal
28226	28226-72010	Starter Kit, Motor Terminal
28226	28226-74070	Starter Kit, Battery Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28229	28229-74070	Retainer, Starter Idle Gear
28235	28235-35080	Plunger, Magnet Switch
28235	28235-55050	Plunger, Magnet Switch
28251	28251-54070	Plate, Lead, Switch Connecting
28252	28254-64040	Pinion, Starter Drive
28252	28254-64130	Pinion, Starter Drive
2817187702	28171-87702	Bolt, Starter
2936287701	29362-87701	Bolt, Starter
9009904473	90099-04473	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9011910828	90119-10828	New Genuine Part
9011910828	90119-10938	New Genuine Part
9011910829	90119-10829	New Genuine Part
9011910829	90119-10937	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9671119006	96711-19006	Packing(For Radiator Drain Cock)

OEM	Part name	Category
28011-64010	Clutch Sub-Assy, Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28011-64130	Clutch Sub-Assy, Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28011-67030	Clutch Sub-Assy, Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28100-64300	Starter Assy	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28100-64310	Starter Assy	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28110-64170	Housing Assy, Starter Drive	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28115-64040	Housing Assy, Starter Drive	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28120-55050	Yoke Assy, Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28120-64040	Yoke Assy, Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28140-64040	Holder Assy, Starter Brush	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28140-64130	Holder Assy, Starter Brush	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28150-64310	Switch Assy, Magnet Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28150-64341	Switch Assy, Magnet Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28150-64390	Switch Assy, Magnet Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28159-10040	Cover, Magnet Switch	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28159-55050	Cover, Starter Protector	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28160-64041	Armature Assy, Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28160-74070	Armature Assy, Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28165-76070	Spring, Starter Magnet Switch Return	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28171-87702	Bolt, Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28175-10040	Gasket, Magnet Switch Cover	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28175-55050	Gasket, Magnet Switch Cover	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28199-46080	Cover, Starter End Frame	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28199-74110	Cover, Starter End Frame	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28226-54330	Starter Kit, Battery Terminal	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28226-55050	Starter Kit, Battery Terminal	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28226-64370	Starter Kit, Battery Terminal	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28226-72010	Starter Kit, Motor Terminal	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28226-74070	Starter Kit, Battery Terminal	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28226-76100	Starter Kit, Battery Terminal	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28229-26040	Retainer, Starter Idle Gear	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28229-74070	Retainer, Starter Idle Gear	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28235-35080	Plunger, Magnet Switch	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28235-55050	Plunger, Magnet Switch	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28251-54070	Plate, Lead, Switch Connecting	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28253-54070	Bearing, Starter Armature	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28254-64040	Pinion, Starter Drive	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
28254-64130	Pinion, Starter Drive	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
29362-87701	Bolt, Starter	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-04473	New Genuine Part	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-10143	Bearing, Starter Armature	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-10196	Bearing, Starter Armature	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-10197	Bearing, Starter Armature	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-12009	Ball, Starter Clutch	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-14064	Rubber(For Starter Yoke)	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-17112	Spring, Starter Brush	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-17115	Spring, Starter Brush	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90099-64040	Rubber(For Starter Yoke)	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90119-10828	New Genuine Part	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90119-10829	New Genuine Part	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90119-10937	New Genuine Part	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90119-10938	New Genuine Part	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90179-08146	Nut	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
90179-08204	Nut	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
96711-19006	Packing(For Radiator Drain Cock)	Starter ([08.1996 - ] 12V 2.2KW (9608- )2CT,3CTE)
