CT211

Toyota CARINA · 1998 · 3,980 parts · 187 categories

3,980 items

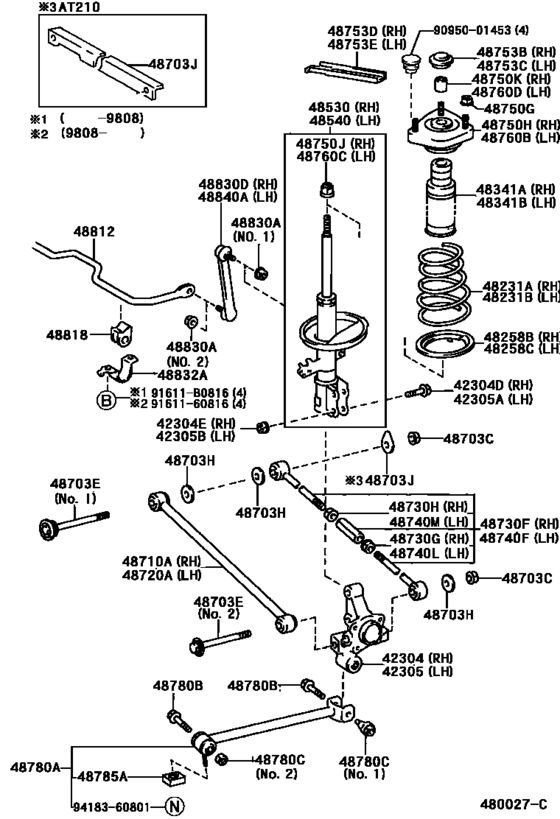

Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211) 38

#	OEM	Part name
42304	42304-20300	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42305-20300	Carrier Sub-Assy, Rear Axle, Lh
48231	48231-2D820	Spring, Coil, Rear Rh
48258	48258-32010	Insulator, Rear Coil Spring, Lower
48341	48341-20280	Bumper, Rear Spring, No.1 Rh
48530	48530-29705	Absorber Assy, Shock, Rear Rh
48540	48540-29265	Absorber Assy, Shock, Rear Lh
48703	90179-14019	Nut
48703	90901-09001	Bolt(For Rear Suspension Arm)
48703	90901-19001	Bolt(For Rear Suspension Arm)
48703	90201-14017	Washer(For Rear Suspension Arm)
48703	48715-20010	Washer, No.2(For Rear Suspension Arm)
48710	48710-20241	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-20220	Arm Assy, Rear Suspension, No.2 Rh
48730	90179-16022	Nut, No.1(For Rear Suspension Arm No.2)
48730	90179-16021	Nut, No.2(For Arm Assy, Rear Suspension, No.2)
48750	90179-08122	Nut(For Rear Suspension Support)
48750	48750-20150	Support Assy, Rear Suspension, Rh
48750	94184-61400	Nut(For Idler Arm Support)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48753	48753-20040	Cover, Rear Suspension Supoport, No.1 Rh
48753	48753-20070	Cover, Rear Suspension Supoport, No.2 Rh
48780	48780-20190	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90179-12091	Nut(For Front Suspension Lower Arm)
48812	48812-20550	Bar, Stabilizer, Rear
48818	48818-20280	Bush, Stabilizer, Rear
48830	90179-10183	Nut(For Front Stabilizer Link)
48830	90179-10222	Nut(For Rear Stabilizer Link)
48830	48830-20010	Link Assy, Rear Stabilizer
48832	48832-20080	Bracket, Rear Stabilizer Bar, No.1
91611	91611-B0816	Bolt
9095001453	90950-01453	New Genuine Part
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9418360801	94183-60801	NUT LOCK

OEM	Part name	Category
42304-20300	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
42305-20300	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48231-2D820	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48258-32010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48341-20280	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48530-29705	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48540-29265	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48710-20241	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48715-20010	Washer, No.2(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48730-20220	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48750-20150	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48753-20040	Cover, Rear Suspension Supoport, No.1 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48753-20070	Cover, Rear Suspension Supoport, No.2 Rh	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48780-20190	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48812-20550	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48818-20280	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48830-20010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
48832-20080	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90179-10222	Nut(For Rear Stabilizer Link)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90179-14019	Nut	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90179-16021	Nut, No.2(For Arm Assy, Rear Suspension, No.2)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90179-16022	Nut, No.1(For Rear Suspension Arm No.2)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90201-14017	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90901-09001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90901-19001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
90950-01453	New Genuine Part	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
94183-60801	NUT LOCK	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
94184-61400	Nut(For Idler Arm Support)	Rear Spring & Shock Absorber ([08.1996 - ] (9608- )AT21#,CT210,211)
