Search › Model › CT211
CT211

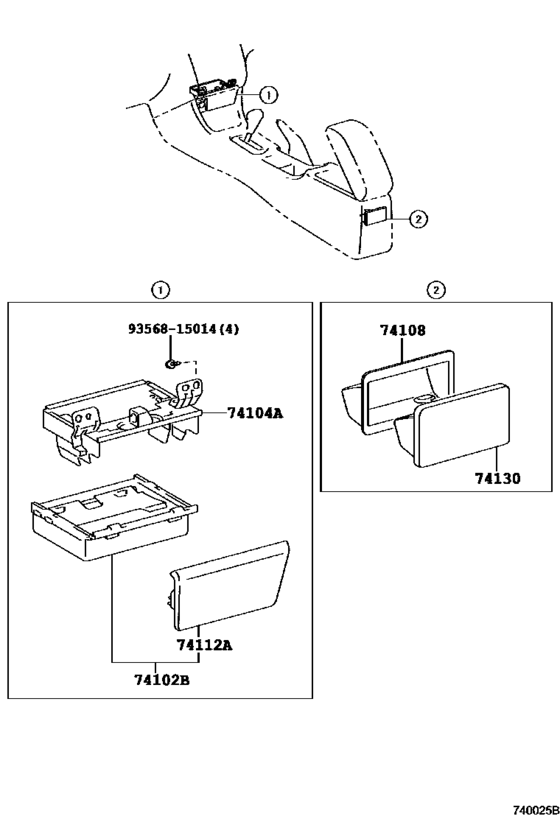

Ash Receptacle ([08.1996 - ] (9608- )) 11
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-20260-B0 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-20260-B1 | Box Sub-Assy, Front Ash Receptacle |
| 74104 | 74104-20320 | Retainer Sub-Assy, Front Ash Receptacle |
| 74108 | 74108-20090 | Retainer Sub-Assy, Rear Ash Receptacle |
| 74112 | 74112-20130-B0 | Door, Front Ash Receptacle |
| 74112 | 74112-20130-B1 | Door, Front Ash Receptacle |
| 74130 | 74109-20080-B4 | Receptacle Assy, Rear Ash |
| 74130 | 74109-20080-22 | Receptacle Assy, Rear Ash (Black) |
| 74130 | 74109-20080-P0 | Receptacle Assy, Rear Ash |
| 9356815014 | 93568-15014 | Direct |
| 9356815014 | 93568-55014 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 74102-20260-B0 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1996 - ] (9608- )) |
| 74102-20260-B1 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1996 - ] (9608- )) |
| 74104-20320 | Retainer Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1996 - ] (9608- )) |
| 74108-20090 | Retainer Sub-Assy, Rear Ash Receptacle | Ash Receptacle ([08.1996 - ] (9608- )) |
| 74109-20080-22 | Receptacle Assy, Rear Ash (Black) | Ash Receptacle ([08.1996 - ] (9608- )) |
| 74109-20080-B4 | Receptacle Assy, Rear Ash | Ash Receptacle ([08.1996 - ] (9608- )) |
| 74109-20080-P0 | Receptacle Assy, Rear Ash | Ash Receptacle ([08.1996 - ] (9608- )) |
| 74112-20130-B0 | Door, Front Ash Receptacle | Ash Receptacle ([08.1996 - ] (9608- )) |
| 74112-20130-B1 | Door, Front Ash Receptacle | Ash Receptacle ([08.1996 - ] (9608- )) |
| 93568-15014 | Direct | Ash Receptacle ([08.1996 - ] (9608- )) |
| 93568-55014 | Screw | Ash Receptacle ([08.1996 - ] (9608- )) |
