CT198

Toyota CALDINA · 1992 · 4,981 parts · 259 categories
CT198 ×

← Back to categories

4,981 items

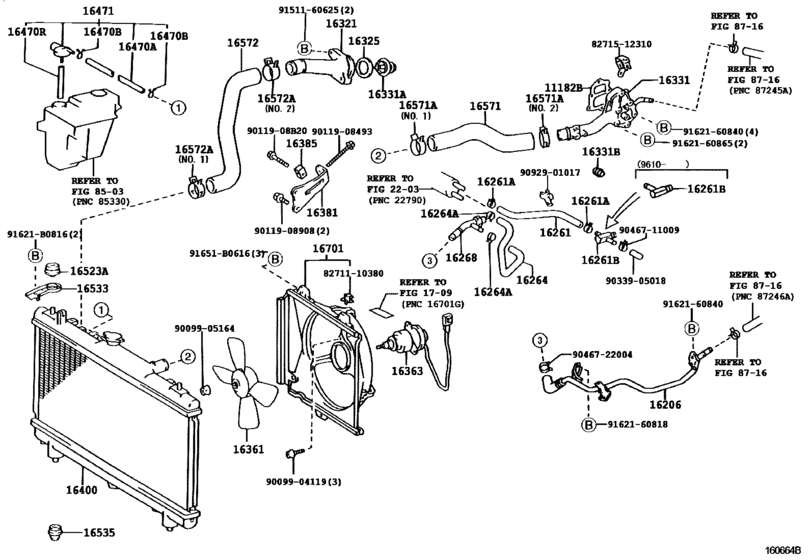

Radiator & Water Outlet ([01.1996 - 05.1998] (9601-9805)2C) 71
#OEMPart name
11182 11182-64021 Gasket, Cylinder Head Rear Plate
16206 16206-64020 Pipe Sub-Assy, Water By-Pass
16261 16261-64060 Hose, Water By-Pass
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16261 90404-53050 Union(For Water By-Pass Hose)
16261 90404-53075 Union(For Water By-Pass Hose)
16264 16264-64090 Hose, Water By-Pass, No.2
16268 16268-64061 Pipe, Water By-Pass, No.1
16321 16321-64020 Inlet, Water
16325 16325-63010 Gasket, Water Inlet Housing, No.1
16325 16325-63011 Gasket, Water Inlet Housing, No.1
16331 16331-64030 Outlet, Water
16331 16331-64070 Outlet, Water
16331 16331-64120 Outlet, Water
16331 90916-03046 Thermostat
16331 90345-53030 Cock Sub-Assy, Water Drain(For Cylinder Block)
16361 16361-64030 Fan
16363 16363-64090 Motor, Cooling Fan
16381 16381-64080 Bar, Alternator Belt Adjusting
16385 16385-64011 Slider, Fan Belt Adjusting
16400 16400-64750 Radiator Assy
16400 16400-64741 Radiator Assy
16400 16400-64751 Radiator Assy
16400 16400-64850 Radiator Assy
16400 16400-6A210 Radiator Assy
16470 16471-74200 Hose Or Pipe(For Radiator Reserve Tank)
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16471 16405-16130 Cap Sub-Assy, Reserve Tank
16471 16405-74190 Cap Sub-Assy, Reserve Tank
16523 16523-74010 Cushion, Sub-Radiator Support
16533 16533-16060 Support, Radiator, Upper
16533 16533-64130 Support, Radiator, Upper
16535 16535-64050 Support, Radiator, Lower
16535 90916-04008 Support, Radiator, Lower
16571 16571-64210 Hose, Radiator, Inlet
16571 16571-64260 Hose, Radiator, Inlet
16571 90467-33002 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16571 90467-34003 Clip(For Oil Return Hose)
16571 90467-37006 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-37005 Clip(For Water Inlet Hose)
16572 16572-64240 Hose, Radiator, Outlet
16572 16572-64241 Hose, Radiator, Outlet
16572 16572-64270 Hose, Radiator, Outlet
16572 90467-37001 Clip(For Water Inlet Hose)
16572 90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)
16701 16711-64360 Shroud Sub-Assy, Fan
16701 16711-64362 Shroud Sub-Assy, Fan
16701 16711-64361 Shroud Sub-Assy, Fan
91621 91621-B0816 BOLT WWASHER
91651 91651-B0616 BOLT WWASHER
9011908 90119-08B20 New Genuine Part
8271110380 82711-10380 Wire, Fuse To Fuse(for Combustion Heater)
8271512310 82715-12310 Bracket,wiring Harness Clamp
9009904119 90099-04119 BOLT WASHER HEAD
9009905164 90099-05164 Nut
9011908493 90119-08493 BOLT
9011908908 90119-08908 BOLT WWASHER
9033905018 90339-05018 CAP
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046722004 90467-22004 Clip(For Ventilation Hose No.2)
9046722004 90467-21010 Clip(For Ventilation Hose No.2)
9092901017 90929-01017 New Genuine Part
9151160625 91511-60625 Bolt(For Cylinder Head Cover)
9151160625 91511-J0625 Bolt(For Cylinder Head Cover)
9162160818 91621-60818 Bolt(For Automatic Transmission Case Protector)
9162160818 91651-B0820 Bolt, Radiator Side Support Plate
9162160840 91621-60840 Bolt(For Rocker Support Set)
9162160865 91621-60865 New Genuine Part
