Search › Model › CT198

CT198

Toyota CALDINA · 1992 · 4,981 parts · 259 categories
CT198 ×

← Back to categories

4,981 items

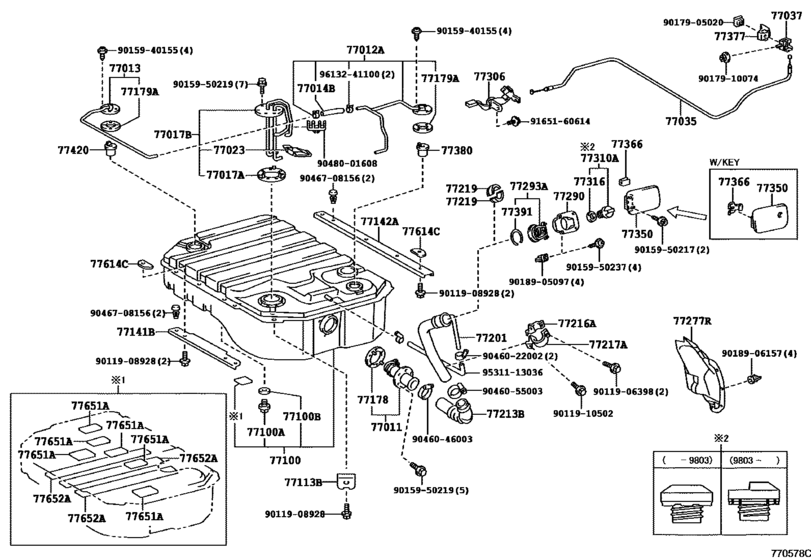

Fuel Tank & Tube ([11.1992 - ] (9211- )CT198,199) 100
#OEMPart name
77011 77011-12130 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-13030 Tube Sub-Assy, Fuel Tank Breather, No.1
77013 77013-13030 Tube Sub-Assy, Fuel Tank Breather, No.2
77014 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77014 95337-06020 Hose, Differential Pressure Control
77017 77169-12020 Gasket, Fuel Pump Bracket
77017 77017-13020 Tube Sub-Assy, Fuel Tank Vent
77023 77023-32040 Filter Sub-Assy, Fuel Suction Tube
77035 77035-21020 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-21030 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-20070 Lock Sub-Assy, Fuel Filler Opening Lid
77100 77001-19615 Tank Assy, Fuel
77100 77001-19625 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77113 77113-13010 Plate, Fuel Tank Side
77141 77141-13010 Reinforcement, Fuel Tank Flange, No.1
77142 77142-13010 Reinforcement, Fuel Tank Flange, No.2
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-21070 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-13080 Hose, Fuel Tank To Filler Pipe
77216 77216-13050 Support, Fuel Tank Filler Pipe, No.1
77217 77217-13030 Support, Fuel Tank Filler Pipe, No.2
77219 77219-32030 Cover, Fuel Tank Filler Pipe
77251 77251-21100 Tube, Fuel Main
77251 77251-21130 Tube, Fuel Main
77251 95333-08020 Hose, Lpg Injector
77251 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77251 77259-13040 Hose, Fuel, No.2(For Fuel Main Tube)
77255 77255-21040 Tube, Fuel Return
77255 77255-21070 Tube, Fuel Return
77266 77266-20120 Protector, Fuel Tube, No.1
77267 77267-21010 Protector, Fuel Tube, No.2
77277 77277-21010 Protector, Fuel Tank Filler Pipe
77285 77285-20090 Clamp, Fuel Tube W/grommet, No.1
77285 77285-20120 Clamp, Fuel Tube W/grommet, No.1
77285 77285-12020 Clamp, Fuel Tube W/grommet, No.1
77285 77298-12030 Clamp, Fuel Tube, No.1
77286 77286-20070 Clamp, Fuel Tube W/grommet, No.2
77286 77286-20090 Clamp, Fuel Tube, No.1
77290 77290-20140 Shield Assy, Fuel Tank Filler Pipe
77293 77293-20090 Shield, Fuel Tank Filler Pipe, No.3
77306 77306-14010 Lever Sub-Assy, Fuel Lid Open
77306 77306-21010 Lever Sub-Assy, Fuel Lid Lock Open
77310 77310-12150 Cap Assy, Fuel Tank
77310 77310-32011 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-20210 Lid Assy, Fuel Filler Opening
77350 90179-05011 NUT
77350 77350-21020 Lid Assy, Fuel Filler Opening
77350 77360-20030 Spring, Fuel Filler Opening Lid Hinge
77350 77377-20060 Retainer, Fuel Filler Opening Lid Lock
77366 77366-12030 Spring, Fuel Filler Opening Lid Hinge
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-20020 Ring, Fuel Inlet Box
77393 77393-22010 Protector, Check Valve
77412 77412-20040 Support, Fuel Tube Grommet, No.2
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77614 77614-13020 Seal, Fuel Tank Cover
77651 77651-13040 Cushion, Fuel Tank, No.1
77652 77652-13010 Cushion, Fuel Tank, No.2
77701 90917-10069 Valve, Check (For Main Fuel Tank)
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
77701 90447-12136 Hose, Fuel (For Check Valve)
91651 91651-B0614 BOLT WWASHER
9011906398 90119-06398 BOLT WWASHER
9011906720 90119-06720 New Genuine Part
9011906746 90119-06746 New Genuine Part
9011906746 91631-J0612 BRACKET
9011908928 90119-08928 New Genuine Part
9011910502 90119-10502 BOLT WWASHER
9015940155 90159-40155 SCREW WWASHER
9015950217 90159-50217 SCREW WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950237 90159-50237 New Genuine Part
9017905020 90179-05020 NUT
9017910074 90179-10074 New Genuine Part
9018905097 90189-05097 GROMMET SCREW
9018906157 90189-06157 GROMMET SCREW
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046055003 90460-55003 Clamp Or Clip(For Air Hose, No.1)
9046708156 90467-08156 Clip(For Hood To Radiator Support Seal)
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046713063 90467-13063 New Genuine Part
9048001606 90480-01606 GROMMET
9048001608 90480-01608 New Genuine Part
9095901442 90959-01442 CLAMP
9095901448 90959-01448 CLAMP
9165160614 91651-60614 Bolt
9531113036 95311-13036 New Genuine Part
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
9613241300 96132-41300 Clip, No.4(For Idle-Up Hose)
9613241300 96132-51300 Clip(For Ventilation Hose No.2)
Source
Public OEM parts-catalog data
Variants
1 / 2
Category
259
Collected
2026-08-02
