Search › Model › CT198

CT198

Toyota CALDINA · 1992 · 4,981 parts · 259 categories

4,981 items

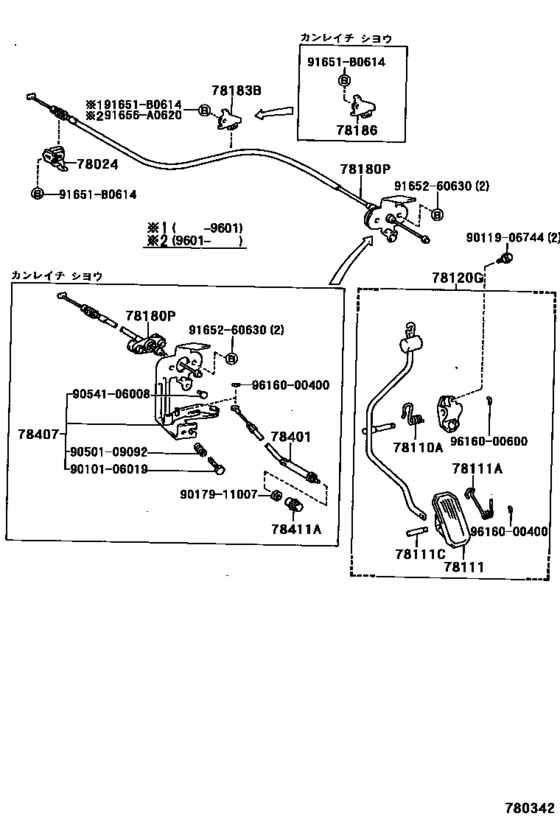

Accelerator Link ([11.1992 - ] (9211- )CT190,196,198) 27

#	OEM	Part name
78024	78024-32140	Bracket Sub-Assy, Accelerator Control Cable
78110	90508-26054	Spring, Torsion (For Accelerator Link)
78111	78111-20050	Pedal, Accelerator
78111	90508-18050	Spring (For Accelerator Pedal Rod)
78111	90249-05001	Pin (For Accelerator Pedal)
78120	78120-20580	Rod Assy, Accelerator Pedal
78120	78120-20710	Rod Assy, Accelerator Pedal
78180	78180-21040	Cable Assy, Accelerator Control
78180	78180-2D200	Cable Assy, Accelerator Control
78180	78180-2D550	Cable Assy, Accelerator Control
78180	78180-2D560	Cable Assy, Accelerator Control
78183	78183-20170	Clamp, Accelerator Control Cable
78401	78401-20050	Cable Sub-Assy, Throttle Control
78407	78407-20050	Arm Sub-Assy, Throttle Control
78407	78407-20051	Arm Sub-Assy, Throttle Control
78411	78411-22010	Knob, Throttle Cable
91651	91651-B0614	BOLT WWASHER
91656	91656-A0620	New Genuine Part
91656	91653-A0620	New Genuine Part
9010106019	90101-06019	New Genuine Part
9011906744	90119-06744	New Genuine Part
9017911007	90179-11007	Nut, Throttle
9050109092	90501-09092	New Genuine Part
9054106008	90541-06008	Cushion, No.1(For Clutch Pedal)
9165260630	91652-60630	New Genuine Part
9616000400	96160-00400	Ring, E(For Release Arm)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
78024-32140	Bracket Sub-Assy, Accelerator Control Cable	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78111-20050	Pedal, Accelerator	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78120-20580	Rod Assy, Accelerator Pedal	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78120-20710	Rod Assy, Accelerator Pedal	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78180-21040	Cable Assy, Accelerator Control	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78180-2D200	Cable Assy, Accelerator Control	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78180-2D550	Cable Assy, Accelerator Control	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78180-2D560	Cable Assy, Accelerator Control	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78183-20170	Clamp, Accelerator Control Cable	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78401-20050	Cable Sub-Assy, Throttle Control	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78407-20050	Arm Sub-Assy, Throttle Control	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78407-20051	Arm Sub-Assy, Throttle Control	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
78411-22010	Knob, Throttle Cable	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
90101-06019	New Genuine Part	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
90119-06744	New Genuine Part	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
90179-11007	Nut, Throttle	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
90249-05001	Pin (For Accelerator Pedal)	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
90501-09092	New Genuine Part	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
90508-18050	Spring (For Accelerator Pedal Rod)	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
90508-26054	Spring, Torsion (For Accelerator Link)	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
90541-06008	Cushion, No.1(For Clutch Pedal)	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
91651-B0614	BOLT WWASHER	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
91652-60630	New Genuine Part	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
91653-A0620	New Genuine Part	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
91656-A0620	New Genuine Part	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
96160-00400	Ring, E(For Release Arm)	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Accelerator Link ([11.1992 - ] (9211- )CT190,196,198)

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 259
Collected: 2026-08-02
