CT197

Toyota CALDINA · 1998 · 3,642 parts · 197 categories

3,642 items

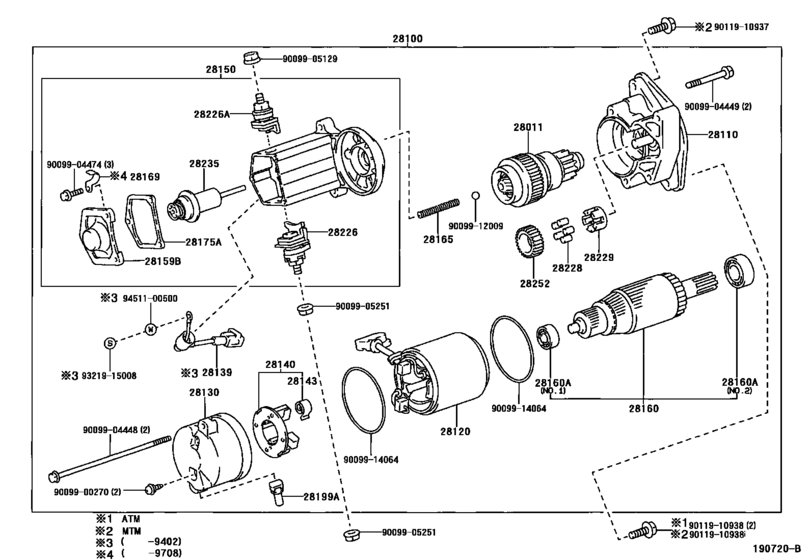

Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE) 55

#	OEM	Part name
28011	28011-64010	Clutch Sub-Assy, Starter
28011	28011-67030	Clutch Sub-Assy, Starter
28011	28011-64130	Clutch Sub-Assy, Starter
28100	28100-64300	Starter Assy
28100	28100-64310	Starter Assy
28110	28110-64170	Housing Assy, Starter Drive
28110	28115-64040	Housing Assy, Starter Drive
28120	28120-55050	Yoke Assy, Starter
28120	28120-64040	Yoke Assy, Starter
28130	28130-64130	Frame Assy, Starter Commutator End
28140	28140-64040	Holder Assy, Starter Brush
28140	28140-64130	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28143	90099-17115	Spring, Starter Brush
28150	28150-64310	Switch Assy, Magnet Starter
28150	28150-64341	Switch Assy, Magnet Starter
28159	28159-10040	Cover, Magnet Switch
28159	28159-55050	Cover, Starter Protector
28160	28160-64041	Armature Assy, Starter
28160	28160-74070	Armature Assy, Starter
28160	28253-54070	Bearing, Starter Armature
28160	90099-10143	Bearing, Starter Armature
28160	90099-10196	Bearing, Starter Armature
28160	90099-10197	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28165	28165-76070	Spring, Starter Magnet Switch Return
28175	28175-10040	Gasket, Magnet Switch Cover
28175	28175-55050	Gasket, Magnet Switch Cover
28199	28199-46080	Cover, Starter End Frame
28199	28199-74110	Cover, Starter End Frame
28226	28226-54330	Starter Kit, Battery Terminal
28226	28226-55050	Starter Kit, Battery Terminal
28226	28226-64370	Starter Kit, Battery Terminal
28226	28226-76100	Starter Kit, Battery Terminal
28226	28226-72010	Starter Kit, Motor Terminal
28226	28226-74070	Starter Kit, Battery Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28229	28229-74070	Retainer, Starter Idle Gear
28235	28235-35080	Plunger, Magnet Switch
28235	28235-55050	Plunger, Magnet Switch
28252	28254-64040	Pinion, Starter Drive
28252	28254-64130	Pinion, Starter Drive
9009900270	90099-00270	Screw, Starter
9009904448	90099-04448	Bolt, Starter
9009904449	90099-04449	New Genuine Part
9009904474	90099-04474	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009905251	90099-05251	New Genuine Part
9009912009	90099-12009	Ball, Starter Clutch
9009914064	90099-14064	Rubber(For Starter Yoke)
9011910937	90119-10937	New Genuine Part
9011910938	90119-10938	New Genuine Part
9321915008	93219-15008	New Genuine Part
9451100500	94511-00500	Washer, Cover Set, No.2

OEM	Part name	Category
28011-64010	Clutch Sub-Assy, Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28011-64130	Clutch Sub-Assy, Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28011-67030	Clutch Sub-Assy, Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28100-64300	Starter Assy	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28100-64310	Starter Assy	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28110-64170	Housing Assy, Starter Drive	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28115-64040	Housing Assy, Starter Drive	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28120-55050	Yoke Assy, Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28120-64040	Yoke Assy, Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28130-64130	Frame Assy, Starter Commutator End	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28140-64040	Holder Assy, Starter Brush	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28140-64130	Holder Assy, Starter Brush	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28150-64310	Switch Assy, Magnet Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28150-64341	Switch Assy, Magnet Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28159-10040	Cover, Magnet Switch	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28159-55050	Cover, Starter Protector	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28160-64041	Armature Assy, Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28160-74070	Armature Assy, Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28165-76070	Spring, Starter Magnet Switch Return	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28175-10040	Gasket, Magnet Switch Cover	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28175-55050	Gasket, Magnet Switch Cover	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28199-46080	Cover, Starter End Frame	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28199-74110	Cover, Starter End Frame	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28226-54330	Starter Kit, Battery Terminal	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28226-55050	Starter Kit, Battery Terminal	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28226-64370	Starter Kit, Battery Terminal	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28226-72010	Starter Kit, Motor Terminal	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28226-74070	Starter Kit, Battery Terminal	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28226-76100	Starter Kit, Battery Terminal	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28229-26040	Retainer, Starter Idle Gear	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28229-74070	Retainer, Starter Idle Gear	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28235-35080	Plunger, Magnet Switch	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28235-55050	Plunger, Magnet Switch	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28253-54070	Bearing, Starter Armature	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28254-64040	Pinion, Starter Drive	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
28254-64130	Pinion, Starter Drive	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-00270	Screw, Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-04448	Bolt, Starter	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-04449	New Genuine Part	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-04474	New Genuine Part	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-05251	New Genuine Part	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-10143	Bearing, Starter Armature	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-10196	Bearing, Starter Armature	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-10197	Bearing, Starter Armature	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-12009	Ball, Starter Clutch	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-14064	Rubber(For Starter Yoke)	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-17112	Spring, Starter Brush	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90099-17115	Spring, Starter Brush	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90119-10937	New Genuine Part	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
90119-10938	New Genuine Part	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
93219-15008	New Genuine Part	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
94511-00500	Washer, Cover Set, No.2	Starter ([11.1992 - ] 12V 1.4KW (9211- )2C#,3CE)
