Search › Model › CT197

CT197

Toyota CALDINA · 1998 · 3,642 parts · 197 categories

3,642 items

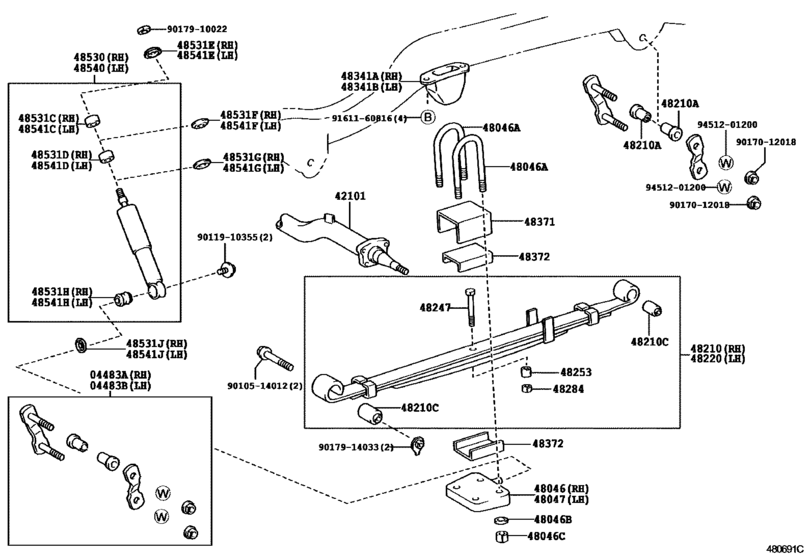

Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196) 36

#	OEM	Part name
4483	04483-13021	Shackle Kit, Rear Spring
42101	42101-21100	Tube Sub-Assy, Rear Axle
42101	42101-21110	Tube Sub-Assy, Rear Axle
42101	42101-21111	Tube Sub-Assy, Rear Axle
42101	42101-21130	Tube Sub-Assy, Rear Axle
48046	48046-21030	Seat Sub-Assy, Spring U Bolt, Rh
48046	90117-10010	Bolt, U(For Rear Spring)
48046	94621-11000	Washer, Spring(For Steering Center Arm)
48046	90170-10022	Nut(For Rear Spring U Bolt)
48047	48047-21030	Seat Sub-Assy, Spring U Bolt, Lh
48210	48210-21270	Spring Assy, Rear Rh
48210	90385-15005	Bush(For Rear Spring Shackle Upper)
48210	90389-12010	Bush(For Rear Spring Leaf)
48210	90389-14035	Bush(For Rear Spring Leaf)
48247	48247-21250	Bolt, Rear Spring, Center
48253	48254-21100	Spacer, Rear Spring, No.1
48284	94110-41000	Nut(For Steering Damper)
48341	48341-21010	Bumper, Rear Spring
48371	48371-21080	Retainer, Rear Spring Pad
48372	48372-28010	Pad, Rear Spring
48530	48531-80227	Absorber Assy, Shock, Rear Rh
48531	90540-10005	Bush(For Rear Shock Absorber)
48531	90948-01003	Rubber Cushion
48531	90948-02045	Washer, Rear Shock Absorber Cushion, No.1
48531	90948-02007	Retainer, Steering Damper Cushion
48531	90948-02002	Retainer, Steering Damper Cushion
48531	90385-16009	Cushion, Shock Absorber
48531	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
9010514012	90105-14012	Bolt(For Front Suspension Lower Arm)
9011910355	90119-10355	Washer, Rear Shock Absorber Cushion, No.2
9017012018	90170-12018	Nut (For Propeller Shaft)
9017910022	90179-10022	Nut(For Rear Support To Rear Shock Absorber)
9017914033	90179-14033	NUT
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9451201200	94512-01200	Washer

OEM	Part name	Category
04483-13021	Shackle Kit, Rear Spring	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
42101-21100	Tube Sub-Assy, Rear Axle	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
42101-21110	Tube Sub-Assy, Rear Axle	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
42101-21111	Tube Sub-Assy, Rear Axle	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
42101-21130	Tube Sub-Assy, Rear Axle	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
48046-21030	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
48047-21030	Seat Sub-Assy, Spring U Bolt, Lh	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
48210-21270	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
48247-21250	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
48254-21100	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
48341-21010	Bumper, Rear Spring	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
48371-21080	Retainer, Rear Spring Pad	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
48372-28010	Pad, Rear Spring	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
48531-80227	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90105-14012	Bolt(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90117-10010	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90119-10355	Washer, Rear Shock Absorber Cushion, No.2	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90170-10022	Nut(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90170-12018	Nut (For Propeller Shaft)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90179-10022	Nut(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90179-14033	NUT	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90385-15005	Bush(For Rear Spring Shackle Upper)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90385-16009	Cushion, Shock Absorber	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90389-12010	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90389-14035	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90540-10005	Bush(For Rear Shock Absorber)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90948-01003	Rubber Cushion	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90948-02002	Retainer, Steering Damper Cushion	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90948-02007	Retainer, Steering Damper Cushion	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90948-02045	Washer, Rear Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
94110-41000	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
94512-01200	Washer	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)
94621-11000	Washer, Spring(For Steering Center Arm)	Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 197
Collected: 2026-08-02
