CT197

Toyota CALDINA · 1998 · 3,642 parts · 197 categories

← Back to categories

3,642 items

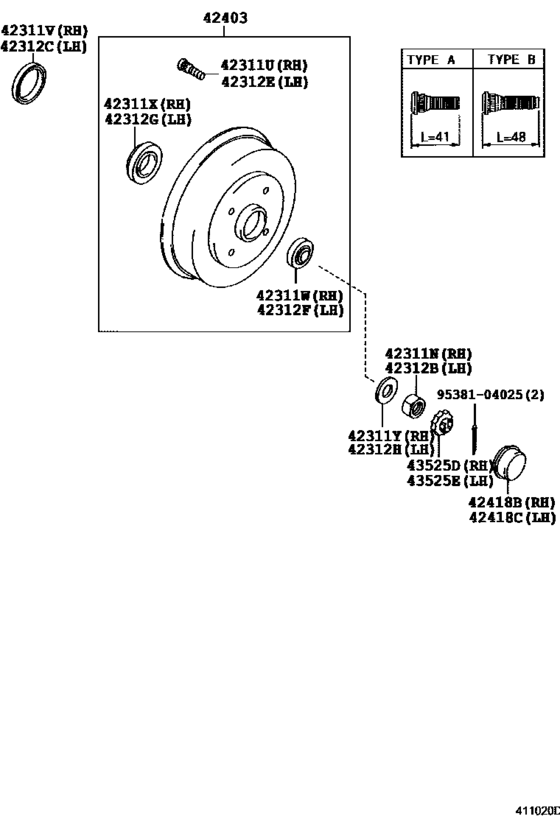

Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196) 11

#	OEM	Part name
42311	90170-19185	Nut (For Axle Shaft)
42311	90942-02047	Bolt, Hub
42311	90311-48001	Seal, Oil (For Axle Shaft)
42311	90368-22001	Bearing (For Rear Axle Shaft Outer)
42311	90368-35004	Bearing (For Rear Axle Shaft Inner)
42311	90214-20005	Washer, Claw (For Axle Shaft)
42403	42043-19075	Drum Sub-Assy, Rear Brake
42403	42403-29025	Drum Sub-Assy, Rear Brake
42418	42418-13011	Cap, Rear Hub Grease
43525	43525-22010	Cap, Front Wheel Adjusting Lock
9538104025	95381-04025	PIN

OEM	Part name	Category
42043-19075	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
42403-29025	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
42418-13011	Cap, Rear Hub Grease	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
43525-22010	Cap, Front Wheel Adjusting Lock	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
90170-19185	Nut (For Axle Shaft)	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
90214-20005	Washer, Claw (For Axle Shaft)	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
90311-48001	Seal, Oil (For Axle Shaft)	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
90368-22001	Bearing (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
90368-35004	Bearing (For Rear Axle Shaft Inner)	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)
95381-04025	PIN	Rear Axle Shaft & Hub ([11.1992 - ] (9211- )CT196,197,ET196)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 197
Collected: 2026-08-02
