CT197

Toyota CALDINA · 1998 · 3,642 parts · 197 categories

← Back to categories

3,642 items

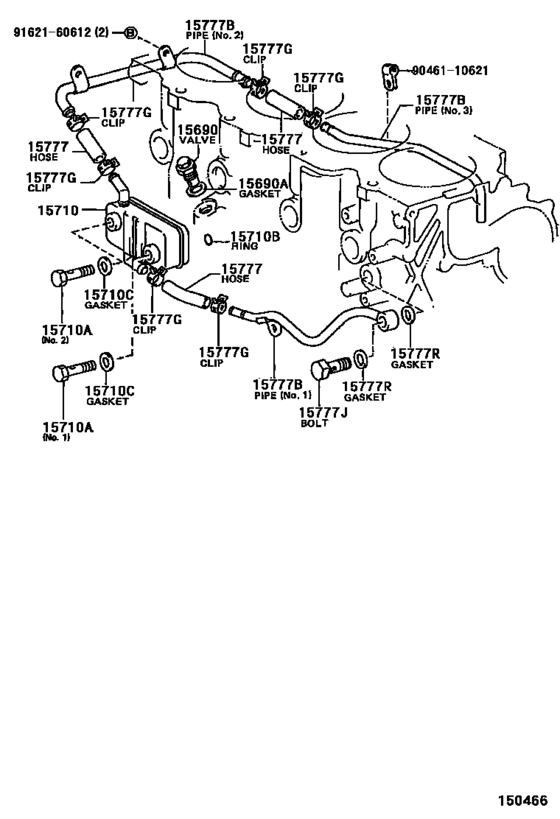

Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197) 19

#	OEM	Part name
15690	15690-64010	Valve Assy, Oil Cooler Relief
15690	15690-64011	Valve Assy, Oil Cooler Relief
15690	90430-22003	Gasket, Straight Screw Plug No.3(For Cylinder Block)
15710	15710-64010	Cooler Assy, Oil
15710	90401-18009	Bolt, Union(For Oil Cooler)
15710	90401-18011	Bolt, Union(For Oil Cooler)
15710	90301-22004	Ring, O(For Oil Filter Bracket)
15710	90430-18021	Washer(For Oil Filter)
15777	90445-21006	Hose, Oil Cooler
15777	15767-64011	Pipe, Oil Cooler
15777	15768-64071	Pipe, Oil Cooler
15777	15769-64011	Pipe, Oil Cooler
15777	90467-20005	Clip(For Ventilation Hose No.2)
15777	96134-41900	Clip Or Clamp(For Ventilation Hose)
15777	90401-20004	Bolt, Union(For Oil Cooler Pipe)
15777	90430-20014	Gasket(For Oil Filter Bracket Union)
9046110621	90461-10621	New Genuine Part
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER

OEM	Part name	Category
15690-64010	Valve Assy, Oil Cooler Relief	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
15690-64011	Valve Assy, Oil Cooler Relief	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
15710-64010	Cooler Assy, Oil	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
15767-64011	Pipe, Oil Cooler	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
15768-64071	Pipe, Oil Cooler	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
15769-64011	Pipe, Oil Cooler	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90301-22004	Ring, O(For Oil Filter Bracket)	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90401-18009	Bolt, Union(For Oil Cooler)	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90401-18011	Bolt, Union(For Oil Cooler)	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90401-20004	Bolt, Union(For Oil Cooler Pipe)	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90430-18021	Washer(For Oil Filter)	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90430-20014	Gasket(For Oil Filter Bracket Union)	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90430-22003	Gasket, Straight Screw Plug No.3(For Cylinder Block)	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90445-21006	Hose, Oil Cooler	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90461-10621	New Genuine Part	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
90467-20005	Clip(For Ventilation Hose No.2)	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
91621-60612	BOLTWWASHER	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
91621-J0612	BOLT W-WASHER	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Engine Oil Cooler ([11.1992 - ] (9211- )2C,3CE..CT190,196,197)
