CT197

Toyota CALDINA · 1998 · 3,642 parts · 197 categories

3,642 items

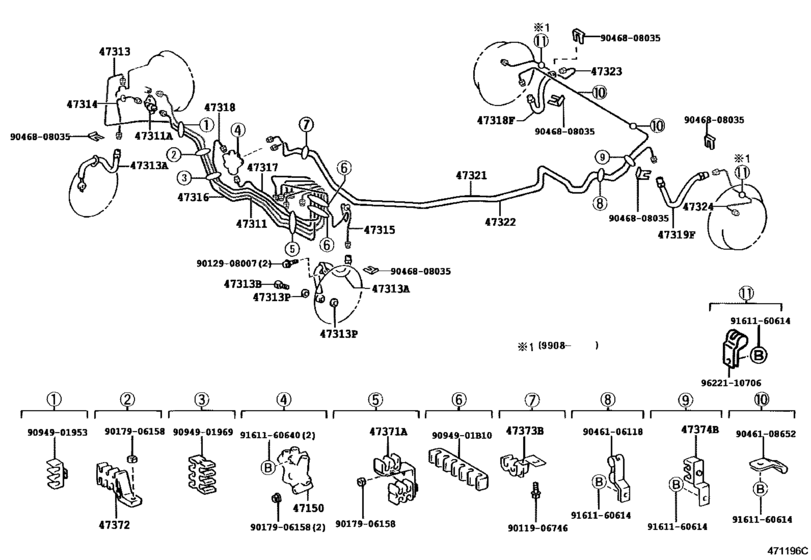

Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196) 49

#	OEM	Part name
47150	47150-16050	Valve Assy, Proportioning
47150	47150-33020	Valve Assy, Proportioning
47311	47311-21010	Tube, Front Brake, No.1
47311	47311-21050	Tube, Front Brake, No.1
47311	90904-12019	Way(For Front Brake Tube)
47311	90904-13013	Way(For Front Brake Tube)
47313	47313-21020	Tube, Front Brake, No.3
47313	47313-21070	Tube, Front Brake, No.3
47313	90947-02820	Hose, Flexible, No.1(For Front)
47313	90947-02821	Hose, Flexible, No.1(For Front)
47313	90401-10045	Bolt, Union(For Front Flexible Hose)
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-20640	Tube, Front Brake, No.4
47314	47314-21020	Tube, Front Brake, No.4
47315	47315-21010	Tube, Front Brake, No.5
47315	47315-21050	Tube, Front Brake, No.5
47316	47316-21320	Tube, Front Brake, No.6
47317	47317-21030	Tube, Front Brake, No.7
47318	47318-21080	Tube, Front Brake, No.8
47318	90947-02818	Hose, Flexible(For Rear Rh)
47321	47321-21030	Tube, Rear Brake, No.1
47322	47322-21100	Tube, Rear Brake, No.2
47323	47323-21030	Tube, Rear Brake, No.3
47323	47323-21032	Tube, Rear Brake, No.3
47324	47324-21030	Tube, Rear Brake, No.4
47324	47324-21032	Tube, Rear Brake, No.4
47371	47371-20660	Clamp, Brake Tube, No.1
47371	47371-21010	Clamp, Brake Tube, No.1
47372	47371-20670	Clamp, Brake Tube, No.2
47372	47371-21020	Clamp, Brake Tube, No.2
47373	47371-20680	Clamp, Brake Tube, No.6
47374	47375-12030	Clamp, Brake Tube, No.4
9094901	90949-01B10	Clamp, Brake Tube, No.3
9011906746	90119-06746	New Genuine Part
9011906746	91631-J0612	BRACKET
9012908007	90129-08007	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9046106118	90461-06118	New Genuine Part
9046108652	90461-08652	Clamp, Brake Tube, No.8
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9094901953	90949-01953	New Genuine Part
9094901969	90949-01969	Clamp, Brake Tube, No.6
9094901969	90080-46365	Clamp, Brake Tube, No.5
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160640	91611-60640	New Genuine Part
9622110706	96221-10706	Clamp, Brake Tube, No.8

OEM	Part name	Category
47150-16050	Valve Assy, Proportioning	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47150-33020	Valve Assy, Proportioning	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47311-21010	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47311-21050	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47313-21020	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47313-21070	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47314-20640	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47314-21020	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47315-21010	Tube, Front Brake, No.5	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47315-21050	Tube, Front Brake, No.5	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47316-21320	Tube, Front Brake, No.6	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47317-21030	Tube, Front Brake, No.7	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47318-21080	Tube, Front Brake, No.8	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47321-21030	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47322-21100	Tube, Rear Brake, No.2	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47323-21030	Tube, Rear Brake, No.3	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47323-21032	Tube, Rear Brake, No.3	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47324-21030	Tube, Rear Brake, No.4	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47324-21032	Tube, Rear Brake, No.4	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47371-20660	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47371-20670	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47371-20680	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47371-21010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47371-21020	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47375-12030	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90119-06746	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90129-08007	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90401-10045	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90461-06118	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90461-08652	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90468-08035	CLIP	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90904-12019	Way(For Front Brake Tube)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90904-13013	Way(For Front Brake Tube)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90947-02818	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90947-02820	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90947-02821	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90949-01953	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
90949-01B10	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
91611-60640	New Genuine Part	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
91631-J0612	BRACKET	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)
96221-10706	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([05.1998 - ] ｱﾘ(ABS) (9805- )CT197,ET196)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 197
Collected: 2026-08-02
