Search › Model › CT196

CT196

Toyota CALDINA · 1992 · 4,992 parts · 278 categories

4,992 items

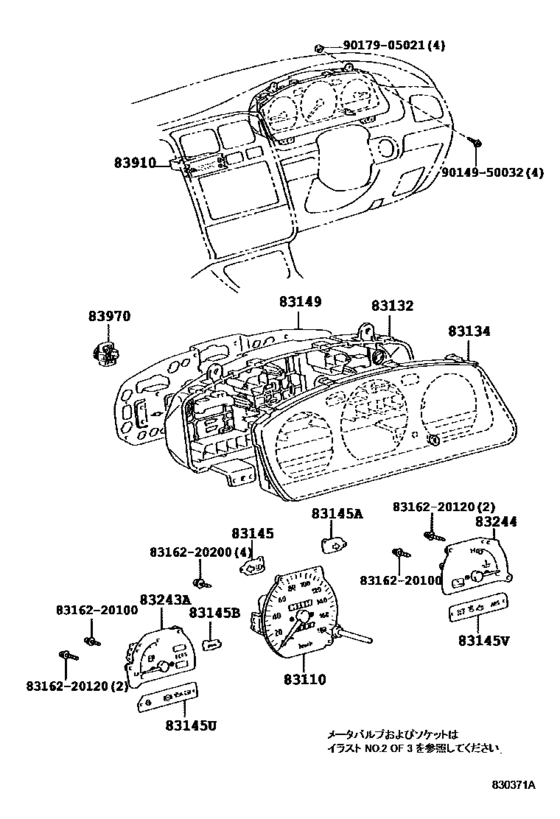

Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601)) 32

#	OEM	Part name
83110	83110-2D390	Speedometer Assy
83110	83220-20030	Speedometer Assy
83132	83132-20620	Case, Combination Meter
83132	83841-20130	Case, Combination Meter
83134	83134-20180	Cover, Combination Meter, No.1
83134	83821-21030	Cover, Combination Meter, No.1
83145	83145-2D640	Lens, Meter, No.1
83145	83146-20520	Lens, Meter, No.1
83145	83831-20130	Lens, Meter, No.1
83145	83145-2D620	Lens, Meter, No.2
83145	83145-2D720	Lens, Meter, No.1
83145	83146-20500	Lens, Meter, No.2
83145	83831-21050	Lens, Meter, No.2
83145	83832-21030	Lens, Meter, No.3
83145	83146-20060	Lens, Meter, No.9
83145	83145-21080	Lens, Meter, No.10
83149	83247-21040	Plate, Meter Circuit
83149	83861-20170	Plate, Meter Circuit
83149	83861-21030	Plate, Meter Circuit
83149	83861-21051	Plate, Meter Circuit
83243	83243-21020	Gauge Sub-Assy, Fuel Receiver
83243	83882-20130	Gauge Sub-Assy, Fuel Receiver
83244	83244-20460	Gauge Sub-Assy, Water Temperature Receiver
83244	83883-20130	Gauge Sub-Assy, Water Temperature Receiver
83910	83910-20640	Clock Assy
83910	83910-20720	Clock Assy
83970	83970-12020	Buzzer Assy, Reverse Warning
8316220100	83162-20100	Case, Combination Meter Mirror, No.2
8316220120	83162-20120	Case, Combination Meter Mirror, No.2
8316220200	83162-20200	Case, Combination Meter Mirror, No.2
9014950032	90149-50032	Screw
9017905021	90179-05021	NUT

OEM	Part name	Category
83110-2D390	Speedometer Assy	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83132-20620	Case, Combination Meter	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83134-20180	Cover, Combination Meter, No.1	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83145-21080	Lens, Meter, No.10	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83145-2D620	Lens, Meter, No.2	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83145-2D640	Lens, Meter, No.1	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83145-2D720	Lens, Meter, No.1	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83146-20060	Lens, Meter, No.9	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83146-20500	Lens, Meter, No.2	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83146-20520	Lens, Meter, No.1	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83162-20100	Case, Combination Meter Mirror, No.2	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83162-20120	Case, Combination Meter Mirror, No.2	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83162-20200	Case, Combination Meter Mirror, No.2	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83220-20030	Speedometer Assy	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83243-21020	Gauge Sub-Assy, Fuel Receiver	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83244-20460	Gauge Sub-Assy, Water Temperature Receiver	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83247-21040	Plate, Meter Circuit	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83821-21030	Cover, Combination Meter, No.1	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83831-20130	Lens, Meter, No.1	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83831-21050	Lens, Meter, No.2	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83832-21030	Lens, Meter, No.3	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83841-20130	Case, Combination Meter	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83861-20170	Plate, Meter Circuit	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83861-21030	Plate, Meter Circuit	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83861-21051	Plate, Meter Circuit	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83882-20130	Gauge Sub-Assy, Fuel Receiver	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83883-20130	Gauge Sub-Assy, Water Temperature Receiver	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83910-20640	Clock Assy	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83910-20720	Clock Assy	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
83970-12020	Buzzer Assy, Reverse Warning	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
90149-50032	Screw	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
90179-05021	NUT	Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601))
