CT196

Toyota CALDINA · 1992 · 4,992 parts · 278 categories
CT196 ×

← Back to categories

4,992 items

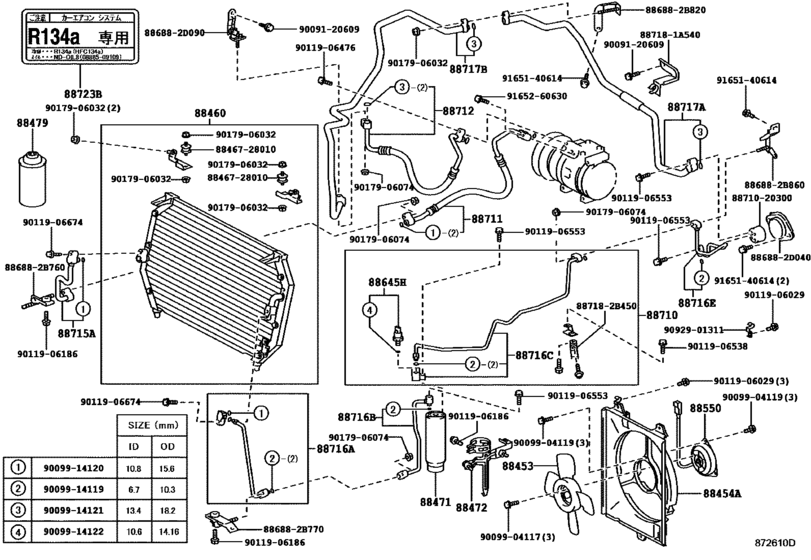

Heating & Air Conditioning - Cooler Piping ([11.1992 - 01.1996] (9211-9601)CT19#) 74
#OEMPart name
88453 16361-74100 Fan
88453 16361-74110 Fan
88453 88453-20090 Fan, Rh
88454 16712-64170 Shroud, Fan
88454 88454-20121 Shroud, Fan
88454 88454-20122 Shroud, Fan
88460 88460-20380 Condenser Assy, Cooler
88460 88460-20530 Condenser Assy, Cooler
88471 88471-20050 Receiver & Dryer Assy, Cooler
88471 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-20140 Bracket, Receiver Tank, No.1
88472 88472-20200 Bracket, Receiver Tank, No.1
88479 90986-02007 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88550 16363-11030 Motor, Cooling Fan
88550 16363-64070 Motor, Cooling Fan, No.2
88645 88645-20050 Switch, Pressure
88710 88710-20240 Tube Assy, Air Conditioner
88711 88711-20880 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-21080 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-21050 Hose, Cooler Refrigerant Suction, No.1
88712 88712-2B230 Hose, Cooler Refrigerant Suction, No.1
88715 88715-20120 Pipe, Cooler Refrigerant Discharge, A
88715 88715-20170 Pipe, Cooler Refrigerant Discharge, A
88716 88716-2D140 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2D490 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2D150 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2D151 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2D210 Pipe, Cooler Refrigerant Liquid, C
88716 88716-2D170 Pipe, Cooler Refrigerant Liquid, E
88716 88716-2D480 Pipe, Cooler Refrigerant Liquid, E
88717 88717-21010 Pipe, Cooler Refrigerant Suction, A
88717 88717-2B290 Pipe, Cooler Refrigerant Suction, A
88717 88717-2B200 Pipe, Cooler Refrigerant Suction, B
88717 88717-2B201 Pipe, Cooler Refrigerant Suction, B
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
886882 88688-2B760 Bracket, Cooler Diaphragm
886882 88469-28010 Collar, Condenser Bracket, No.1
886882 88688-2D060 Bracket, Cooler Diaphragm
886882 90099-32130 Grommet (For Power Take-Off Cable Bracket)
886882 88688-2B770 Bracket, Cooler Diaphragm
886882 88688-2B820 Bracket, Cooler Diaphragm
886882 88688-2B860 Bracket, Cooler Diaphragm
886882 88688-2D040 Bracket, Cooler Diaphragm
886882 88688-2D090 Bracket, Cooler Diaphragm
887181 88718-1A540 Clamp(For Cooler Refrigerant Hose), No.1
887182 88718-2B450 Pipe, Cooler Refrigerant Suction, No.2
8846728010 88467-28010 Cushion, Cooler Condenser, No.1
8871020300 88710-20300 Tube Assy, Airconditioner
9009120609 90091-20609 BOLT
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009904119 90099-04119 BOLT WASHER HEAD
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
9011906029 90119-06029 New Genuine Part
9011906029 91651-G0616 BOLT WWASHER
9011906186 90119-06186 BOLT
9011906186 90119-06420 BOLT WWASHER
9011906476 90119-06476 New Genuine Part
9011906476 91652-60630 New Genuine Part
9011906538 90119-06538 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9011906538 91611-G0612 Bolt
9011906553 90119-06553 New Genuine Part
9011906553 91651-F0625 BOLT WWASHER
9011906674 90119-06674 New Genuine Part
9011906674 91651-G0645 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906074 90179-06074 Nut(For Suspension Control Oil Cooler)
9092901311 90929-01311 New Genuine Part
9165140614 91651-40614 Bolt
