CT190

Toyota CALDINA · 1992 · 4,080 parts · 200 categories

4,080 items

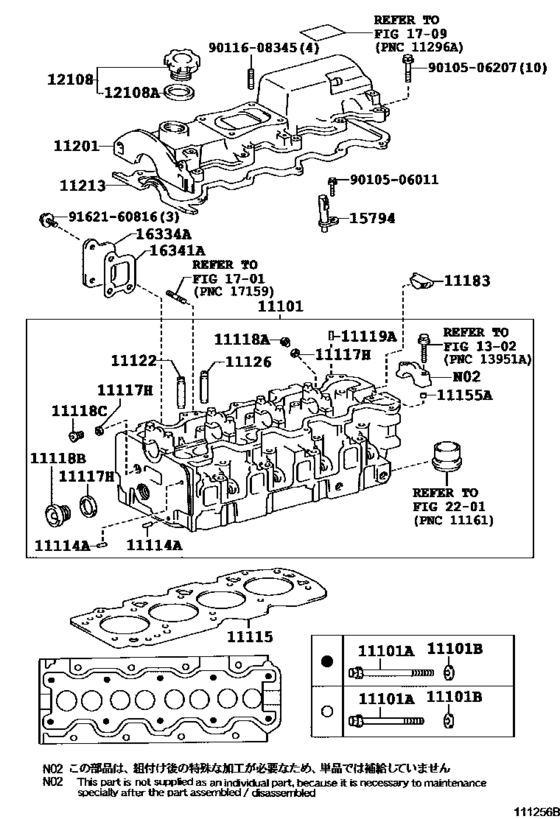

Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#) 42

#	OEM	Part name
11101	11101-64250	Head Sub-Assy, Cylinder
11101	11101-64253	Head Sub-Assy, Cylinder
11101	90201-22010	Washer, Plate(For Valve Spring Seat)
11101	11176-64020	Seat, Injection Nozzle
11101	11101-64251	Head Sub-Assy, Cylinder
11101	11101-64252	Head Sub-Assy, Cylinder
11101	90910-02097	Bolt(For Cylinder Head Set)
11101	90910-02099	Bolt(For Cylinder Head Set)
11101	90201-12222	Washer, Plate(For Cylinder Head Set)
11114	90250-06068	Pin, Straight
11115	11115-64140	Gasket, Cylinder Head
11115	11115-64141-02	Gasket, Cylinder Head
11117	90430-10204	Gasket(For Water Hole)
11117	90430-12010	Gasket(For Water Hole)
11117	90430-33133	Gasket(For Cylinder Head Screw Plug)
11118	90341-10005	Plug, Straight, No.1
11118	90341-32070	Plug, W/head Taper Screw, No.1
11118	90341-12013	Plug, Straight, No.2
11119	90250-06013	Pin, Straight, No.1
11122	11122-64010	Bush, Intake Valve Guide
11122	11123-64010	Bush, Intake Valve Guide
11126	11126-64010	Bush, Exhaust Valve Guide
11126	11126-64030	Bush, Exhaust Valve Guide
11126	11127-64010	Bush, Exhaust Valve Guide
11126	11127-64030	Bush, Exhaust Valve Guide
11155	90253-11021	Pin, Ring
11183	11183-64010	Plug, Semicircular
11201	11201-64140	Cover Sub-Assy, Cylinder Head
11201	11201-64141	Cover Sub-Assy, Cylinder Head
11213	11213-64060	Gasket, Cylinder Head Cover
11213	11213-64061	Gasket, Cylinder Head Cover
12108	12180-55010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
15794	15794-64011	Nozzle, Cylinder Head Oil
16334	16334-64010	Cover, Water Outlet Housing
16341	16341-64030	Gasket, Water Outlet
16341	16341-64021	Gasket, Water Outlet
9010506011	90105-06011	BOLT
9010506207	90105-06207	New Genuine Part
9011608345	90116-08345	New Genuine Part
9162160816	91621-60816	New Genuine Part
9162160816	91621-B0816	BOLT WWASHER

OEM	Part name	Category
11101-64250	Head Sub-Assy, Cylinder	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11101-64251	Head Sub-Assy, Cylinder	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11101-64252	Head Sub-Assy, Cylinder	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11101-64253	Head Sub-Assy, Cylinder	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11115-64140	Gasket, Cylinder Head	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11115-64141-02	Gasket, Cylinder Head	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11122-64010	Bush, Intake Valve Guide	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11123-64010	Bush, Intake Valve Guide	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11126-64010	Bush, Exhaust Valve Guide	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11126-64030	Bush, Exhaust Valve Guide	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11127-64010	Bush, Exhaust Valve Guide	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11127-64030	Bush, Exhaust Valve Guide	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11176-64020	Seat, Injection Nozzle	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11183-64010	Plug, Semicircular	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11201-64140	Cover Sub-Assy, Cylinder Head	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11201-64141	Cover Sub-Assy, Cylinder Head	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11213-64060	Gasket, Cylinder Head Cover	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
11213-64061	Gasket, Cylinder Head Cover	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
12180-55010	Cap Sub-Assy, Oil Filler	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
15794-64011	Nozzle, Cylinder Head Oil	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
16334-64010	Cover, Water Outlet Housing	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
16341-64021	Gasket, Water Outlet	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
16341-64030	Gasket, Water Outlet	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90105-06011	BOLT	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90105-06207	New Genuine Part	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90116-08345	New Genuine Part	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90201-12222	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90201-22010	Washer, Plate(For Valve Spring Seat)	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90250-06013	Pin, Straight, No.1	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90250-06068	Pin, Straight	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90253-11021	Pin, Ring	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90341-10005	Plug, Straight, No.1	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90341-12013	Plug, Straight, No.2	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90341-32070	Plug, W/head Taper Screw, No.1	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90430-10204	Gasket(For Water Hole)	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90430-12010	Gasket(For Water Hole)	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90430-33133	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90910-02097	Bolt(For Cylinder Head Set)	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
90910-02099	Bolt(For Cylinder Head Set)	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
91621-60816	New Genuine Part	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
91621-B0816	BOLT WWASHER	Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#)
