CT177

Toyota CORONA · 1987 · 2,841 parts · 101 categories

← Back to categories

2,841 items

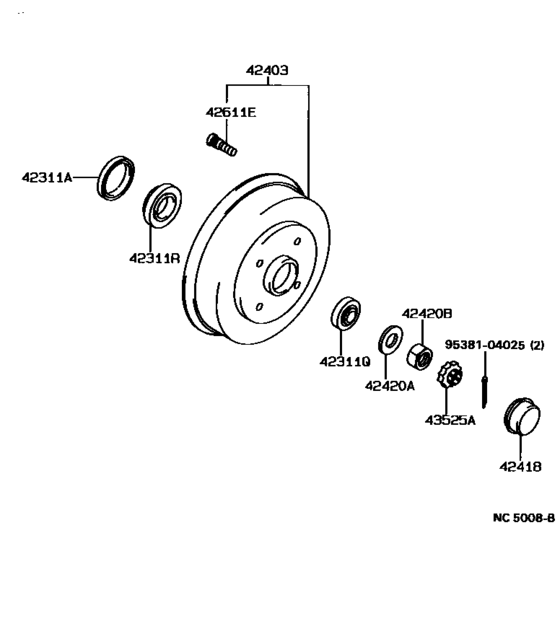

Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177) 11

#	OEM	Part name
42311	90311-48001	Seal, Oil (For Axle Shaft)
42311	90368-22001	Bearing (For Rear Axle Shaft Outer)
42311	90368-35004	Bearing (For Rear Axle Shaft Inner)
42403	42403-20040	Drum Sub-Assy, Rear Brake
42418	42418-13010	Cap, Rear Hub Grease
42418	42418-13011	Cap, Rear Hub Grease
42420	90214-20005	Washer, Claw (For Axle Shaft)
42420	90170-19185	Nut (For Axle Shaft)
42611	90942-02047	Bolt, Hub
43525	43525-22010	Cap, Front Wheel Adjusting Lock
9538104025	95381-04025	PIN

OEM	Part name	Category
42403-20040	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
42418-13010	Cap, Rear Hub Grease	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
42418-13011	Cap, Rear Hub Grease	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
43525-22010	Cap, Front Wheel Adjusting Lock	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
90170-19185	Nut (For Axle Shaft)	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
90214-20005	Washer, Claw (For Axle Shaft)	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
90311-48001	Seal, Oil (For Axle Shaft)	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
90368-22001	Bearing (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
90368-35004	Bearing (For Rear Axle Shaft Inner)	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)
95381-04025	PIN	Rear Axle Shaft & Hub ([12.1987 - ] (8712- )AT177,CT177)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 101
Collected: 2026-08-02
